Right Side

Removal
1. Raise the vehicle.
2. Separate the exhaust at the exhaust manifold.
3. Disconnect the exhaust gas recirculation tube at the exhaust manifold connector.

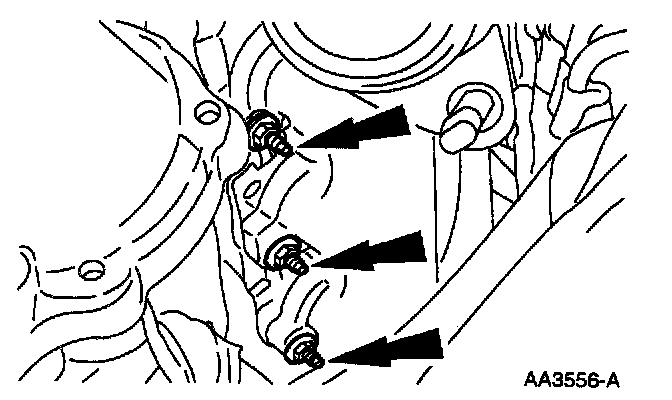

4. Remove the eight nuts.
^ Remove the exhaust manifold.
^ Remove the gasket.

Installation





1. Follow the removal procedure in reverse order.
