Catalytic Converter: Service and Repair

Removal

1. Raise and support the vehicle.

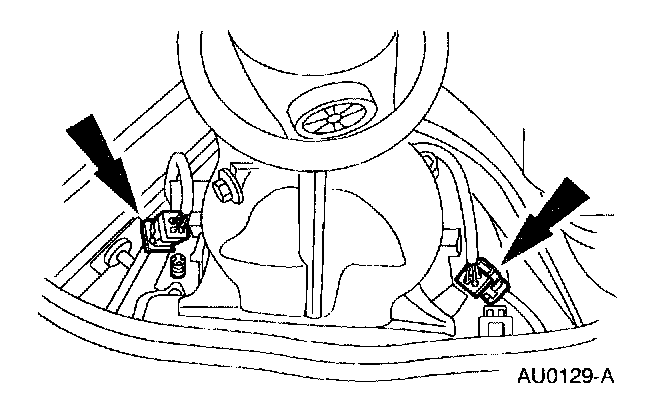

2. Disconnect the oxygen sensor connectors.

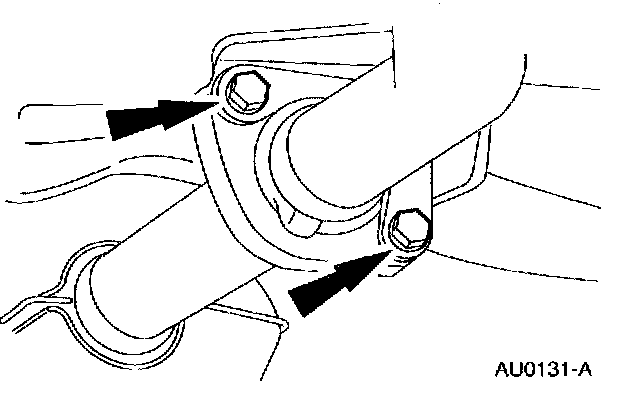

3. Remove the two nuts.





4. Remove the Three Way Catalytic Converter (TWC).

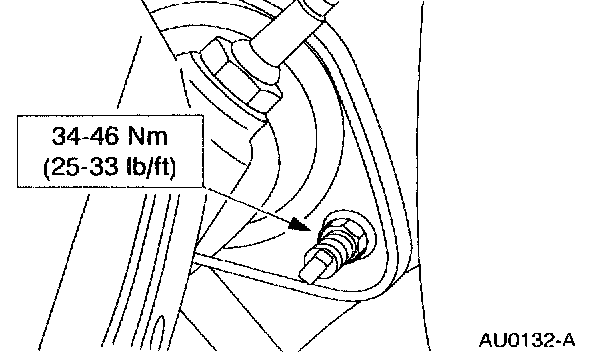

^ Remove the nuts, bolts, damper and gasket.
^ Remove the TWC.

Installation

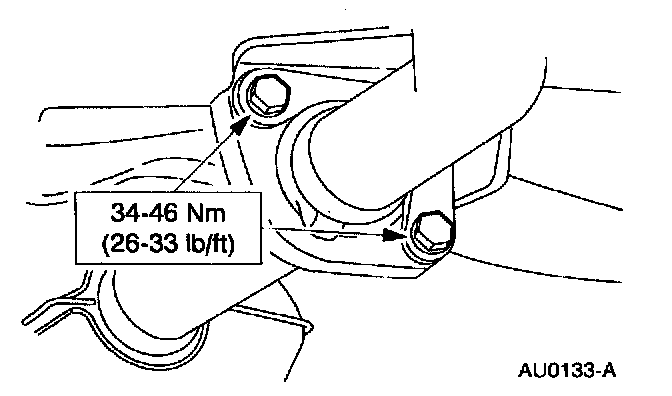

1. Position the three way catalytic converters and install the two nuts.

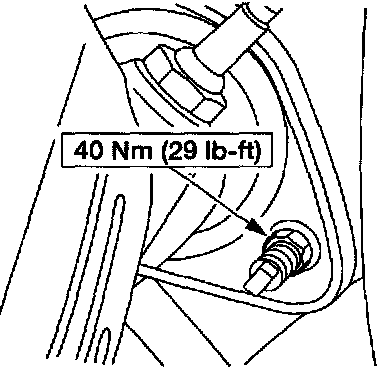

2. Install a new gasket, bolts, nuts and damper.
3. Connect the heated oxygen sensor connectors.
4. Lower the vehicle.
