Runout

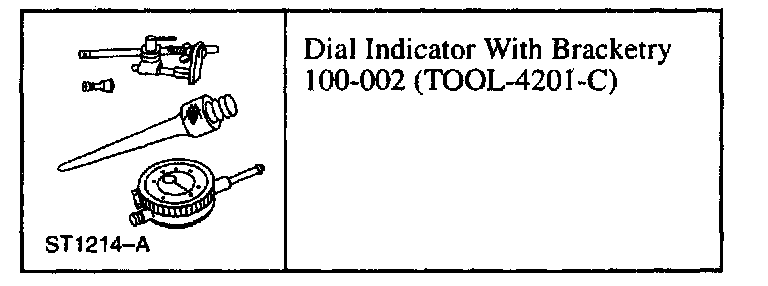

Special Tools:

1. NOTE: Camshaft journals must be within specifications before checking runout.

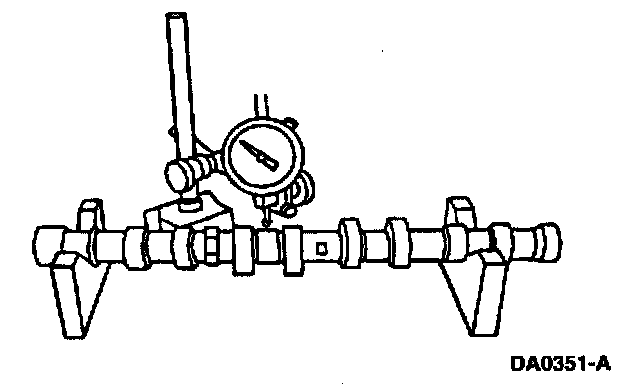

^ Use a Dial Indicator with Bracketry to measure the camshaft runout.
^ Rotate the camshaft and subtract the lowest indicator reading from the highest indicator reading.
^ If it is out of specification, replace as necessary.
