Clearance - Plastigage Method

Special Tools:

NOTE: The camshaft journals must meet specifications before checking camshaft journal clearance.

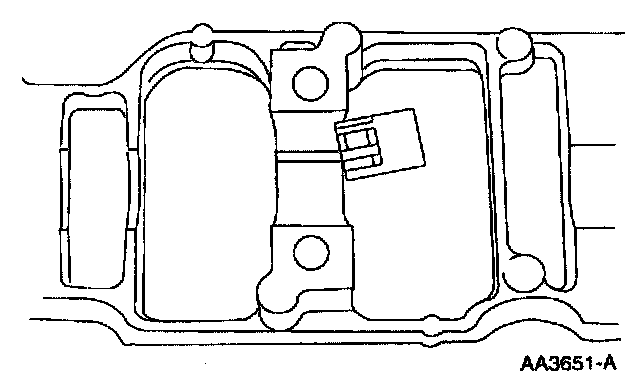

1. Remove the camshaft bearing cap and lay plastigage across the surface.





2. NOTE: Do not turn the camshaft while doing this procedure.

Position the camshaft bearing cap and install the bolts.
3. Use Plastigage to verify the camshaft journal clearance. If it is out of specification, replace as necessary.
