Large End Bore

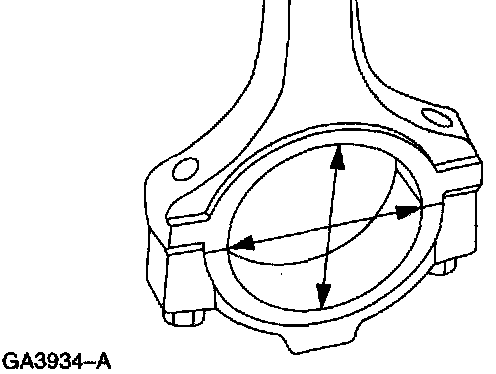

1. Measure the bore in two directions. The difference is the connecting rod bore out-of-round. Verify the out-of-round is within specification.
^ If out of specification, replace as necessary.
