Connecting Rod Journal Taper, Out of Round

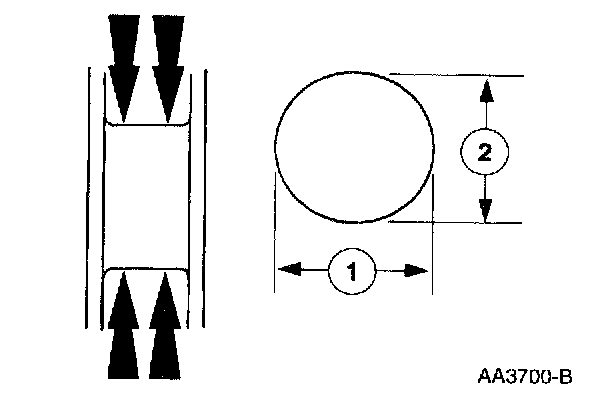

1. Measure the crankshaft connecting rod journal diameters in two directions perpendicular to one another at each end of the connecting rod journal. The difference in the measurements from one end to the other is the taper. Verify measurement is within the wear limit.
^ If it is out of specification, replace as necessary.
