Front Crankshaft Seal: Service and Repair

Removal

1. Remove the crankshaft pulley.

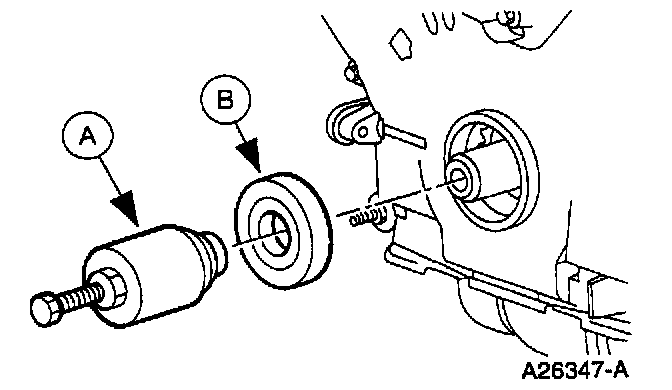

2. Use the (A) Front Cover Seal Remover to remove the (B) front cover seal.

Installation

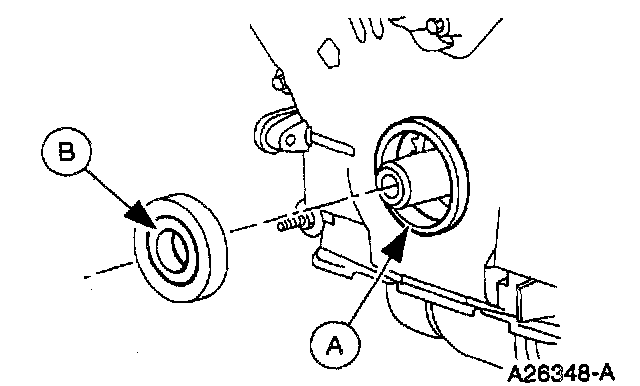

1. Lubricate the (A) engine front cover and the (B) front oil seal inner lip.
Use Ford Super Premium SAE 5W30 Motor Oil XO-5W30-QSP or equivalent meeting Ford specification WSS-M2C153-G.

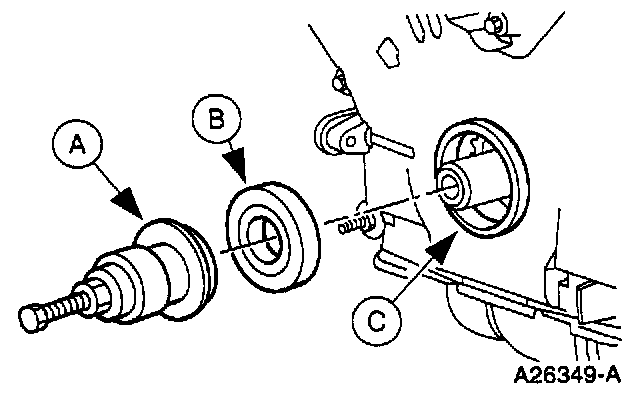

2. Use the (A) Crankshaft Seal Replacer/Cover Aligner to install the (B) crankshaft front seal into the (C) engine front cover.
3. Install the crankshaft pulley.
