Engine Oil Dip Stick - Dip Stick Tube: Service and Repair

Removal
1. Remove the exhaust manifold.

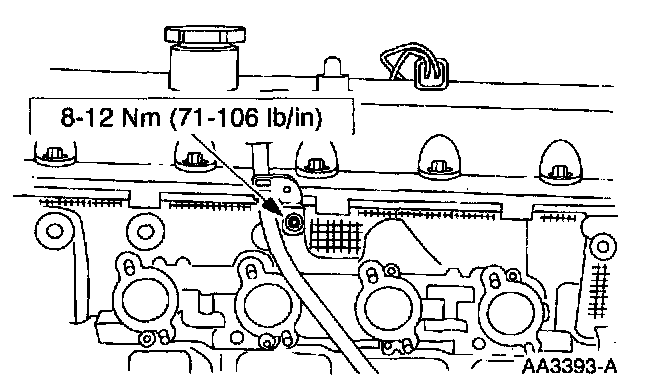

2. Remove the oil level indicator tube.
^ Remove the bolt.
^ Remove the tube.

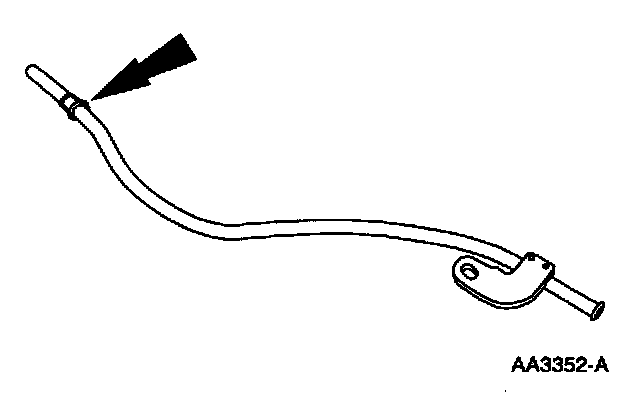

3. Inspect the O-ring.

Installation





1. Follow the removal procedure in reverse order.
