Drive Belt Tensioner: Service and Repair

Removal

1. Remove the drive belt.

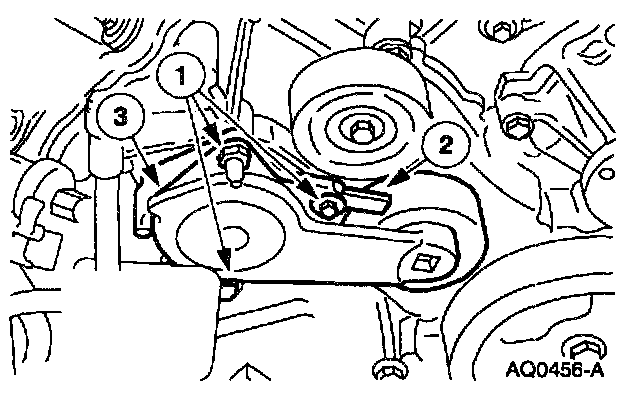

2. Remove the:
1 bolts.
2 belt guide.
3 drive belt tensioner.

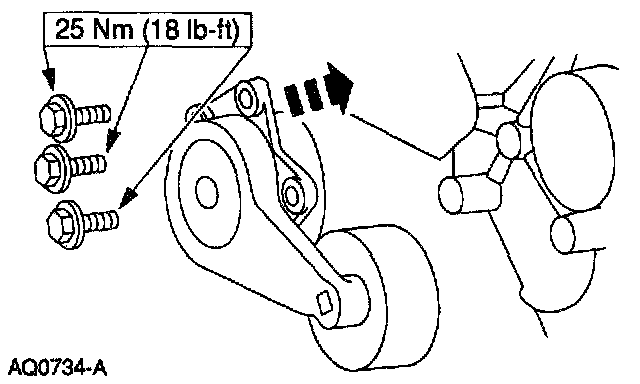

Installation





1. To install, reverse the removal procedure.
