Valve Spring: Service and Repair

Special Tools:

Removal
1. Remove the camshaft roller followers.





2. Position the piston at the top of the stroke.

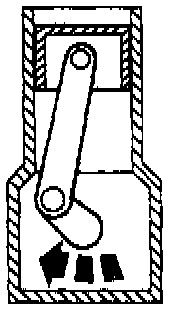

3. Remove the spark plug and install compressed air in the cylinder to hold both valves in position.





4. CAUTION: If air pressure has forced the piston to the bottom of the cylinder, any loss of air pressure will allow the valve to fall into the cylinder. If air pressure must be removed, support the valve prior to removal.

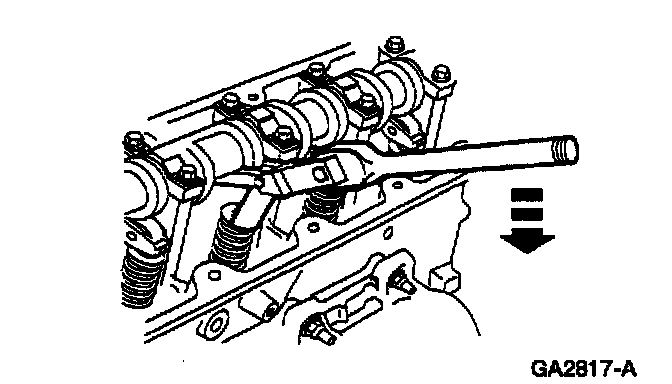

Use the Valve Spring Compressor to compress the valve springs.

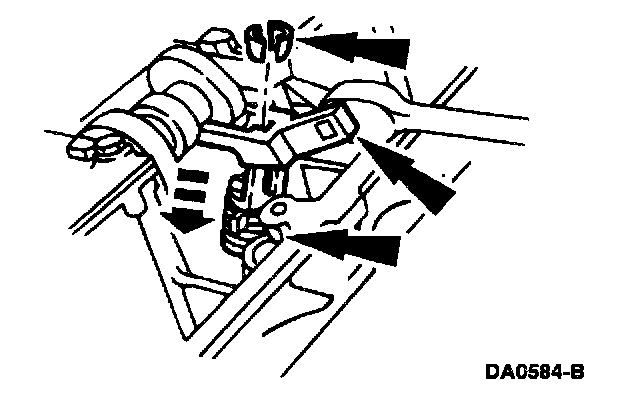

5. Remove the (A) valve spring retainer keys, the (B) valve spring retainers, and the (C) valve spring.

Installation





1. Position the valve spring and the valve spring retainers.

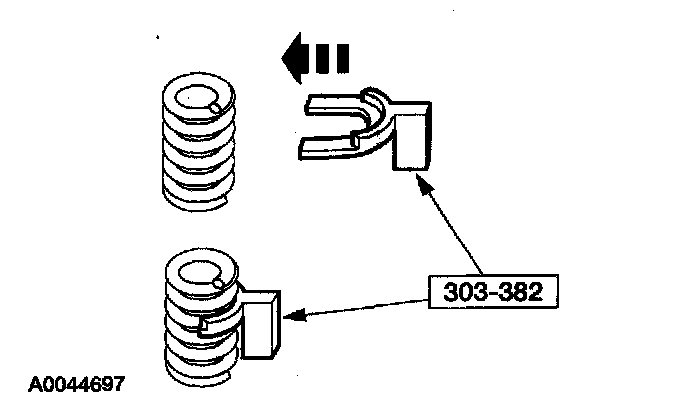

2. Install the Valve Spring Spacer between the valve spring coils to prevent valve stem seal damage.

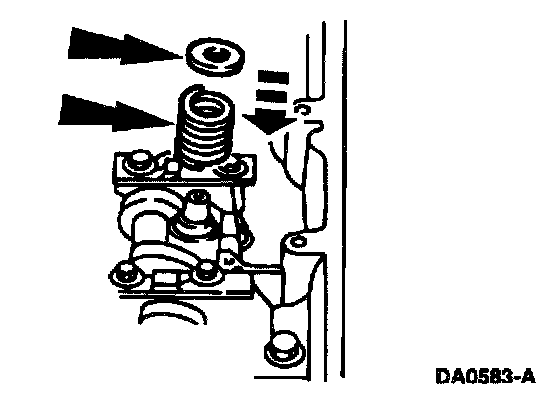

3. Use the Valve Spring Compressor to compress the valve spring. Install the valve spring retainer keys.
4. Install the camshaft roller followers.
