Right Side
Removal1. Raise the vehicle.

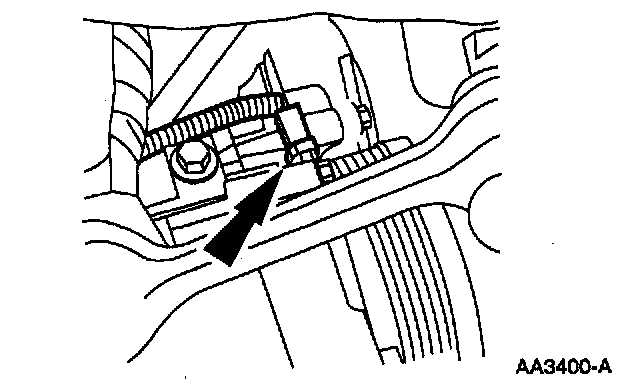

2. Disconnect the Crankshaft Position (CKP) Sensor electrical connector.

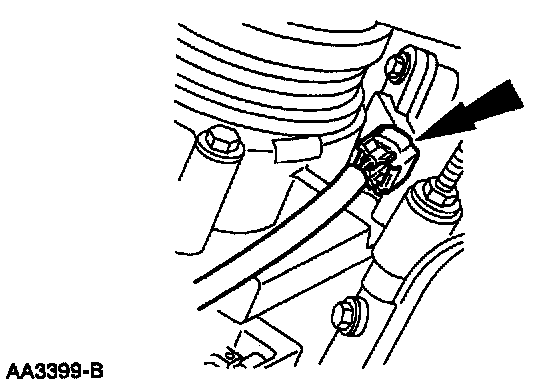

3. Disconnect the A/C compressor electrical connector.
4. Lower the vehicle.
5. Remove the evaporator case. Service and Repair

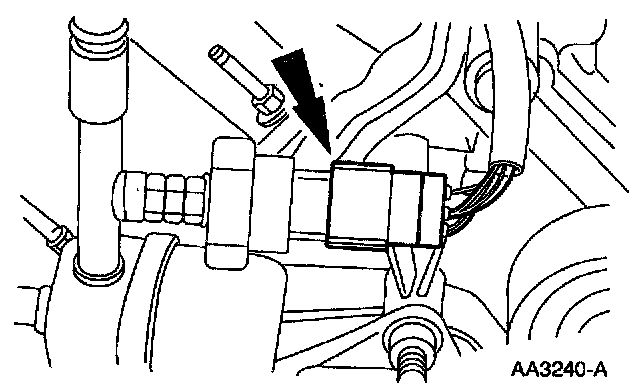

6. Disconnect the A/C cycling switch connector.
7. Disconnect the fuel lines.

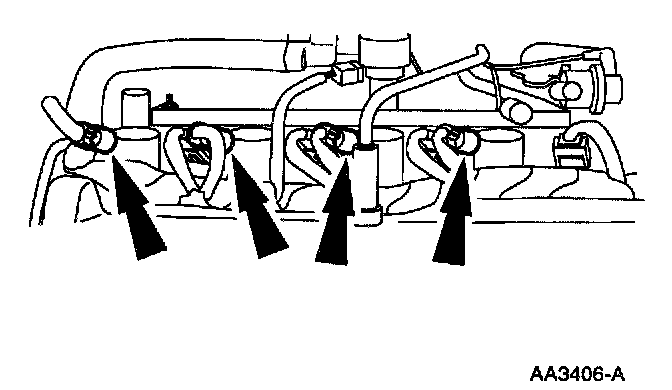

8. Disconnect the ignition coils electrical connectors.

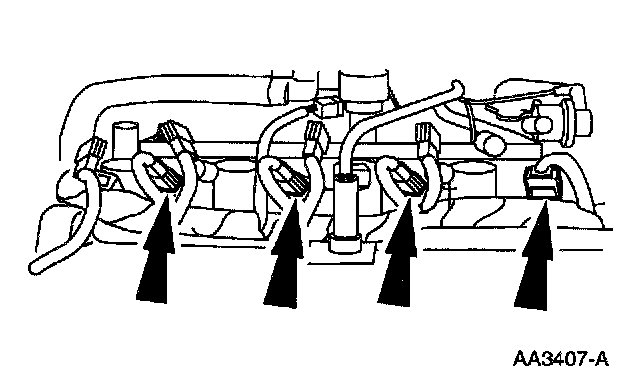

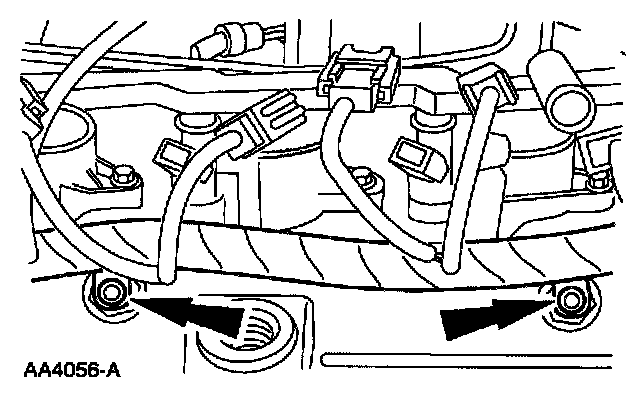

9. Disconnect the fuel injector electrical connectors.

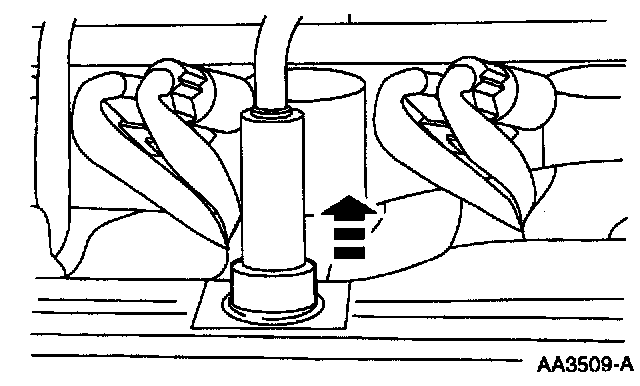

10. Remove the positive crankcase ventilation tube and position out of the way.

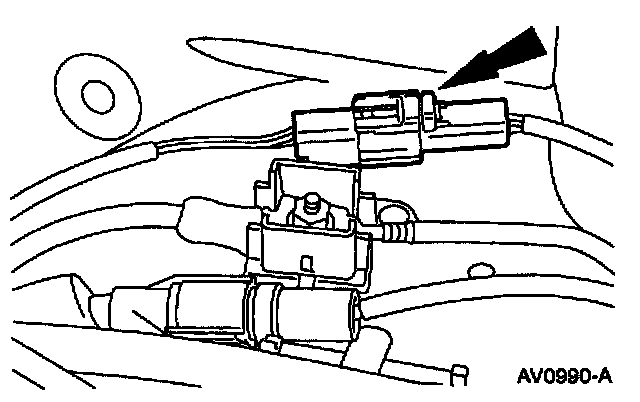

11. Disconnect the electrical connector.
12. Remove the Evaporative Emission (EVAP) Canister Purge Valve.

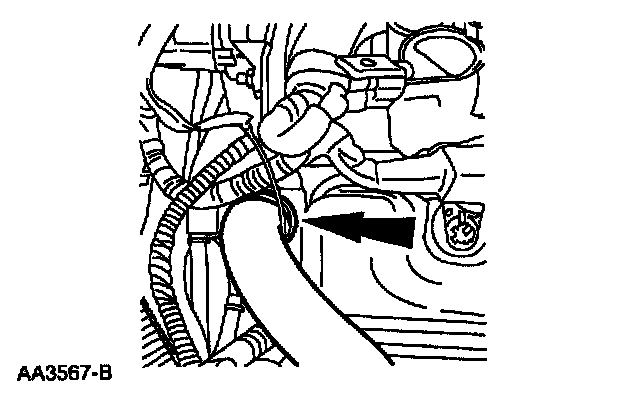

13. Reposition the hold-down clamp and remove the hose from the bypass tube.
14. NOTE: The valve cover harness retaining studs positions 2, and 3 retain the fuel charging wiring.
Disconnect the harness from the valve cover and position out of the way.
15. Disconnect the heater hoses from the heater core and position aside.
16. Remove the studs, the bolts and the valve cover.
Installation
1. Follow the removal procedure in reverse order.

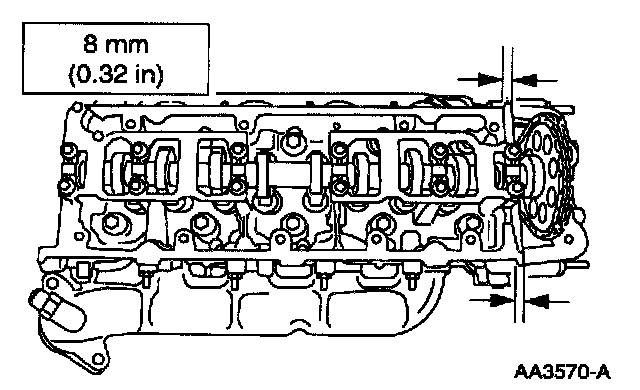

Apply sealant in the locations shown; use Silicone Gasket and Sealant F7AZ-M54-EA or equivalent meeting Ford specification WSK-M2G343-A4.

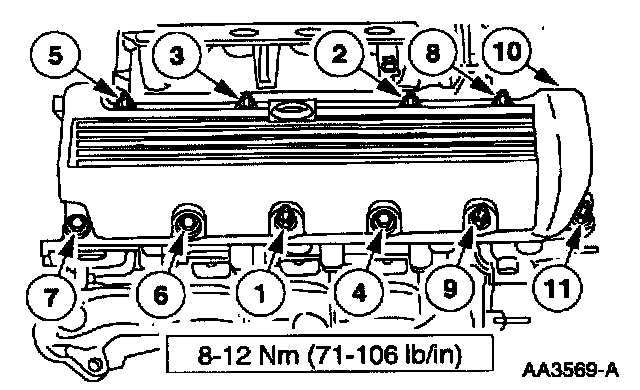

2. Tighten in the sequence shown.
