Left Side

Removal

1. Raise and support the vehicle.

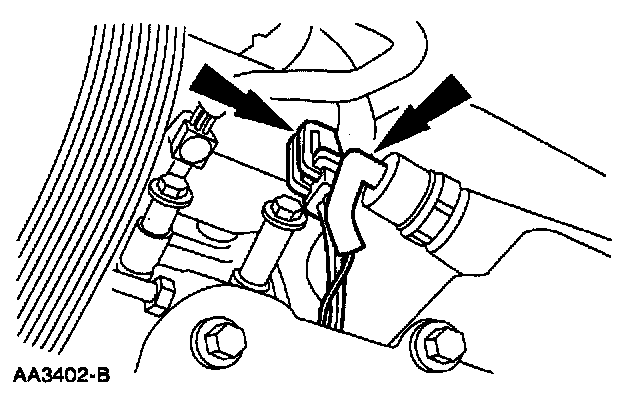

2. Disconnect the oil pressure sensor electrical connector.





3. Lower the vehicle.
4. Remove the brake booster assembly.

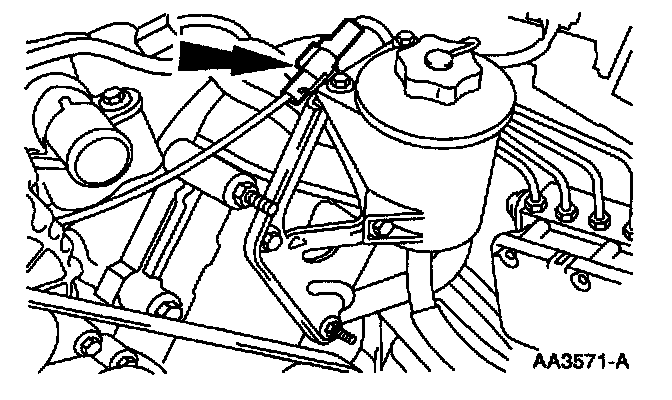

5. Disconnect the cylinder head temperature sensor jumper wire connector.

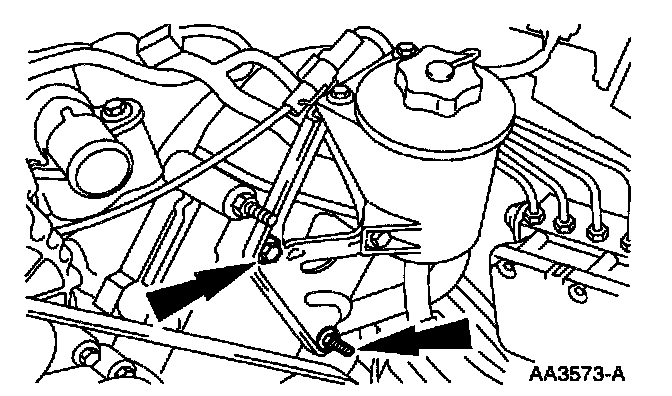

6. Remove the bolt and the two studs and position the bracket out of the way.

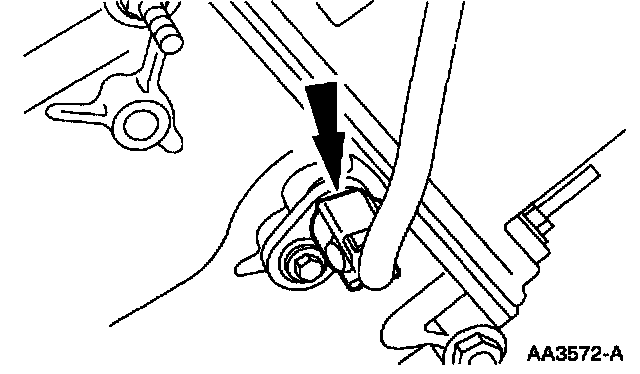

7. Disconnect the Camshaft Position (CMP) sensor electrical connector.

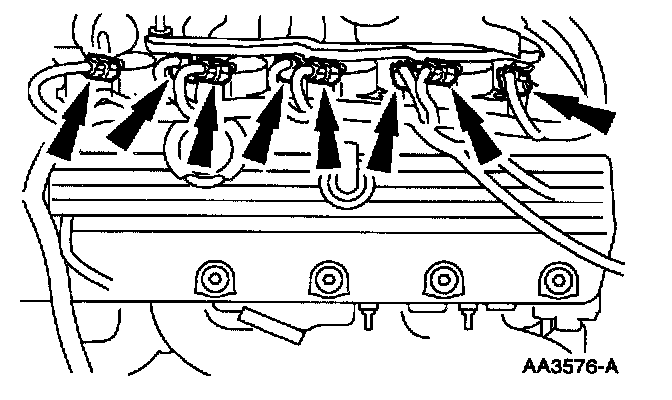

8. Disconnect the fuel charging wiring electrical connectors from the coils and the fuel injectors.

9. Remove the wiper and cowl.

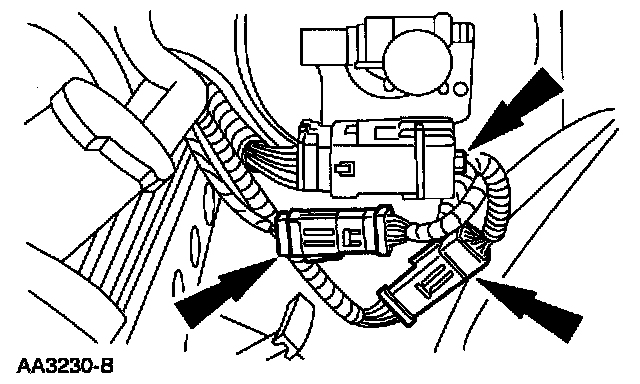

10. Disconnect the:
^ forty-two pin connector.
^ the sixteen-pin connector.
^ transmission electrical connector.

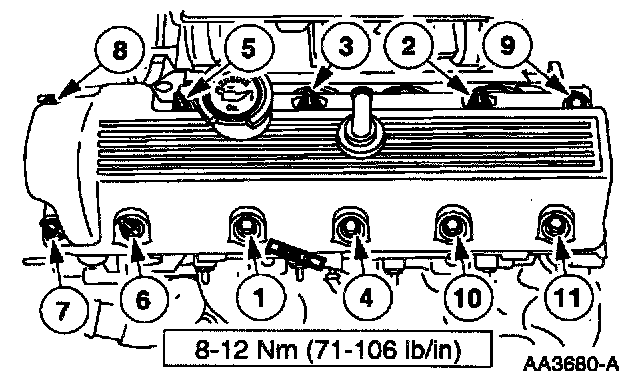

11. Remove the six bolts and five studs and remove the valve cover.


Installation








1. Follow the removal procedure in reverse order:

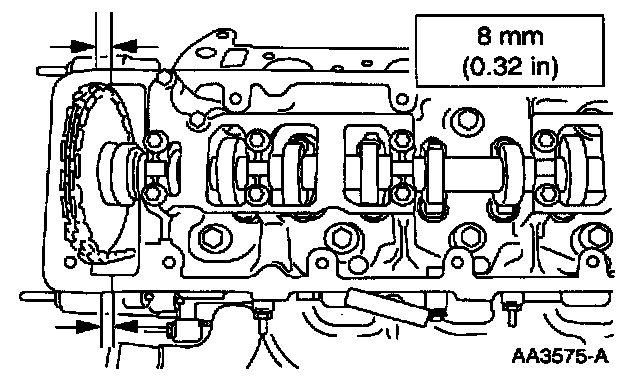

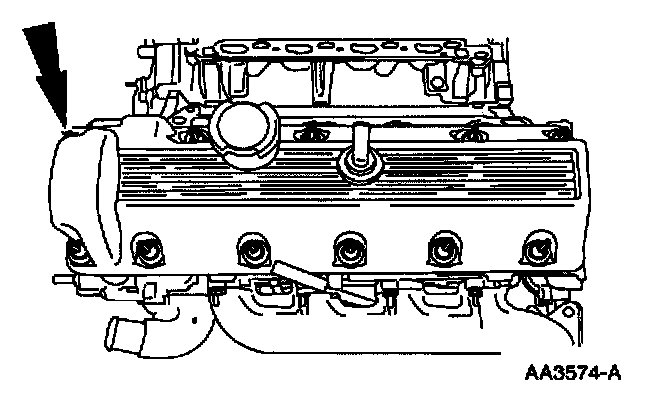

^ Apply sealant in the locations shown; use Silicone Gasket and Sealant F7AZ-19554-EA or equivalent meeting Ford specification WSK-M2G343-A4.
^ Refill and check the engine oil level.
