Rocker Arm Assembly: Service and Repair

Special Tools:

ROLLER FOLLOWERS

Removal

1. Remove the valve cover.

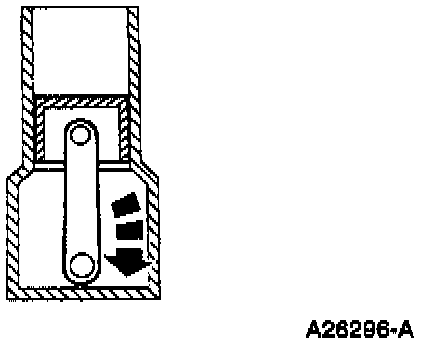

2. Position the piston of the cylinder being repaired at the bottom of the stroke.

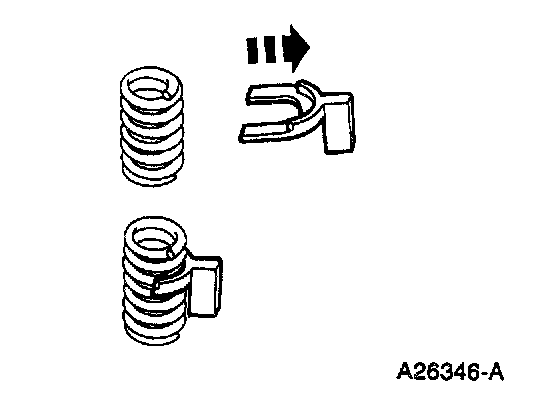

3. Install the Valve Spring Spacer between the valve spring coils to prevent valve stem seal damage.

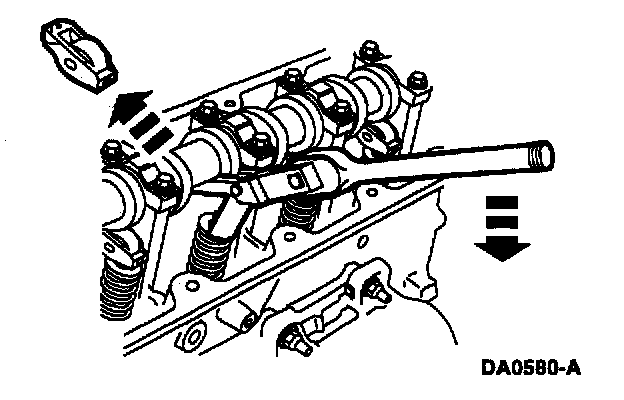

4. Use the Valve Spring Compressor to compress the valve springs and remove the cam roller followers.

Installation

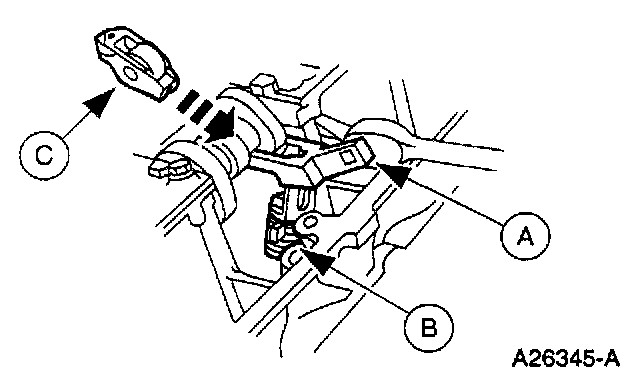

1. Use the (A) Valve Spring Compressor to compress the (B) valve spring and install the (C) camshaft roller followers.





2. Remove the Valve Spring Spacer.
3. Install the valve cover.
