Cooling System - Cooling Fan Motor Service Procedure: Overview

Article No.
03-2-6

03/02/03

^ ELECTRICAL - REVISED COOLING FAN MOTOR AVAILABLE

^ COOLING - REVISED COOLING FAN MOTOR AVAILABLE

FORD:
1998-2000 CROWN VICTORIA

MERCURY:
1998-2000 GRAND MARQUIS

Article 03-1-1 is being republished in its entirety to update the artwork figures.

ISSUE
When necessary to service the cooling tan assembly motor, service 1998-2000 model with later model cooling fan assembly motor and a wiring pigtail for compatibility.

ACTION
Use cooling fan assembly 1W7Z-8C607-AA to service Crown Victoria/Grand Marquis vehicles built 1998 Job 1 through April 4, 2000. Pigtail Connector F8AZ-14370-AA is required for compatibility. Follow Service Procedure.

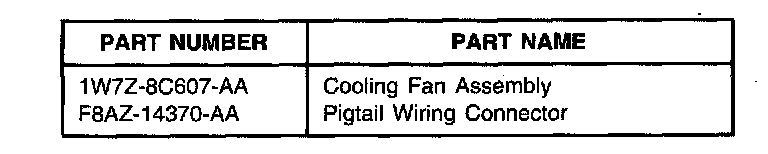

Parts Block

OTHER APPLICABLE ARTICLES: 01-10-12
SUPERSEDES: 03-1-1
WARRANTY STATUS: Eligible Under The Provisions Of Bumper To Bumper Warranty Coverage. Also Under the Provisions Of Emissions Warranty Coverage For 2000 Model Year Only

OPERATION DESCRIPTION TIME

030206A Replace Engine Cooling 0.9 Hr.
Fan And Install New
Wiring Connector

DEALER CODING
CONDITION
BASIC PART NO. CODE
8C607 42

OASIS CODES: 402000
