Radiator: Service and Repair

Removal

CAUTION: Do not mix standard (green) coolant with Extended Life Coolant (orange).

1. Raise the vehicle.
2. Drain the engine cooling system.
3. Remove the fan blade, fan motor and fan shroud assembly.

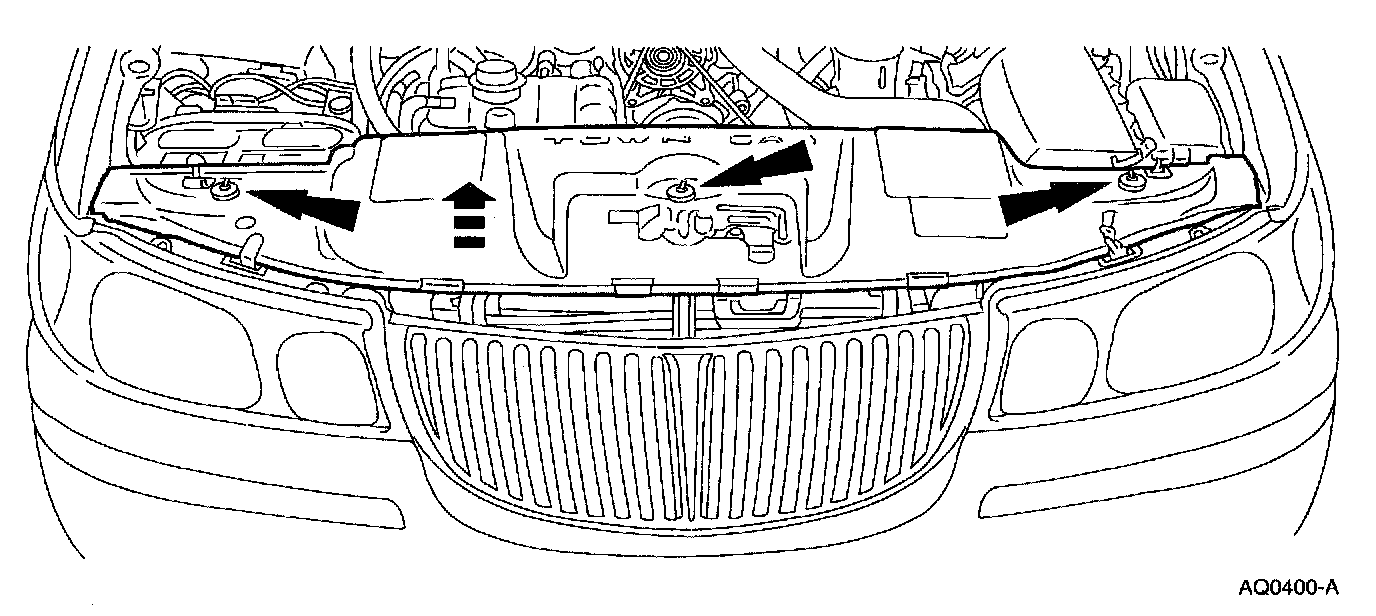

4. Release three hold downs and remove radiator sight shield.

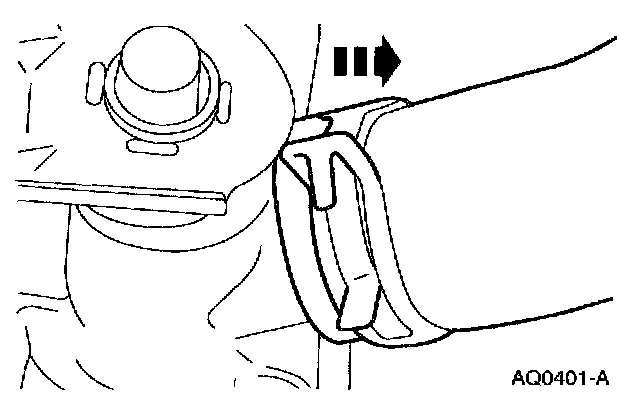

5. Remove the upper radiator hose from the radiator.





6. Remove the lower radiator hose from the radiator.

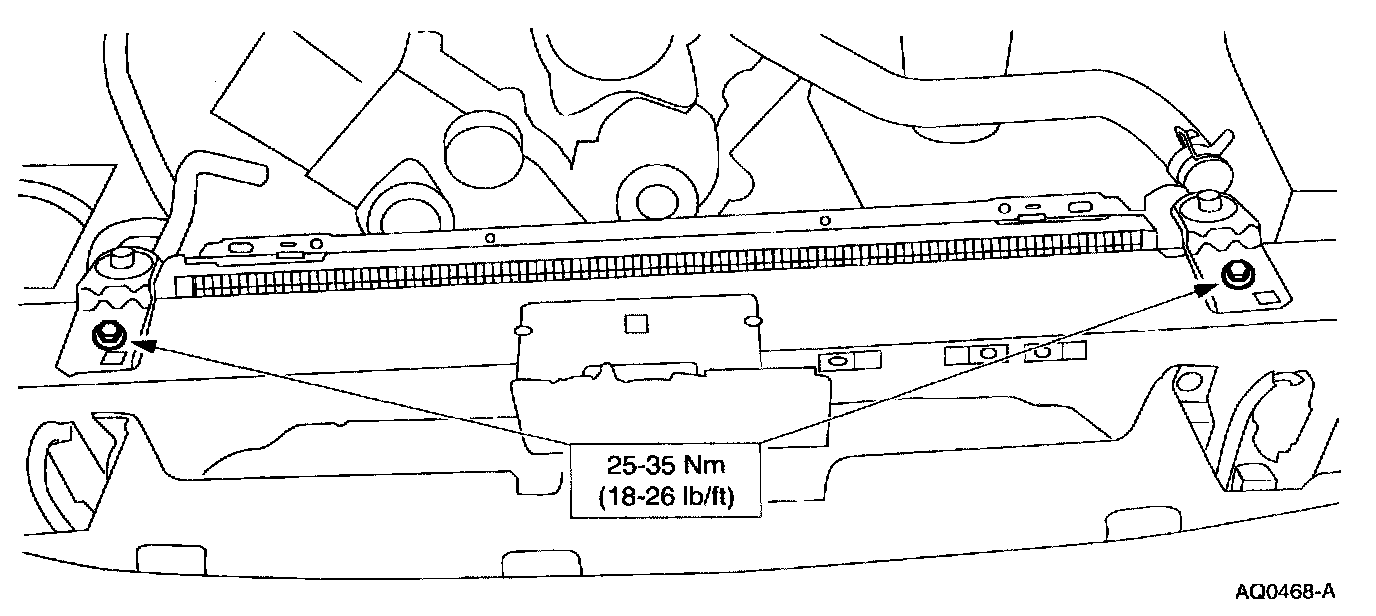

7. Remove the bolts and the radiator supports.

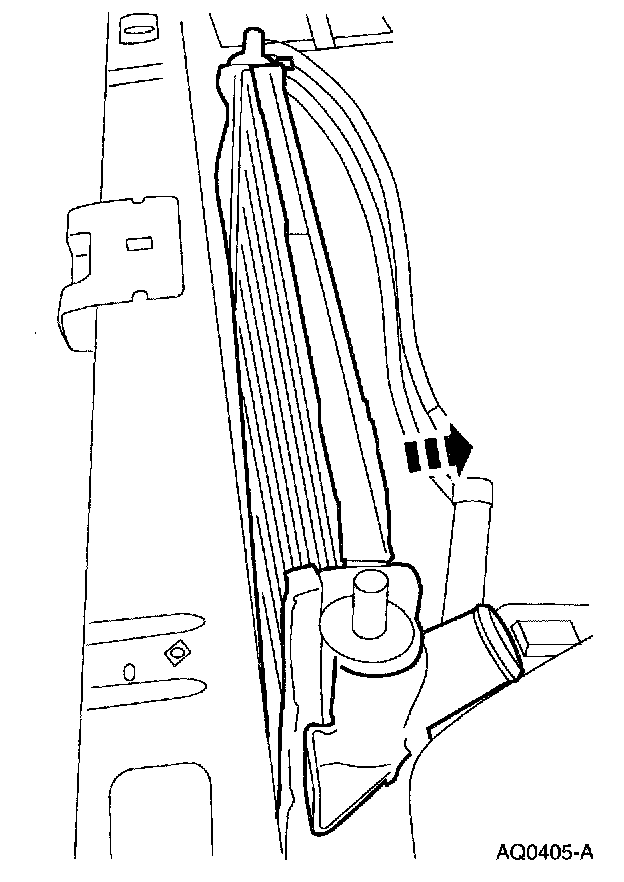

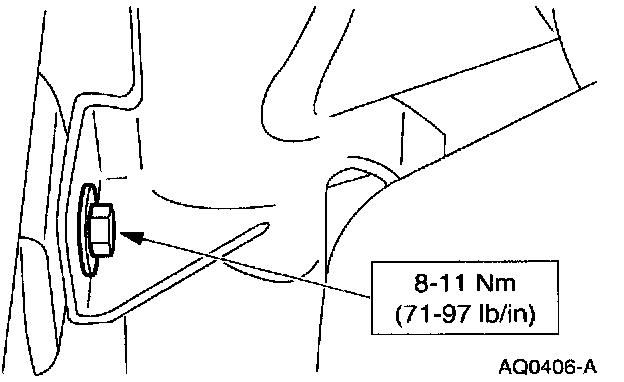

8. Remove the bolts and position the A/C condenser core and the transmission oil cooler away from the radiator.





9. Remove the radiator.

Installation





1. Follow the removal procedure in reverse order.





2. Fill the cooling system.
