Radiator Cooling Fan Motor: Service and Repair

Removal

CAUTION: Do not mix standard (green) coolant with Extended Life Coolant (orange).

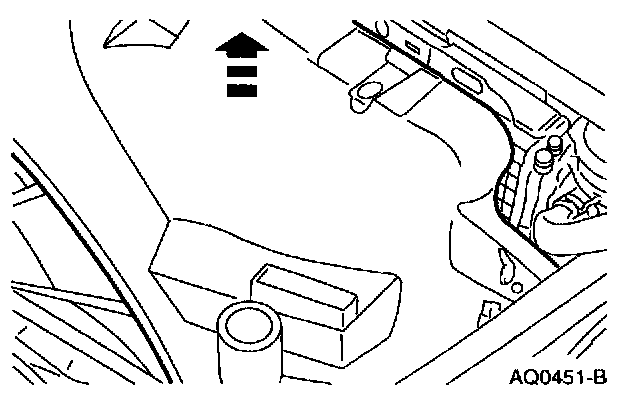

1. Remove the degas bottle.

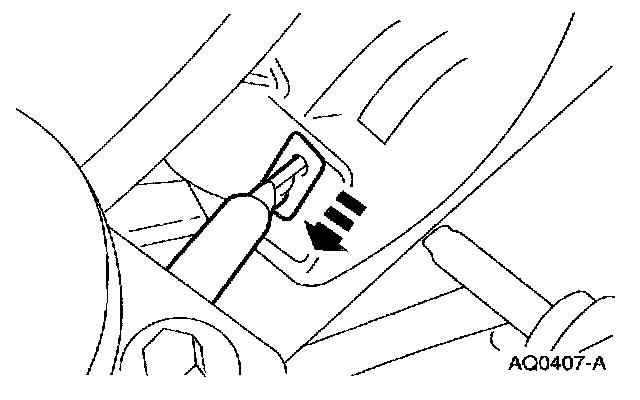

2. Disconnect the connector.

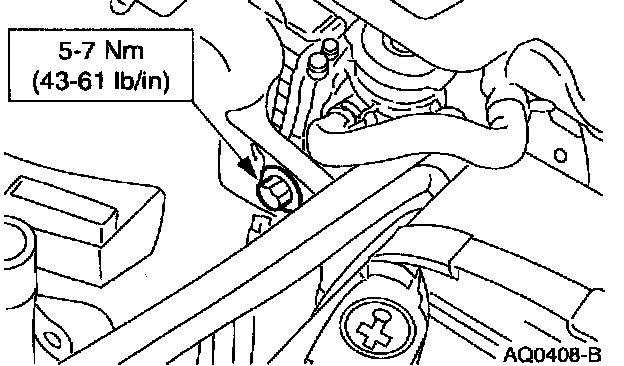

3. Remove the two bolts and the fan blade, fan motor and the fan shroud assembly.

Installation





1. Follow the removal procedure in reverse order.
