Coolant Reservoir: Service and Repair

Removal

CAUTION: Do not mix standard (green) coolant with Extended Life Coolant (orange).

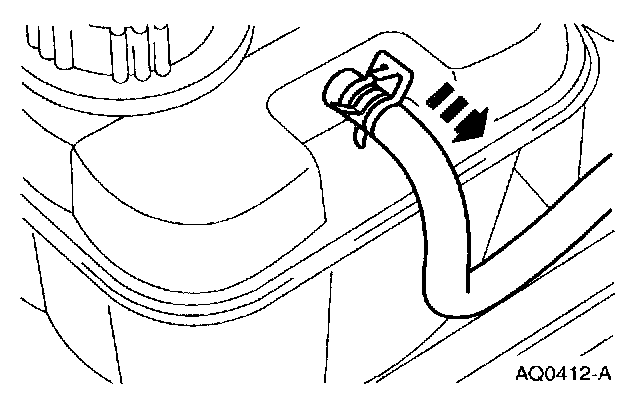

1. NOTE: Drain coolant from the degas bottle only. Remove the degas bottle supply hose.





2. Remove the overflow hose.

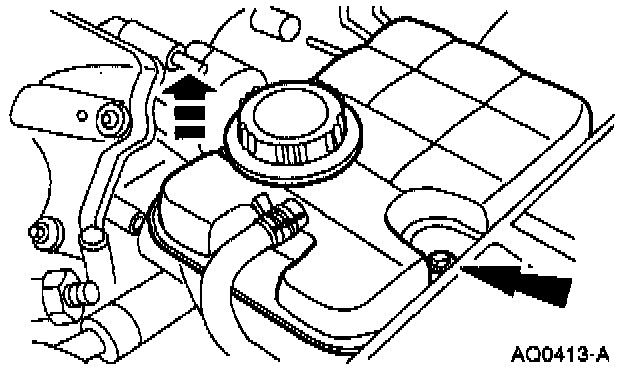

3. Remove the bolt and the degas bottle.

Installation





1. Follow the removal procedure in reverse order.
2. Fill the cooling system.
