Home >> Mercury >> 1999 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Timing Chain/Engine Oiling System

Timing Chain/Engine Oiling System

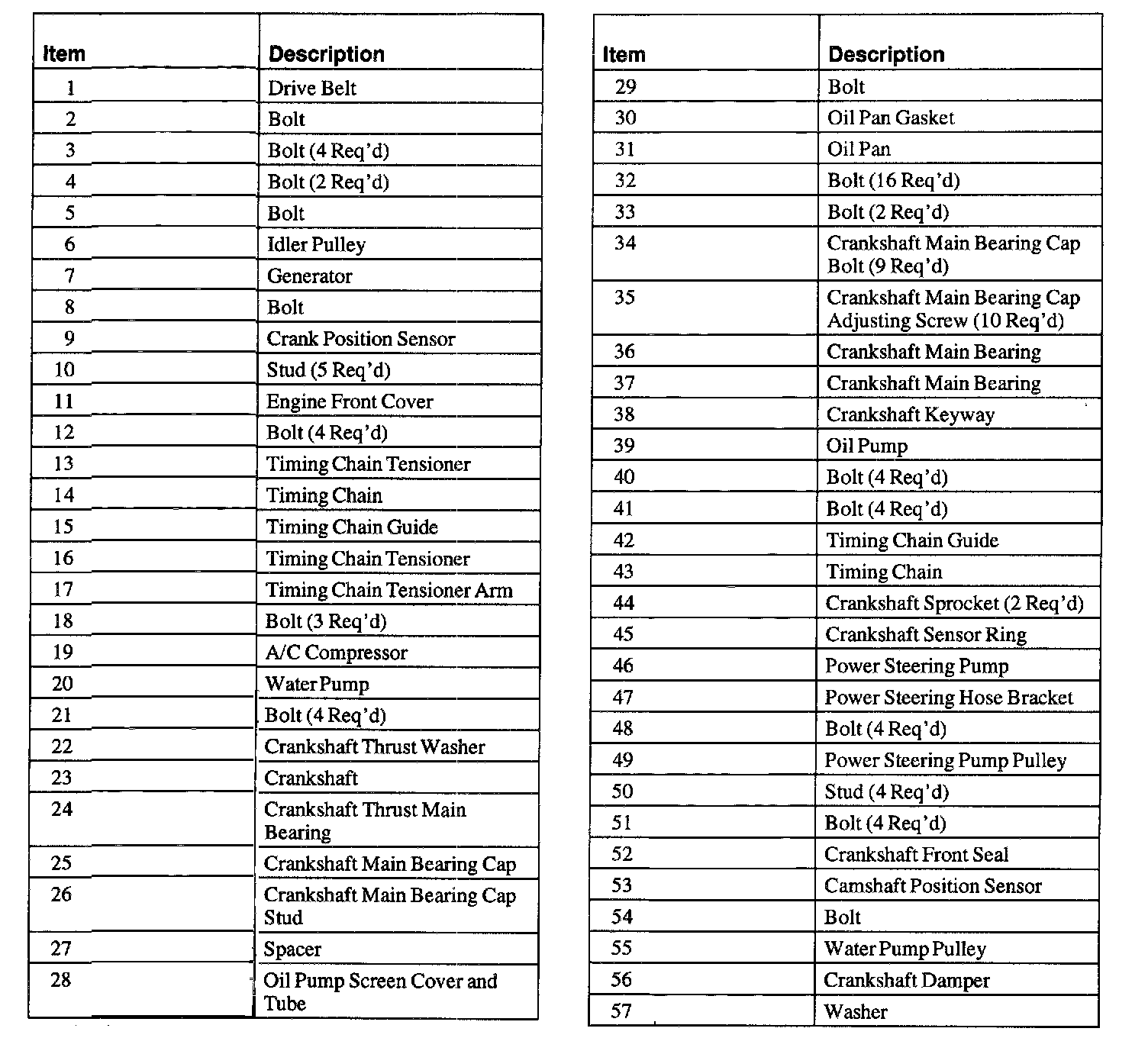

Part 1 Of 2:

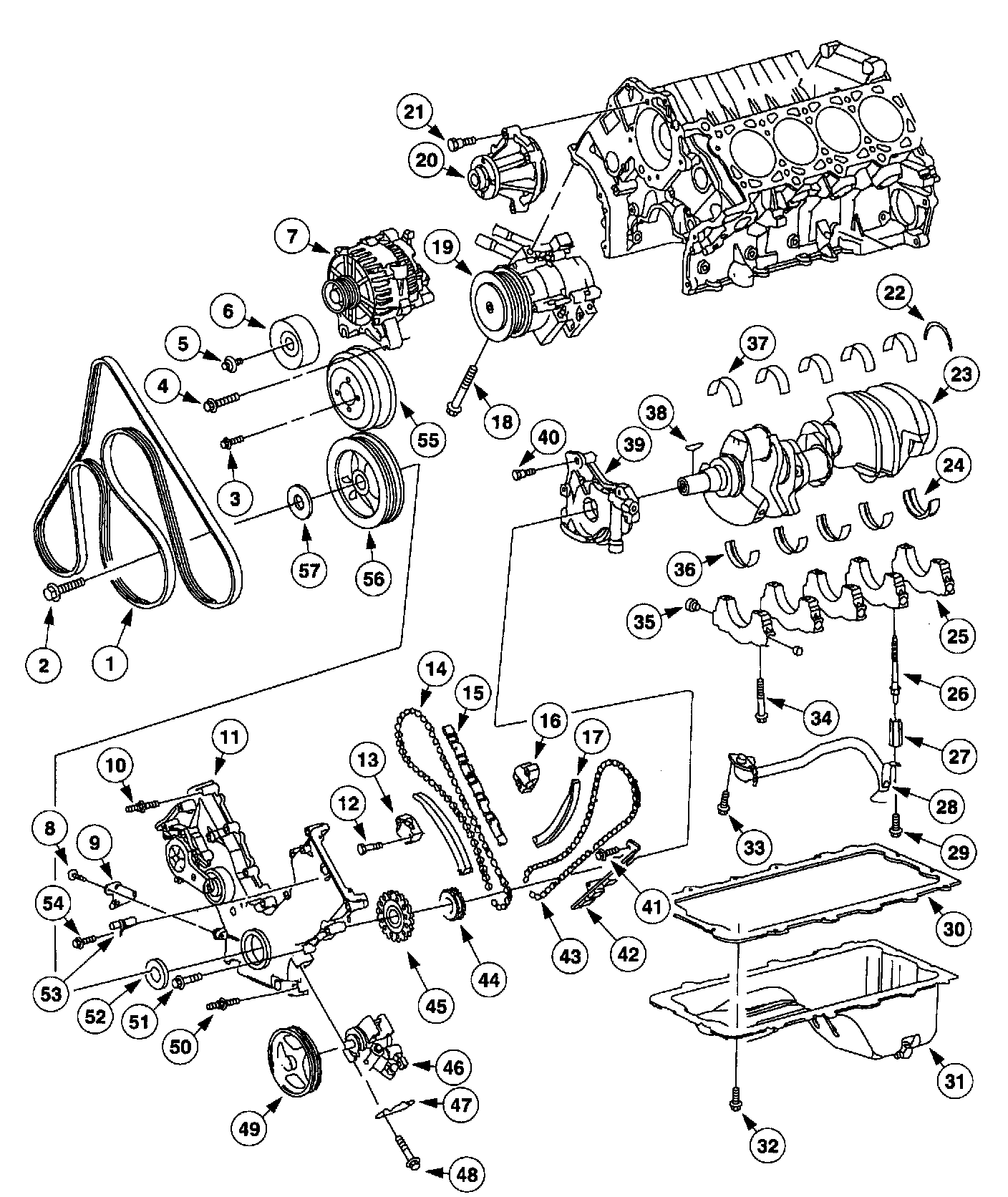

Part 2 Of 2:
