Ground Diagrams (By Component Name)

Diagram 10-1:

A/C High Pressure Cutout Switch
Battery
Crankshaft Position Sensor Shield
Fuel Rail Cutoff Solenoid
Mass Air Flow Sensor
Natural Gas Vehicle Module
Powertrain Control Module
Powertrain Control Module Power Relay
Relay Center

Diagram 10-2:

Battery Junction Box
Cooling Fan
High Current Relay Center
Police Power Relay
RF Park/Turn Lamp
RF Side Lamp
Right Cornering Lamp
Right Headlamp
Starter Motor Relay

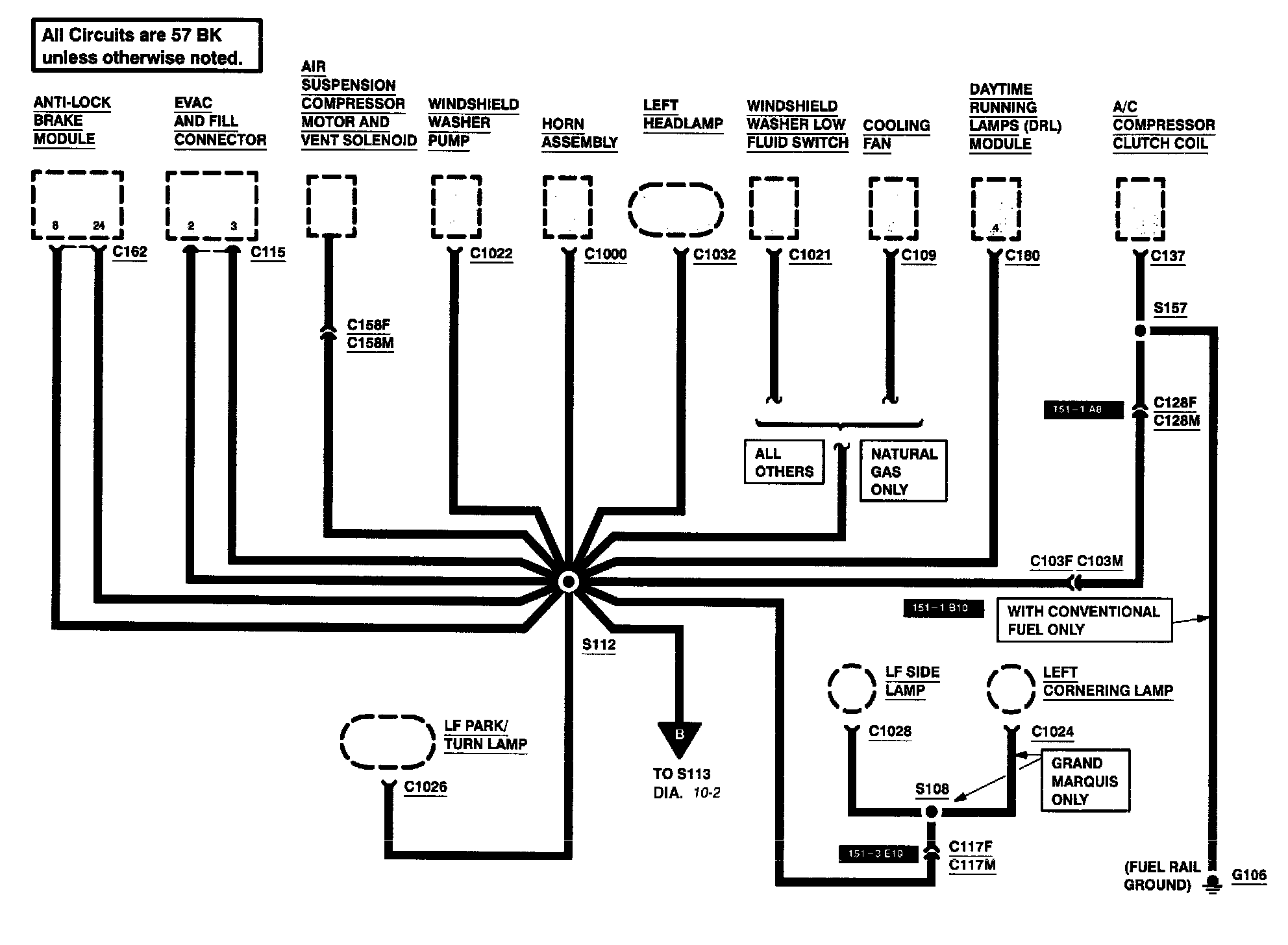

Diagram 10-3:

A/C Compressor Clutch Coil
Air Suspension Compressor Motor And Vent Solenoid
Anti-Lock Brake Module
Cooling Fan
Daytime Running Lamps Module
Evacuate And Fill Connector
Horn Assembly
Left Cornering Lamp
Left Headlamp
LF Park/Turn Lamp
LF Side Lamp
Windshield Washer Low Fluid Switch
Windshield Washer Pump

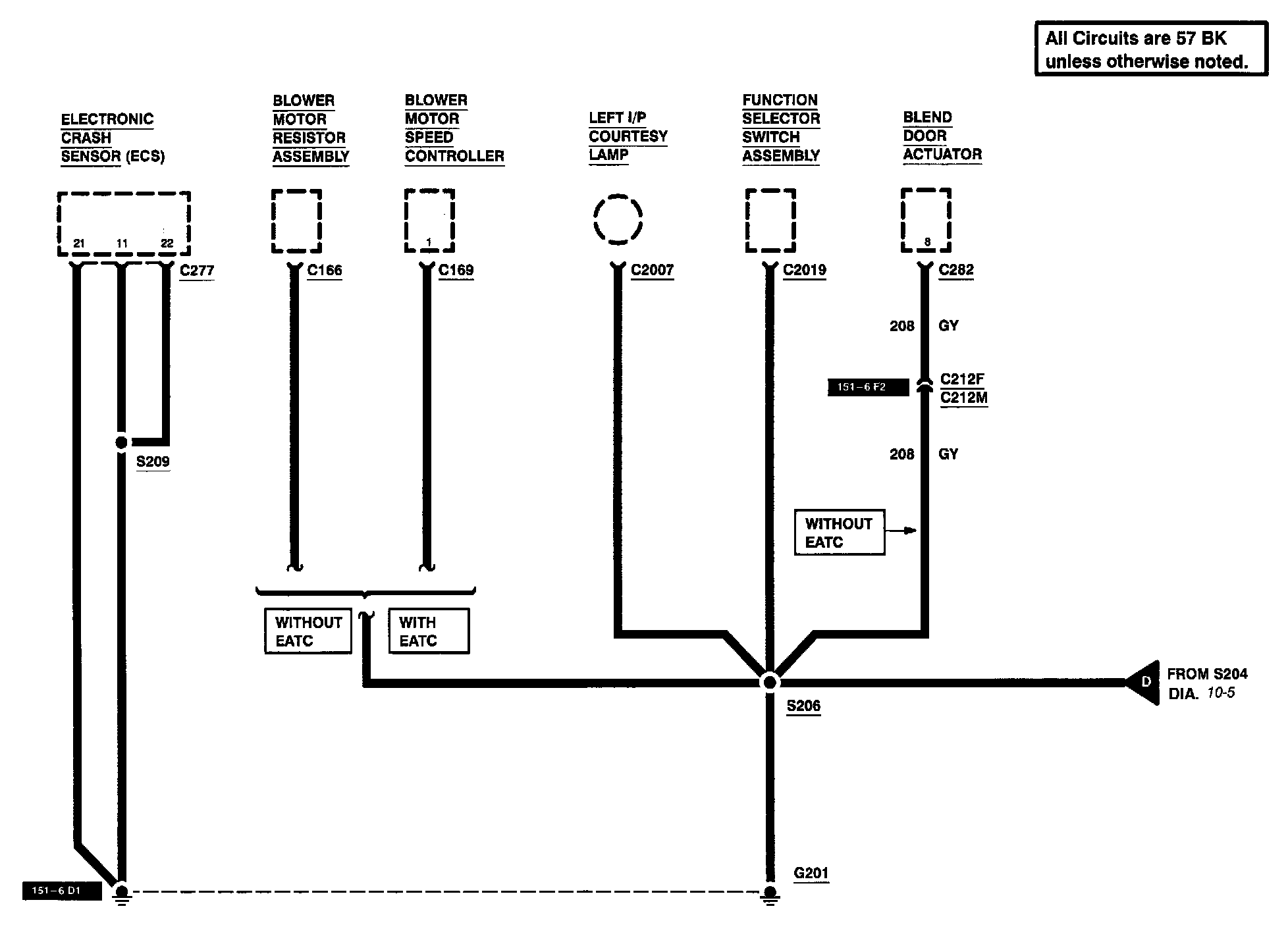

Diagram 10-4:

Blend Door Actuator
Blower Motor Resistor Assembly
Blower Motor Speed Controller
Electronic Crash Sensor
Function Selector Switch Assembly
Left Instrument Panel Courtesy Lamp

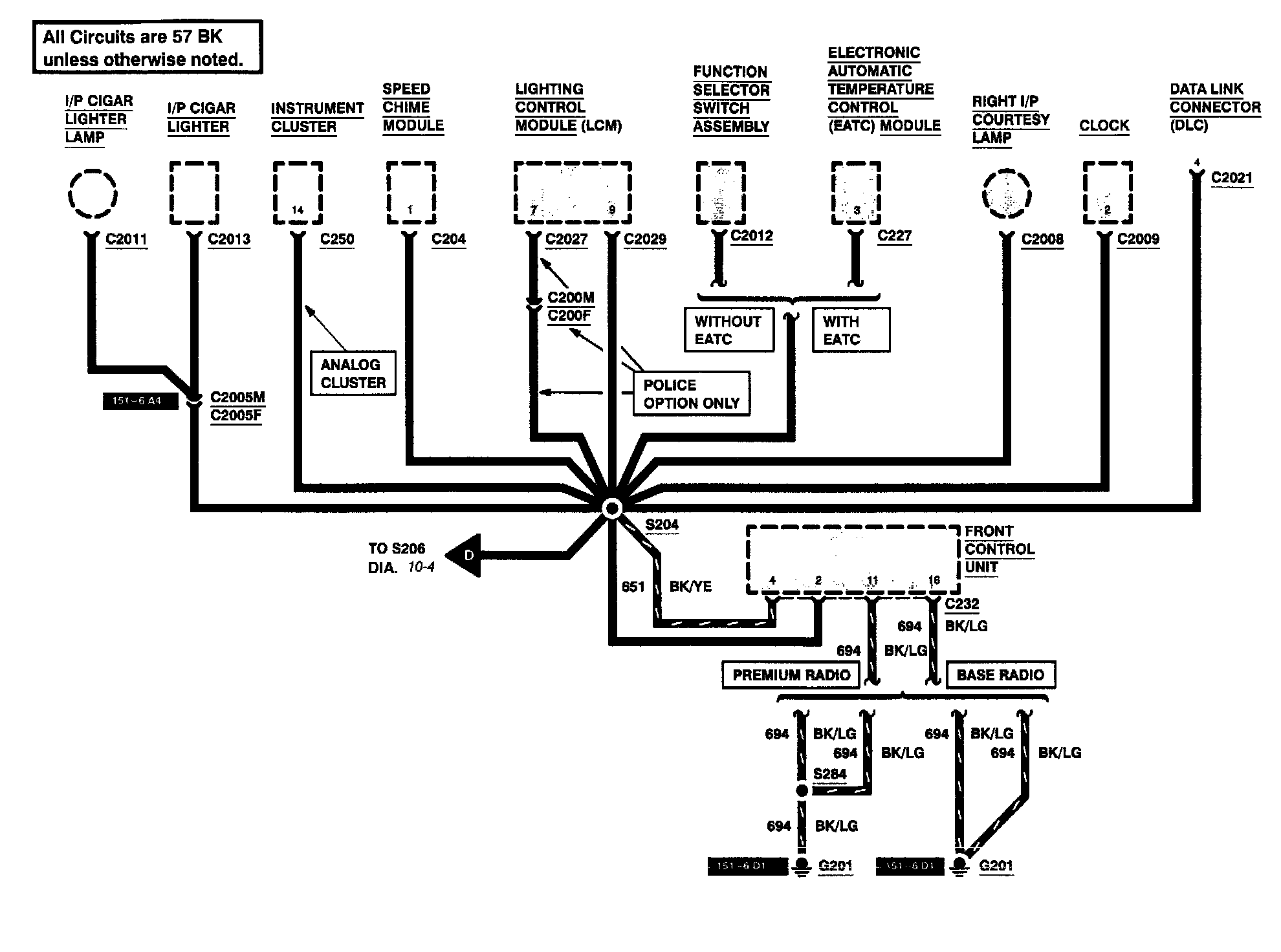

Diagram 10-5:

Clock
Data Link Connector
Electronic Automatic Temperature Control Module
Front Control Unit
Function Selector Switch Assembly
Instrument Cluster
Instrument Panel Cigar Lighter
Instrument Panel Cigar Lighter Lamp
Lighting Control Module
Right Instrument Panel Courtesy Lamp
Speed Chime Module

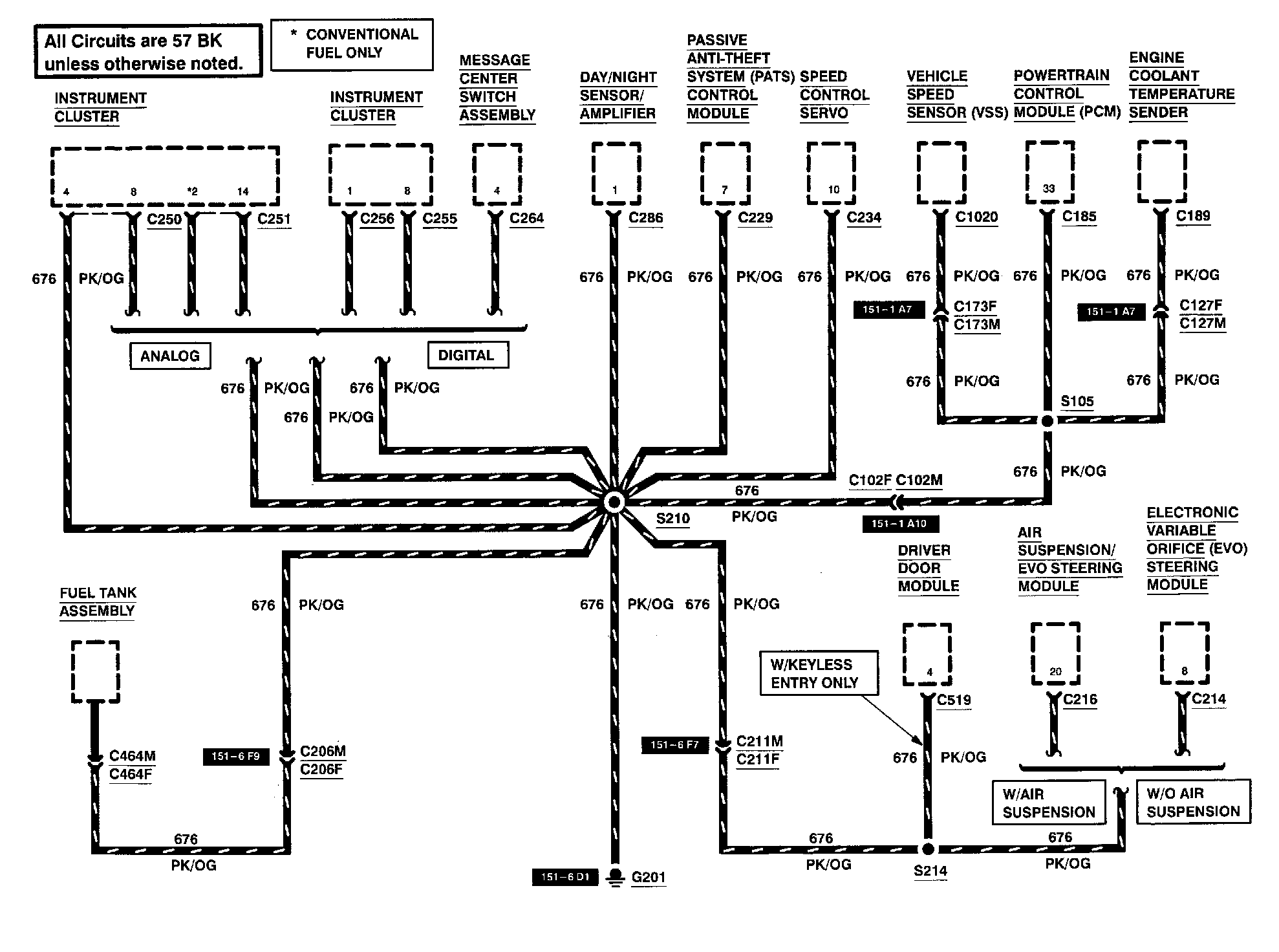

Diagram 10-6:

Air Suspension/Electronic Variable Orifice Steering Module
Day/Night Sensor/Amplifier
Driver Door Module
Electronic Variable Orifice Steering Module
Engine Coolant Temperature Sender
Fuel Tank Assembly
Instrument Cluster
Message Center Switch Assembly
Passive Anti-Theft System Control Module
Powertrain Control Module
Speed Control Servo
Vehicle Speed Sensor

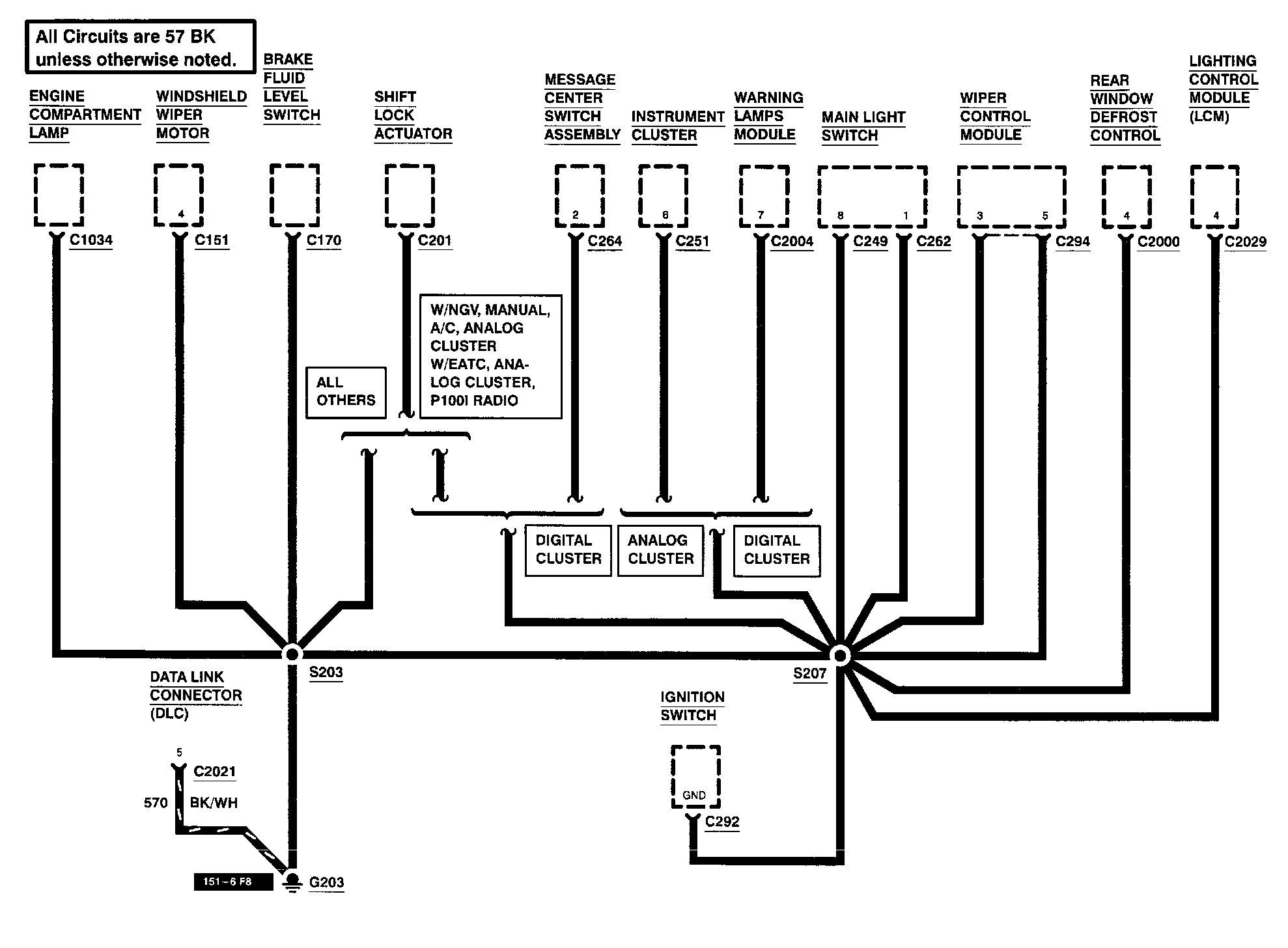

Diagram 10-7:

Brake Fluid Level Switch
Data Link Connector
Engine Compartment Lamp
Ignition Switch
Instrument Cluster
Lighting Control Module
Main Light Switch
Message Center Switch Assembly
Rear Window Defrost Control
Shift Lock Actuator
Warning Lamps Module
Windshield Wiper Motor
Wiper Control Module

Diagram 10-8:

Air Suspension Electronic Variable Orifice Steering Module
Electronic Day/Night Mirror
Electronic Variable Orifice Steering Module
LR Window Control Switch
Luggage Compartment Lid Lamp
Passenger Power Lumbar Compressor
RR Window Control Switch
Steering Wheel Rotation Sensor

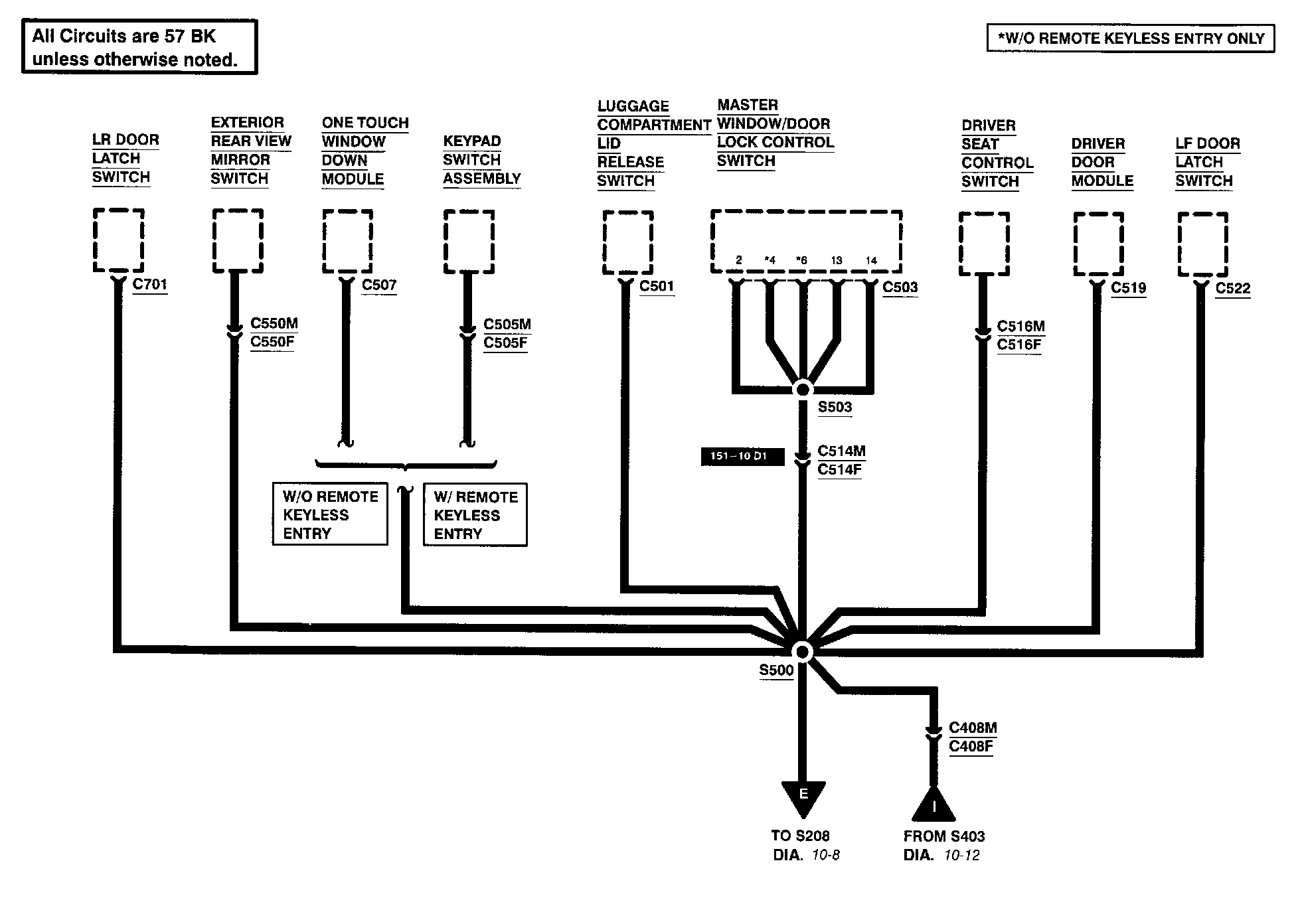

Diagram 10-9:

Driver Door Module
Driver Seat Control Switch
Exterior Rear View Mirror Switch
Keypad Switch Assembly
LF Door Latch Switch
LR Door Latch Switch
Luggage Compartment Lid Release Switch
Master Window/Door Lock Control Switch
One Touch Window Down Module

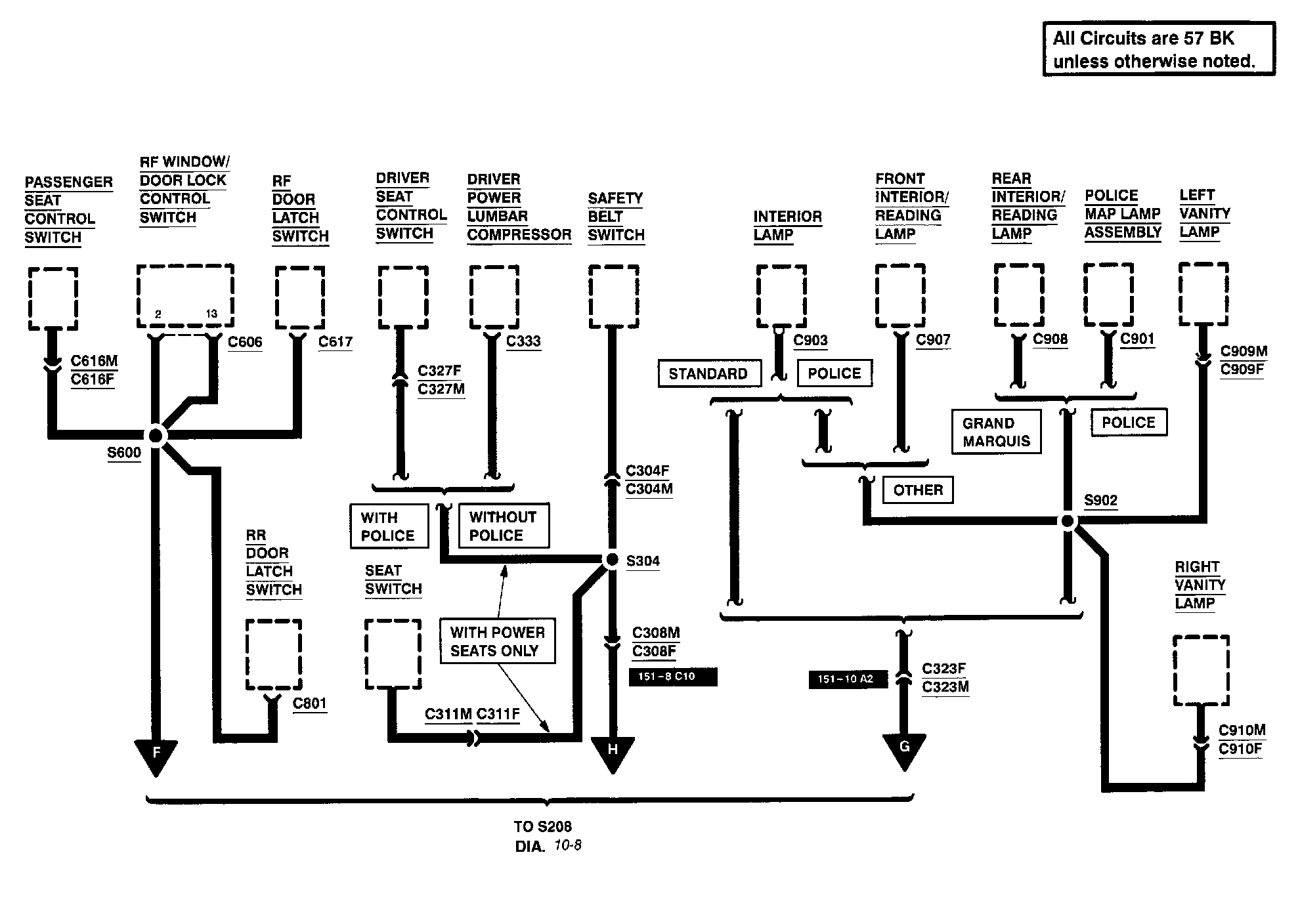

Diagram 10-10:

Driver Power Lumbar Compressor
Driver Seat Control Switch
Front Interior/Reading Lamp
Interior Lamp
Left Vanity Lamp
Passenger Seat Control Switch
Police Map Lamp Assembly
Rear Interior/Reading Lamp
RF Door Latch Switch
RF Window/Door Lock Control Switch
Right Vanity Lamp
RR Door Latch Switch
Safety Belt Switch
Seat Switch

Diagram 10-11:

Fuel Tank Assembly
Fuel Tank Solenoid Valve #1
Fuel Tank Solenoid Valve #2
LR Park Lamp #1
LR Park Lamp #2
LR Park/Stop/Turn Lamp #1
LR Park/Stop/Turn Lamp #2
LR Turn Signal Lamp #1
LR Turn Signal Lamp #2

Diagram 10-12:

Emergency Flasher Relay #1
Emergency Flasher Relay #2
Emergency Flasher Relay Block
Fuel Tank Solenoid Valve #3
Fuel Tank Solenoid Valve #4
Left Reversing Lamp
License Lamp
Luggage Compartment Lid Release Solenoid/Ajar Switch
Right Reversing Lamp
RR Park Lamp #1
RR Park Lamp #2
RR Park/Stop/Turn Lamp #1
RR Park/Stop/Turn Lamp #2
RR Turn Signal Lamp #1
RR Turn Signal Lamp #2

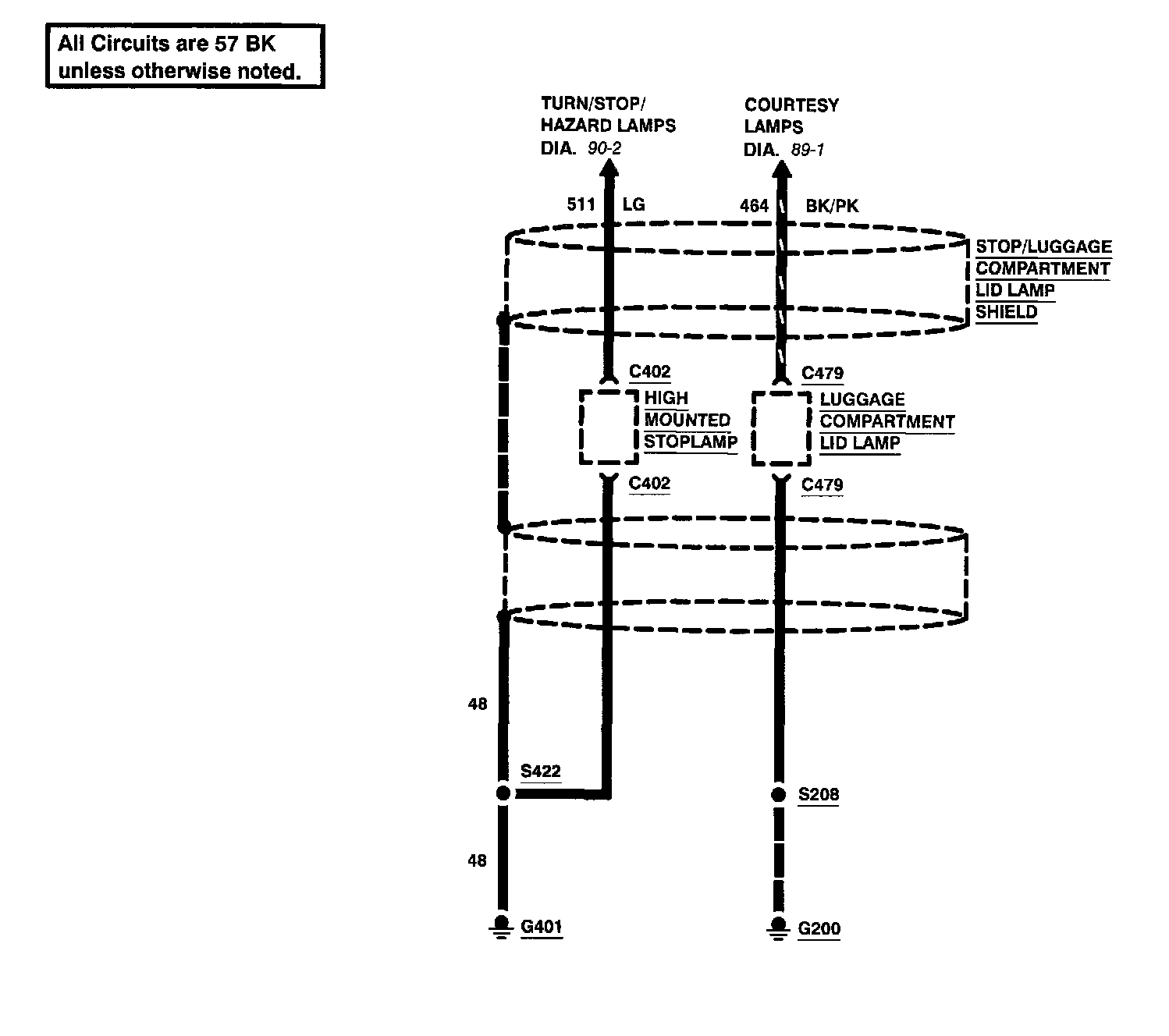

Diagram 10-13:

High Mounted Stoplamp
Luggage Compartment Lid Lamp
Stop/Luggage Compartment Lid Lamp Shield
