Turn Signals

Diagram 90-1:

Anti-Lock Brake Module
Brake Pedal Position Switch
Central Junction Box
Fuse 1
Fuse 5
High Mounted Stoplamp
Lighting Control Module
Multifunction Switch
Powertrain Control Module
Shift Lock Actuator
Speed Control Servo

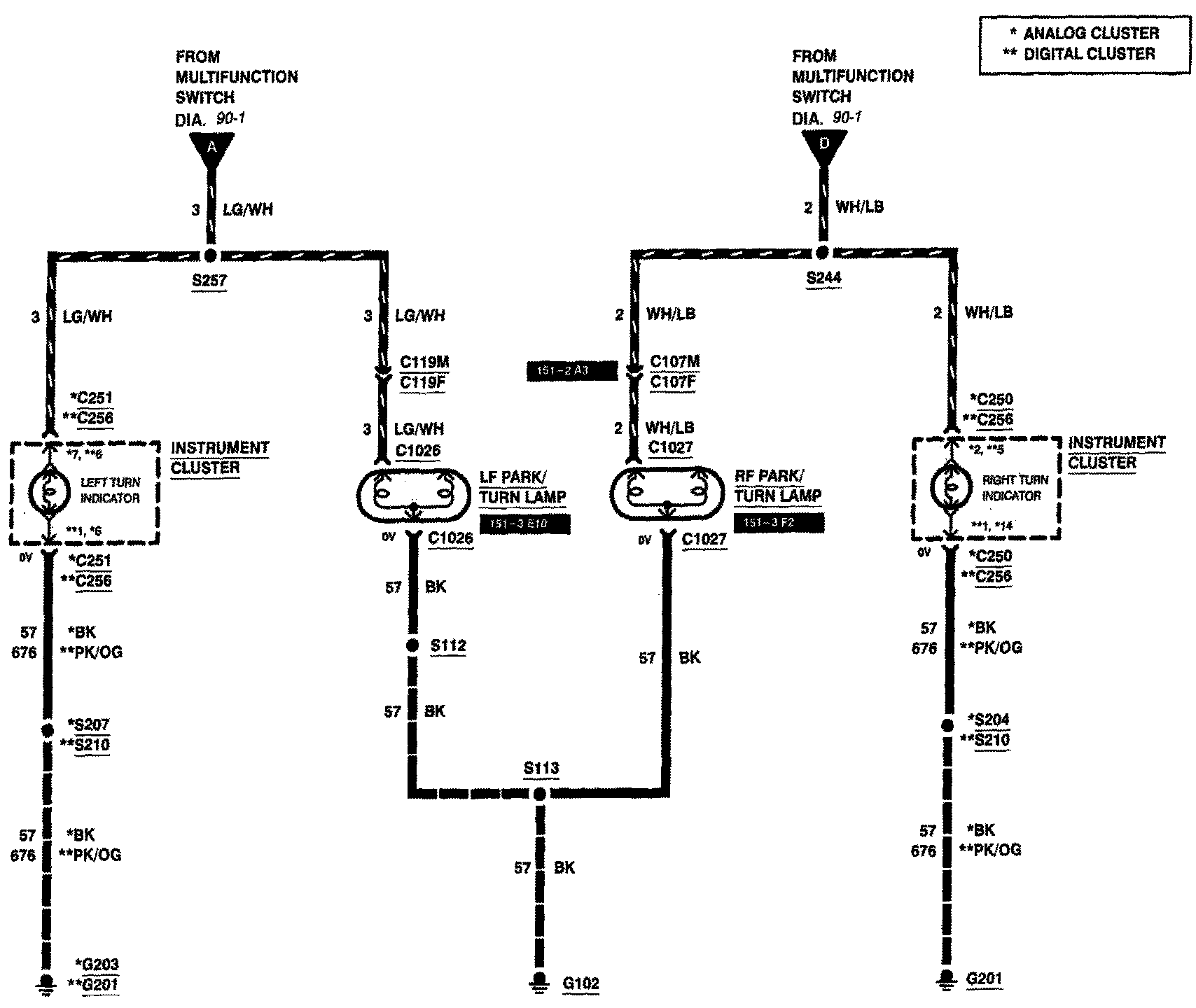

Diagram 90-2:

Instrument Cluster
Left Turn Indicator
Lf Park/Turn Lamp
RF Park/Turn Lamp
Right Turn Indicator

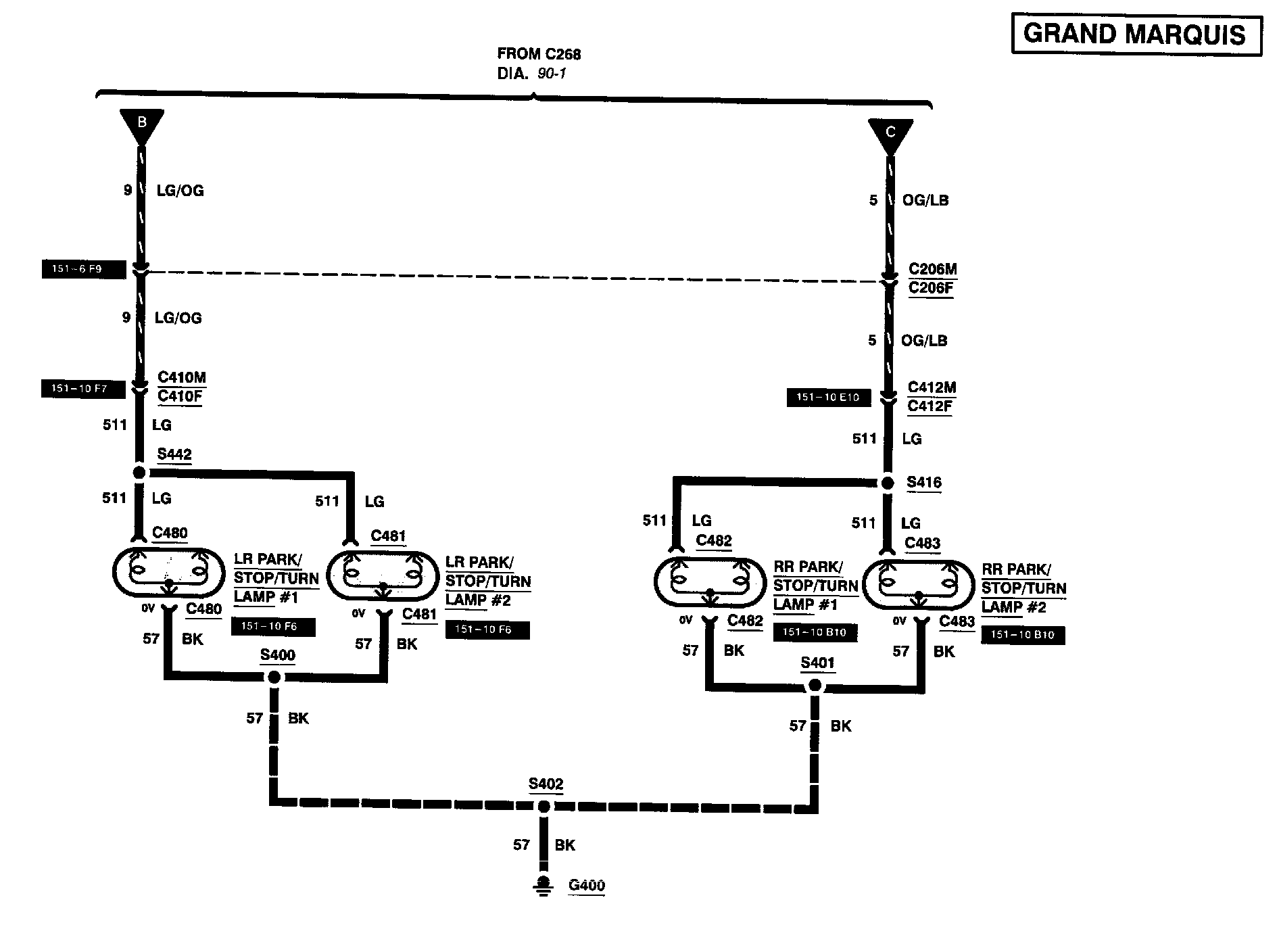

Diagram 90-5:

LR Park/Stop/Turn Lamp #1
LR Park/Stop/Turn Lamp #2
RR Park/Stop/Turn Lamp #1
RR Park/Stop/Turn Lamp #2
