Instrument Illumination

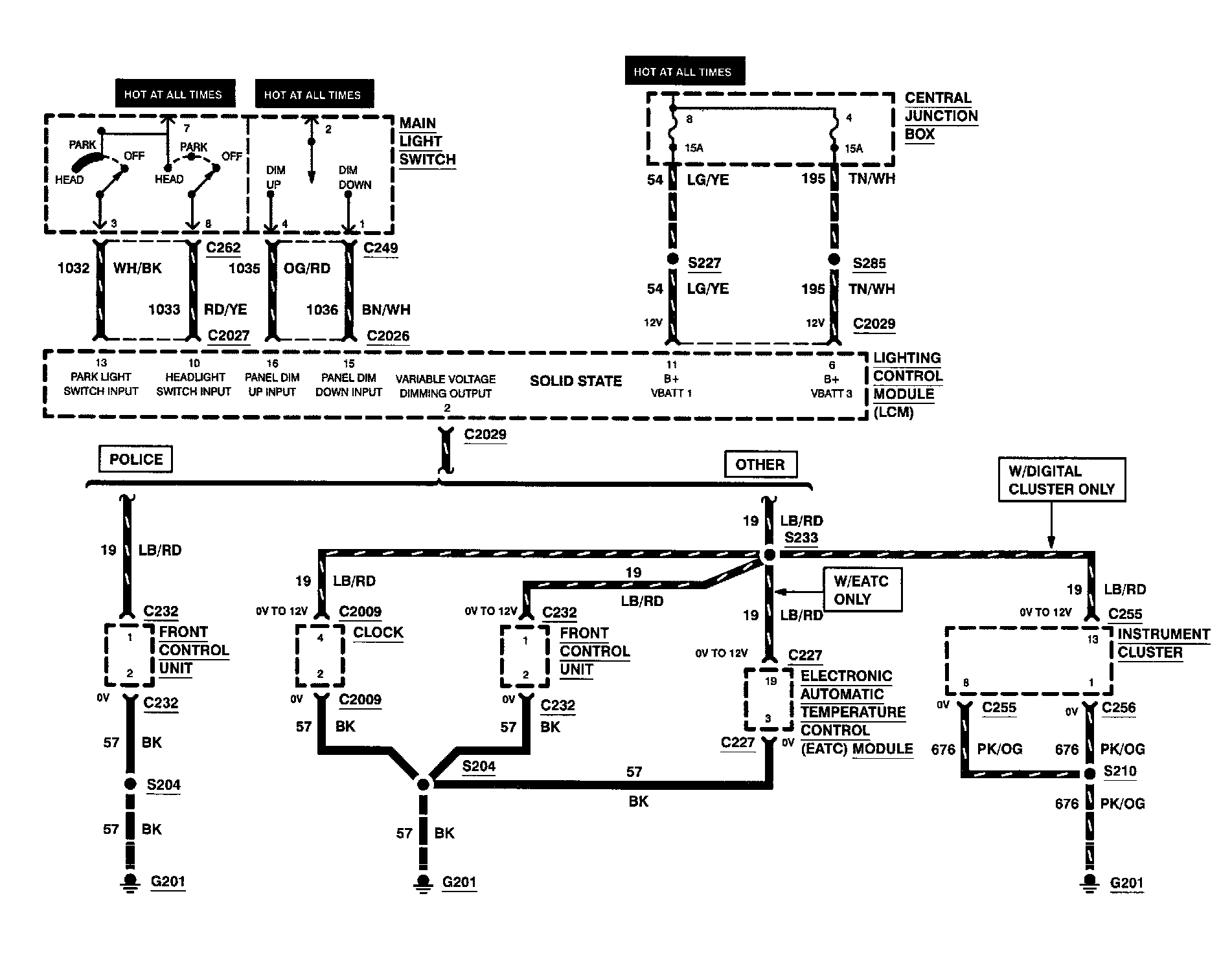

Diagram 71-1:

Central Junction Box
Clock
Electronic Automatic Temperature Control Module
Front Control Unit
Fuse 4
Fuse 8
Instrument Cluster
Lighting Control Module
Main Light Switch

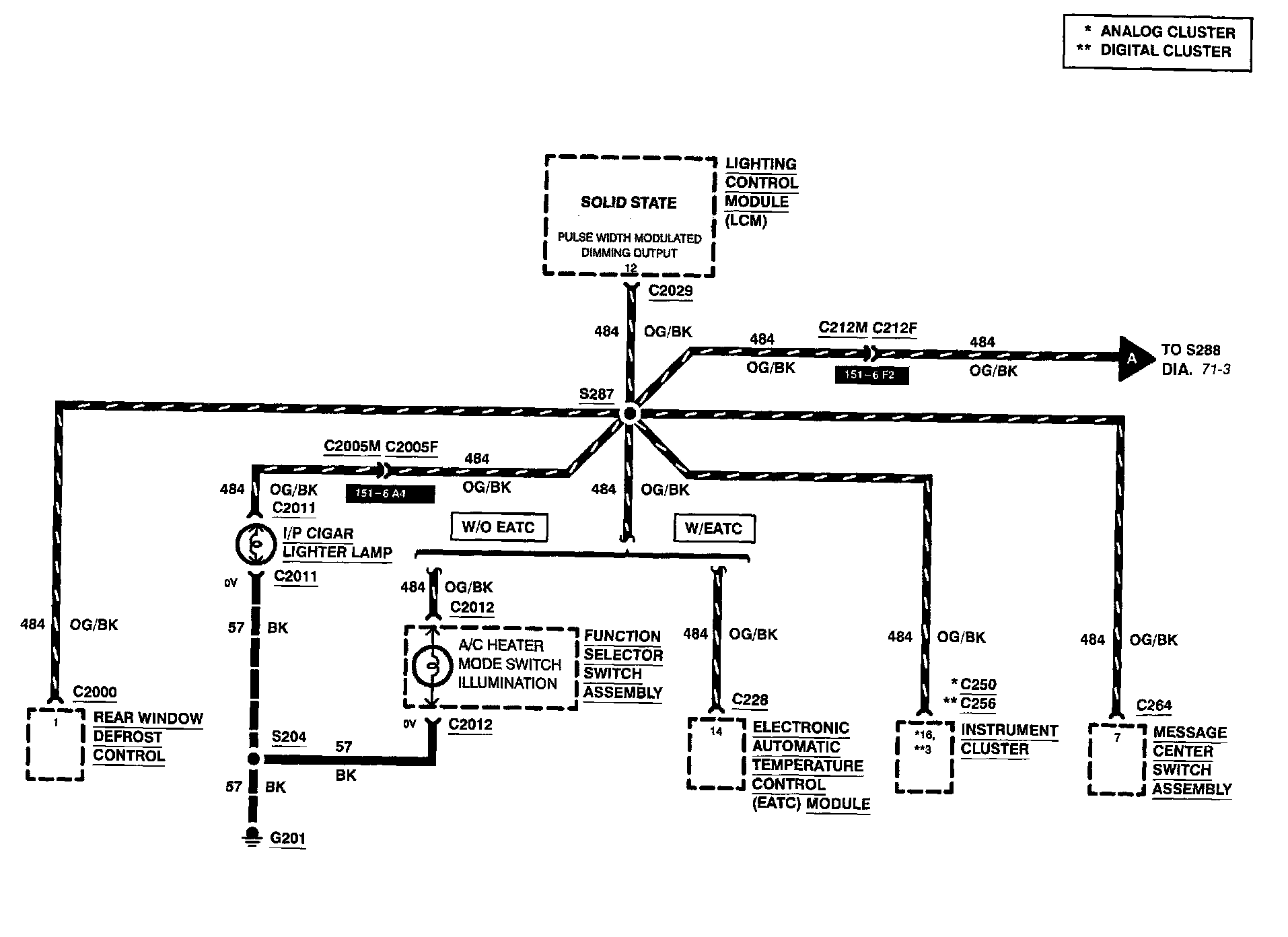

Diagram 71-2:

A/C Heater Mode Switch Illumination
Electronic Automatic Temperature Control Module
Function Selector Switch Assembly
Instrument Cluster
Instrument Panel Cigar Lighter Lamp
Lighting Control Module
Message Center Switch Assembly
Rear Window Defrost Control

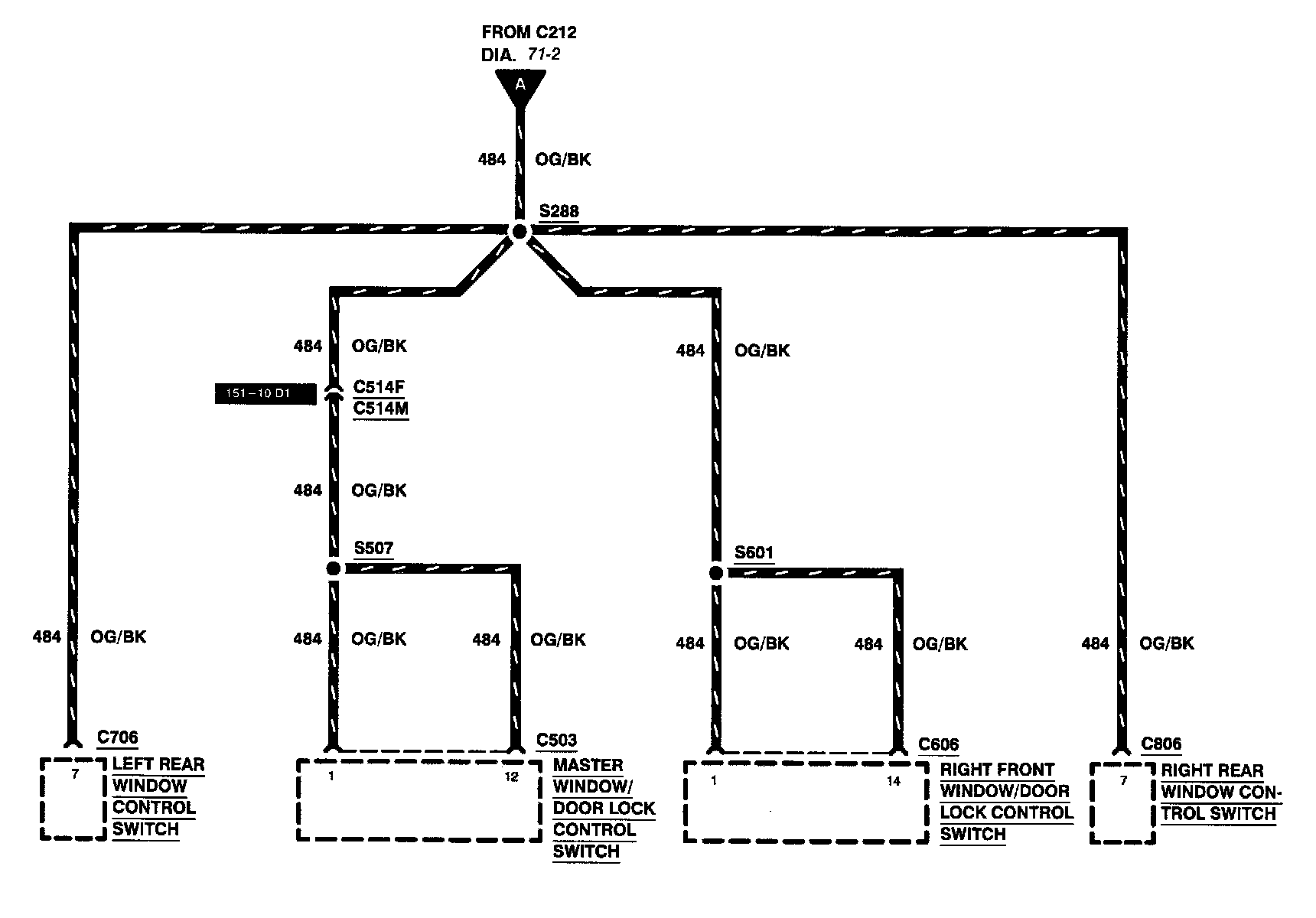

Diagram 71-3:

Left Rear Window Control Switch
Master Window/Door Lock Control Switch
Right Front Window/Door Lock Control Switch
Right Rear Window Control Switch
