Instrument Cluster

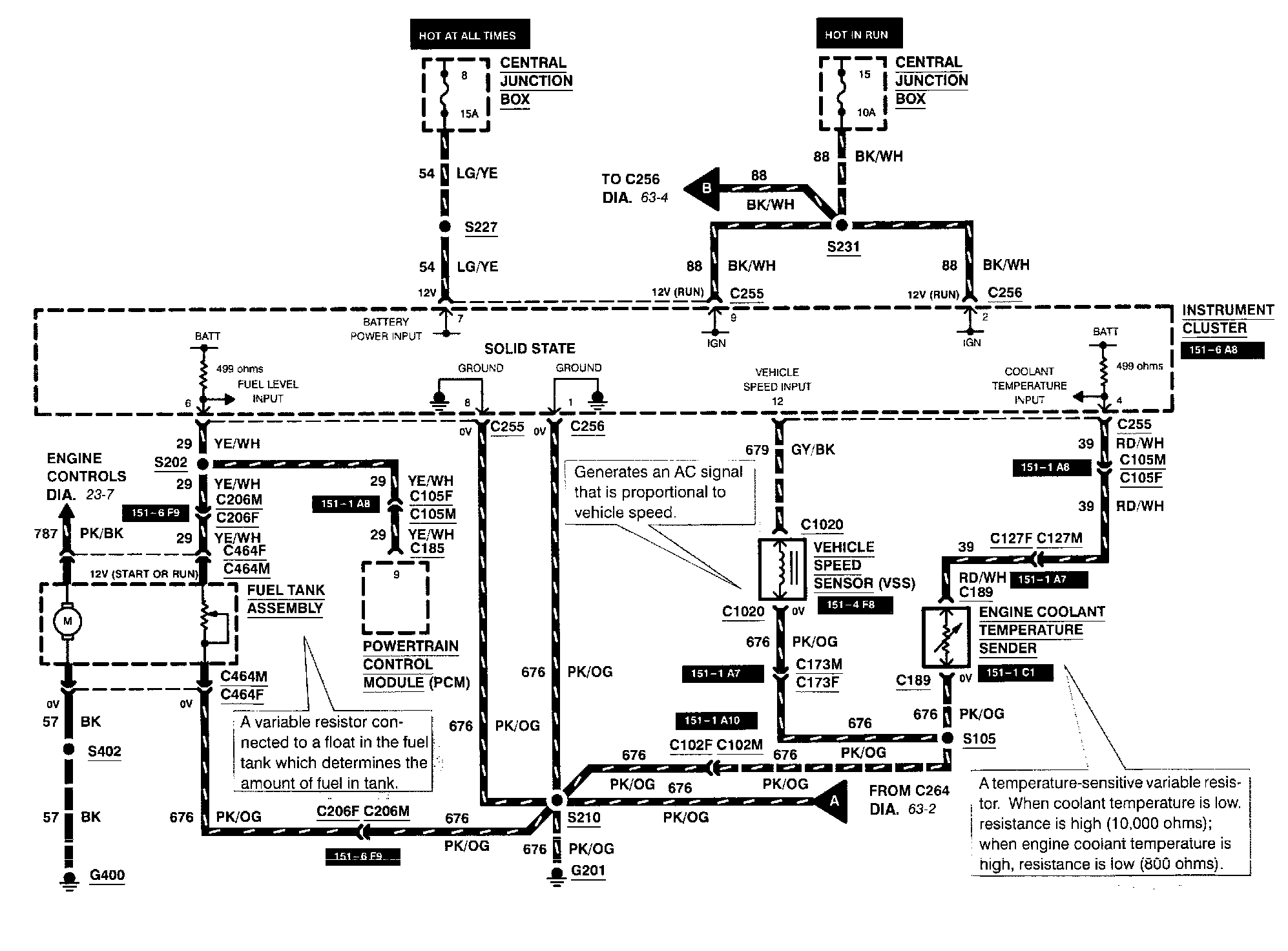

Diagram 63-1:

Central Junction Box
Engine Coolant Temperature Sender
Fuel Tank Assembly
Fuse 8
Fuse 15
Instrument Cluster
Powertrain Control Module
Vehicle Speed Sensor

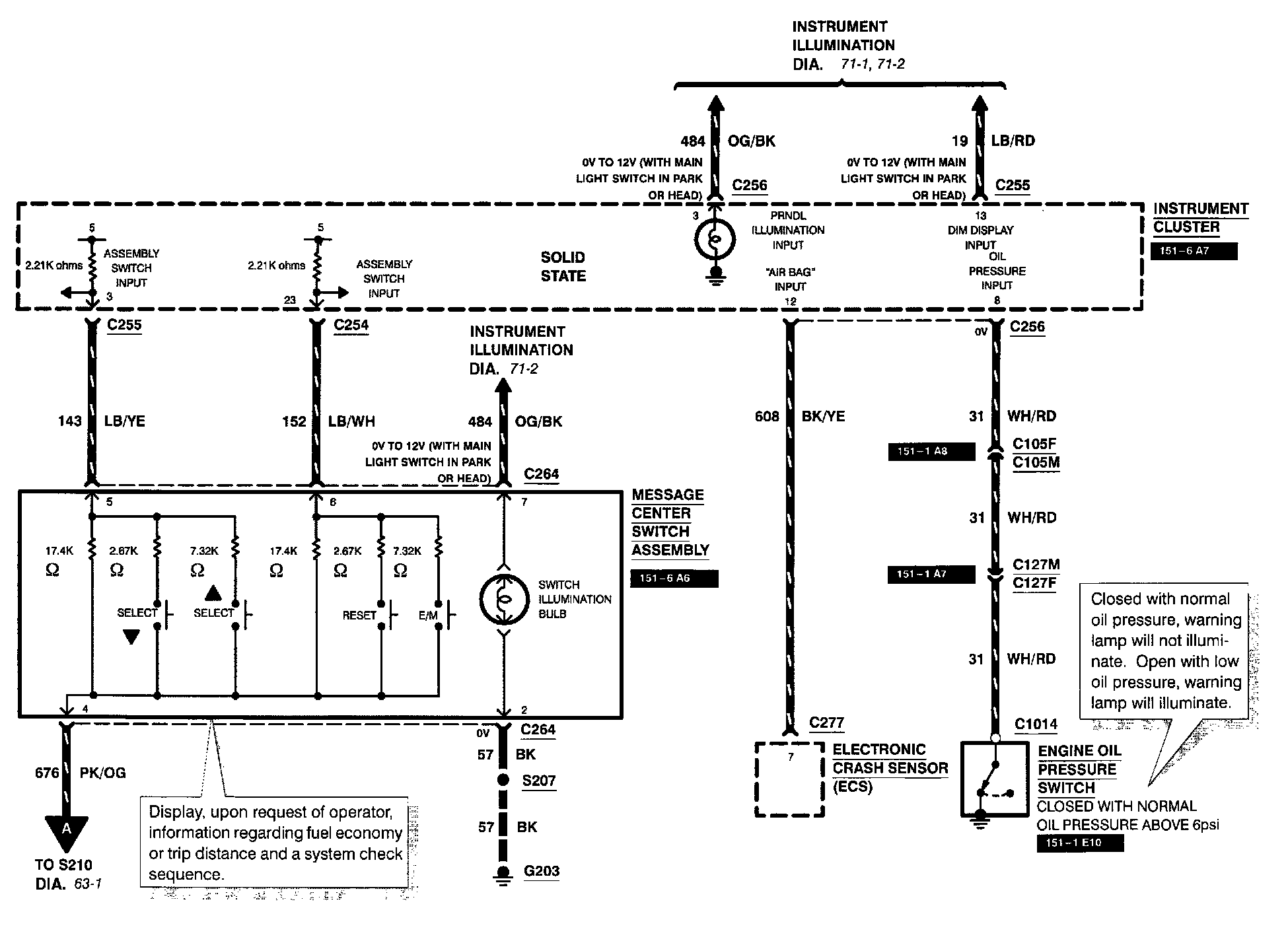

Diagram 63-2:

Electronic Crash Sensor
Engine Oil Pressure Switch
Instrument Cluster
Message Center Switch Assembly
PRNDL Illumination Input
Switch Illumination Bulb

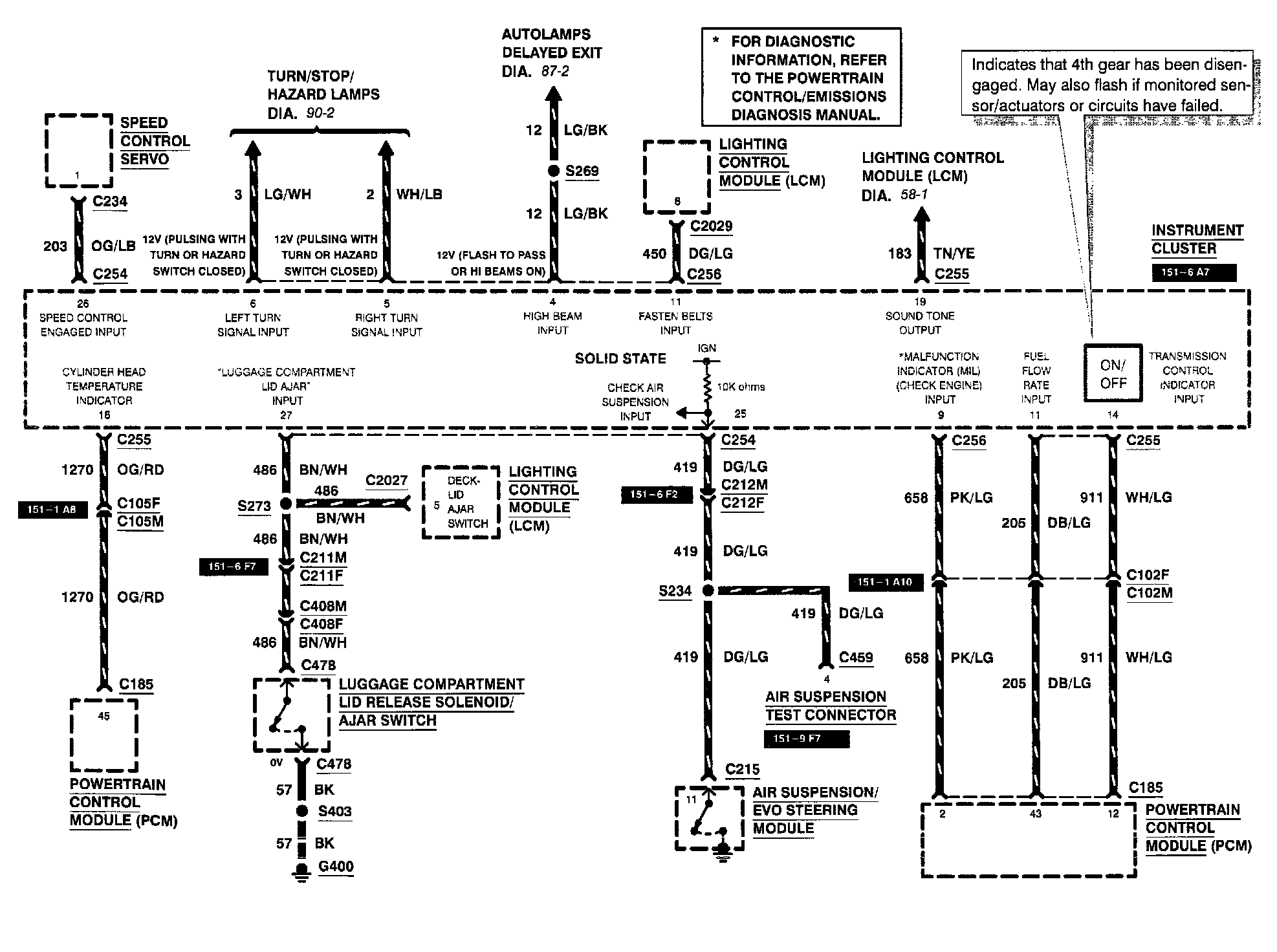

Diagram 63-3:

Air Suspension/Electronic Variable Orifice Steering Module
Air Suspension Test Connector
Cylinder Head Temperature Indicator
Decklid Ajar Switch
Instrument Cluster
Lighting Control Module
Luggage Compartment Lid Release Solenoid/Ajar Switch
Powertrain Control Module
Speed Control Servo
Transmission Control Indicator

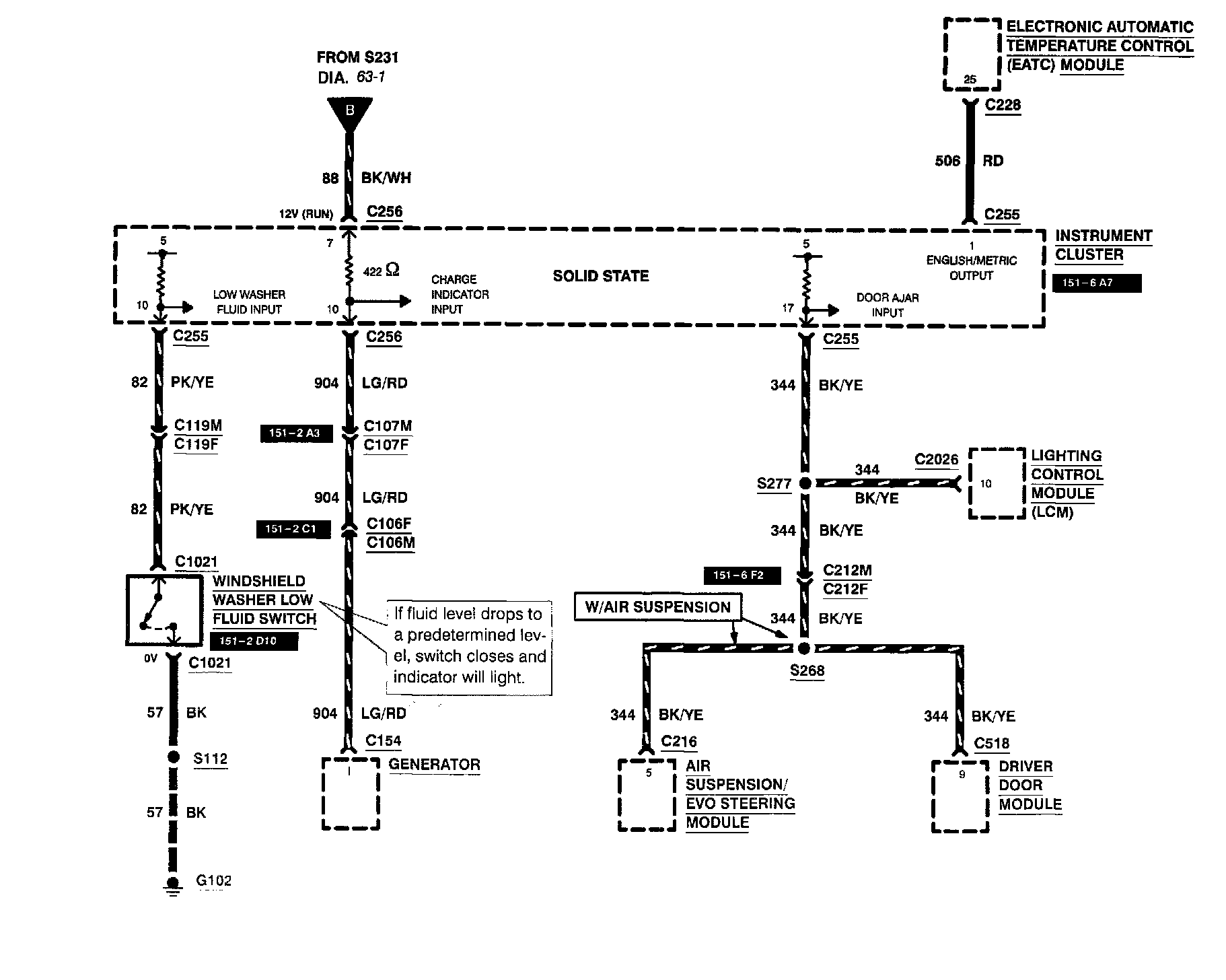

Diagram 63-4:

Air Suspension/Electronic Variable Orifice Steering Module
Driver Door Module
Electronic Automatic Temperature Control Module
Generator
Instrument Cluster
Lighting Control Module
Windshield Washer Low Fluid Switch
