Analog Cluster

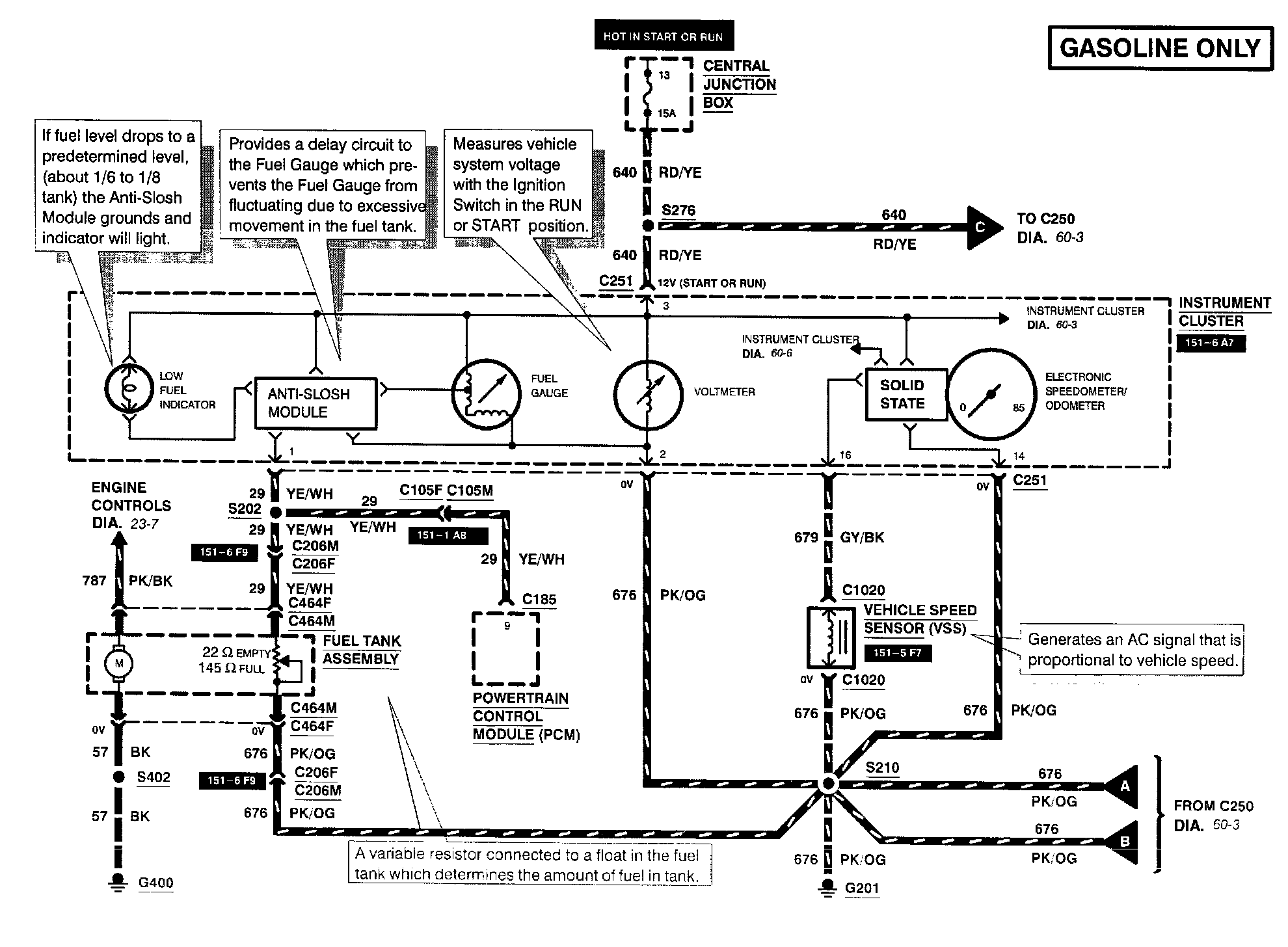

Diagram 60-1:

Anti-Slosh Module
Central Junction Box
Electronic Speedometer/Odometer
Fuel Gauge
Fuel Tank Assembly
Fuse 13
Instrument Cluster
Low Fuel Indicator
Powertrain Control Module
Vehicle Speed Sensor
Voltmeter

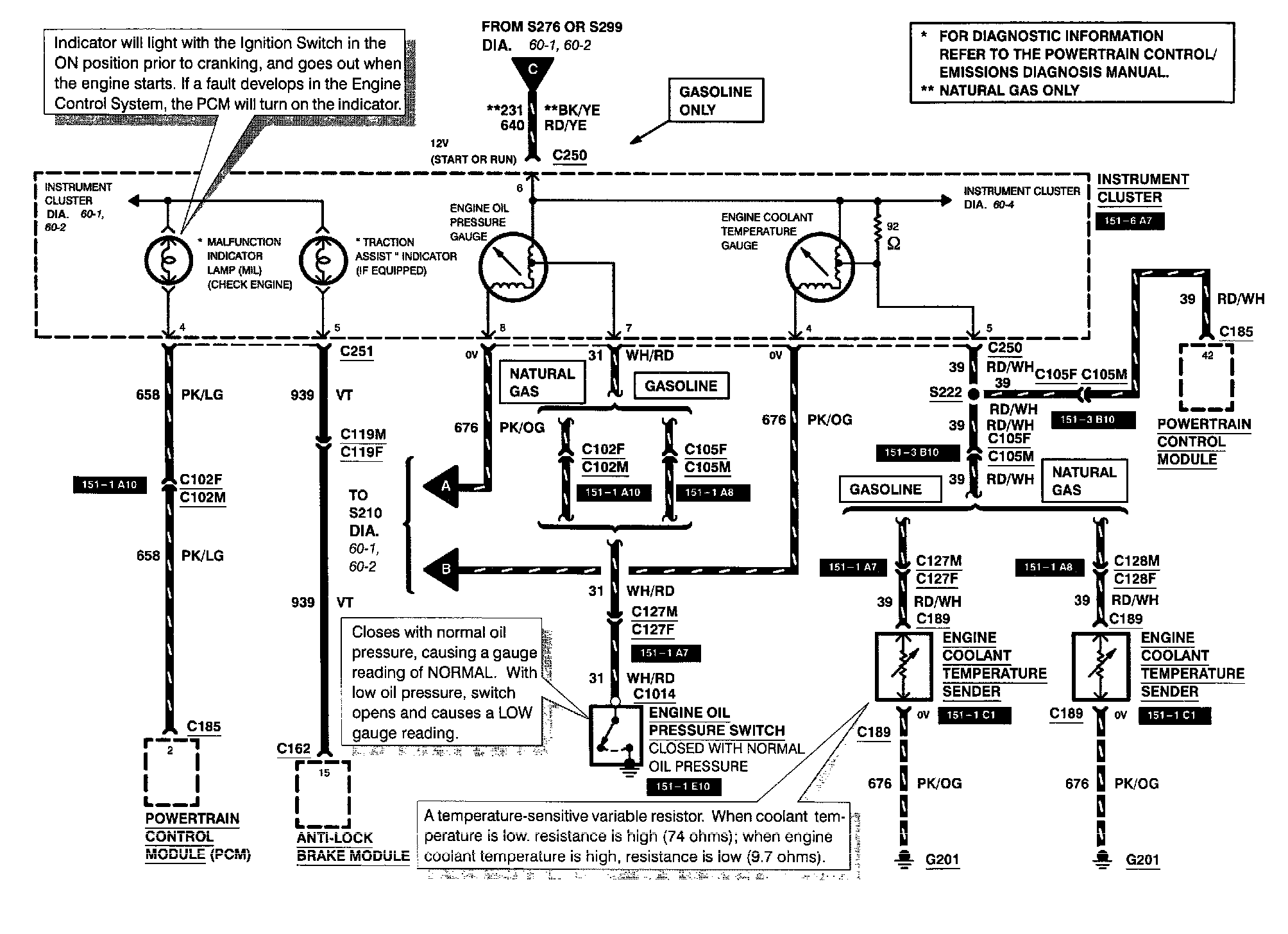

Diagram 60-3:

Anti-Lock Brake Module
Engine Coolant Temperature Gauge
Engine Coolant Temperature Sender
Engine Oil Pressure Gauge
Engine Oil Pressure Switch
Instrument Cluster
Malfunction Indicator Lamp
Powertrain Control Module
Traction Assist Indicator

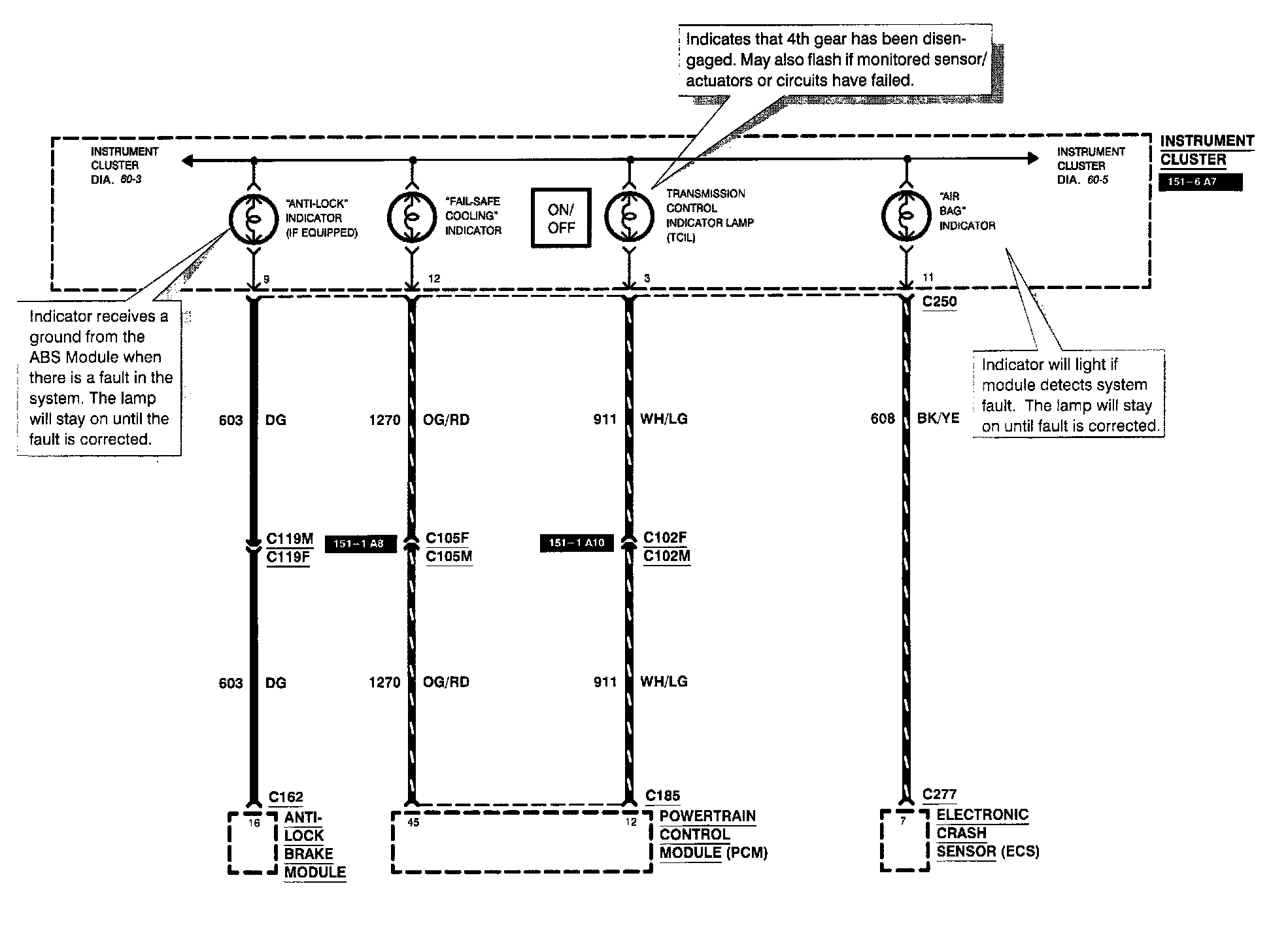

Diagram 60-4:

Air Bag Indicator
Anti-Lock Brake Module
Anti-Lock Indicator
Electronic Crash Sensor
Fail-Safe Cooling Indicator
Instrument Cluster
Powertrain Control Module
Transmission Control Indicator Lamp

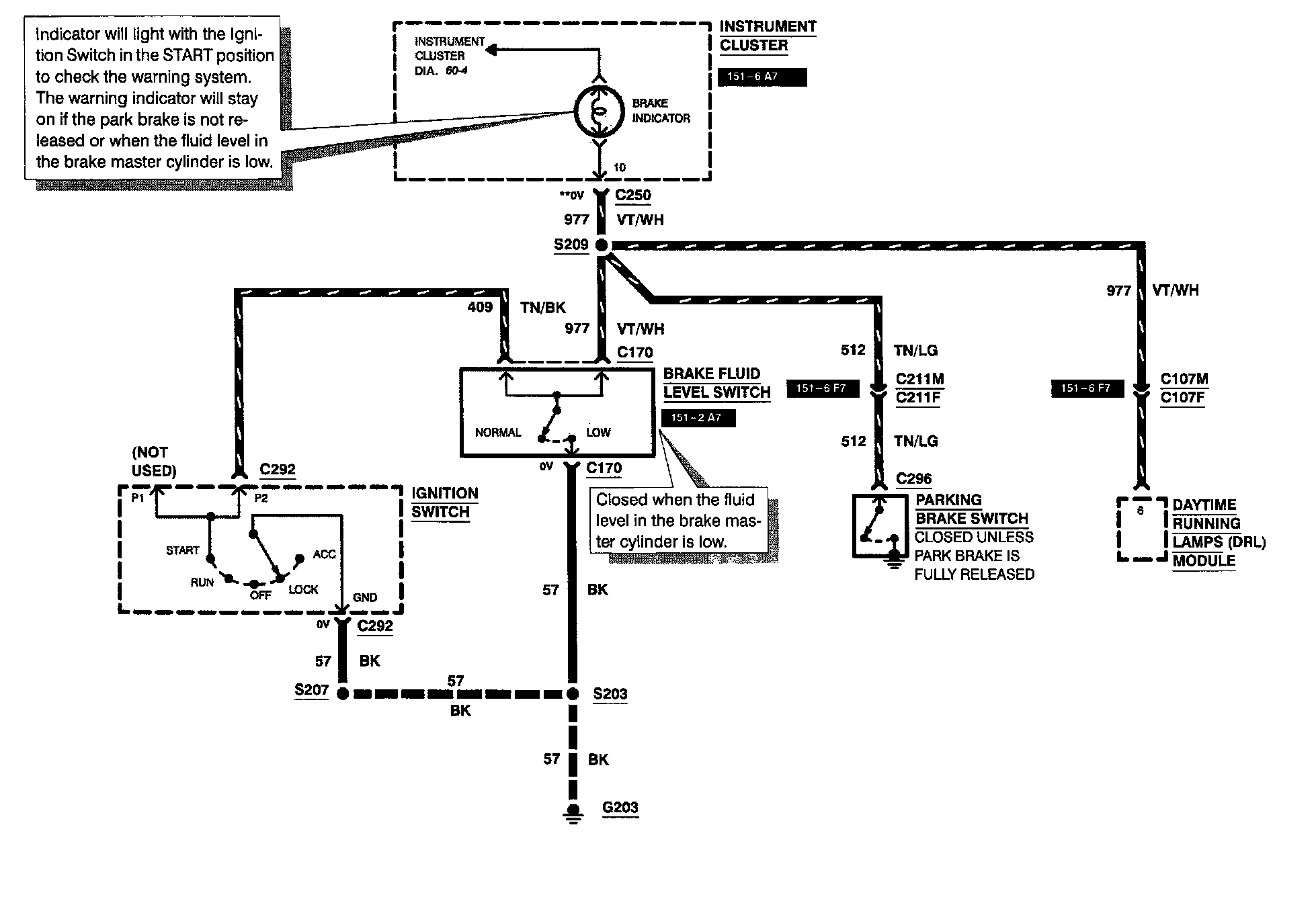

Diagram 60-5:

Brake Fluid Level Switch
Brake Indicator
Daytime Running Lamps Module
Ignition Switch
Instrument Cluster
Parking Brake Switch

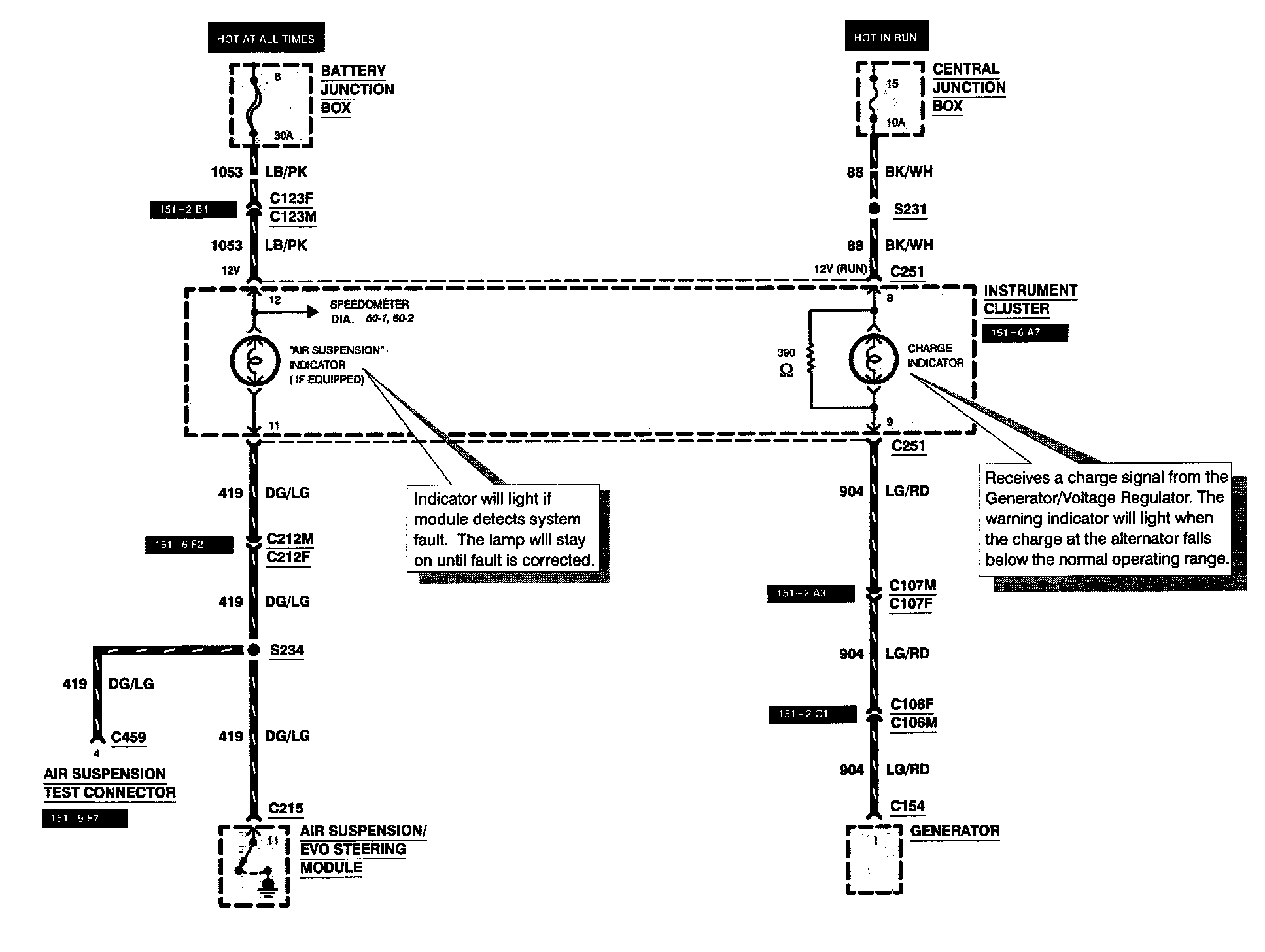

Diagram 60-6:

Air Suspension Indicator
Air Suspension/Electronic Variable Orifice Steering Module
Air Suspension Test Connector
Battery Junction Box
Central Junction Box
Charge Indicator
Fuse 8
Fuse 15
Generator
Instrument Cluster

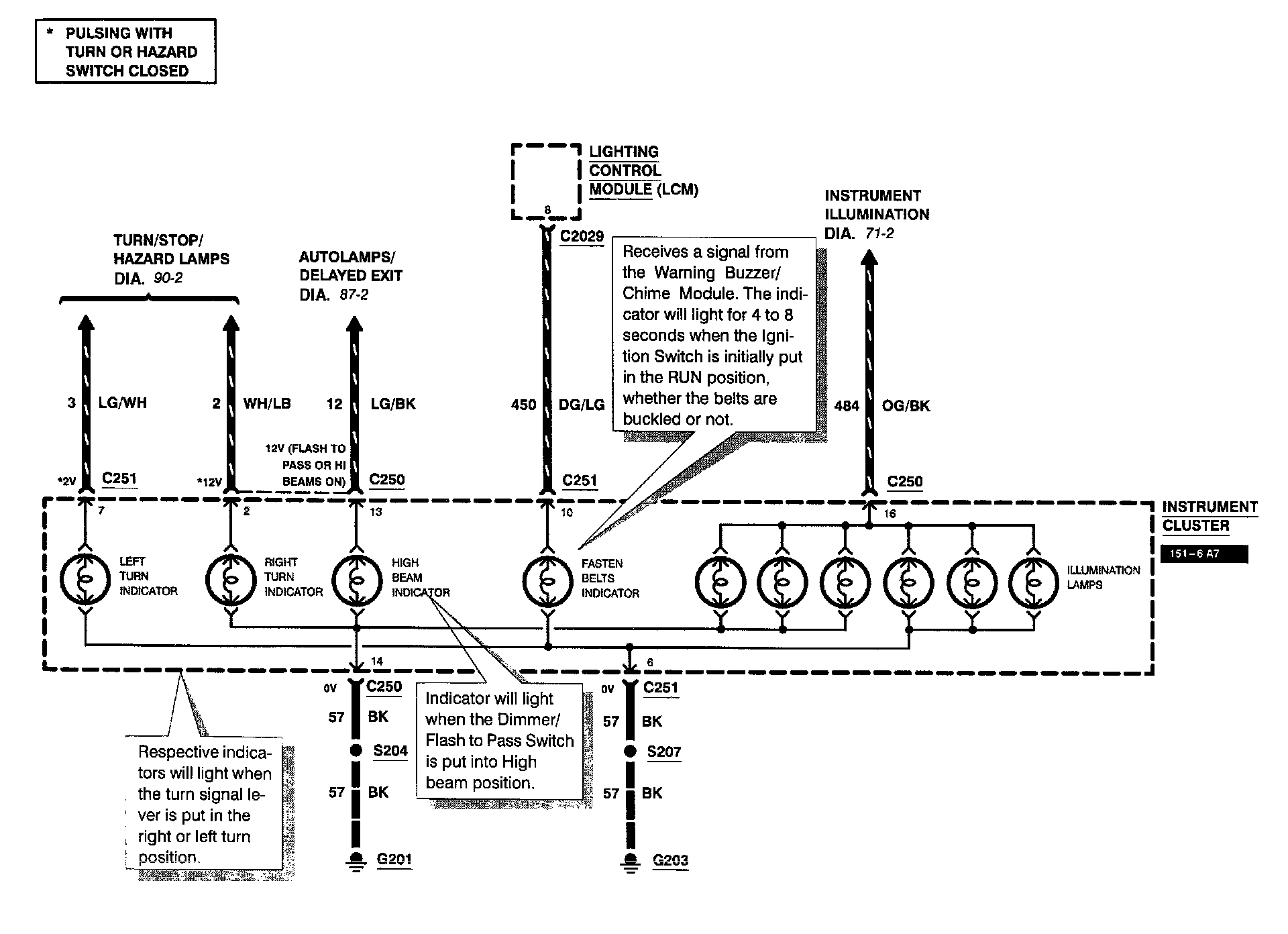

Diagram 60-7:

Fasten Belts Indicator
High Beam Indicator
Illumination Lamps
Instrument Cluster
Left Turn Indicator
Lighting Control Module
Right Turn Indicator
