Electronic Climate Control

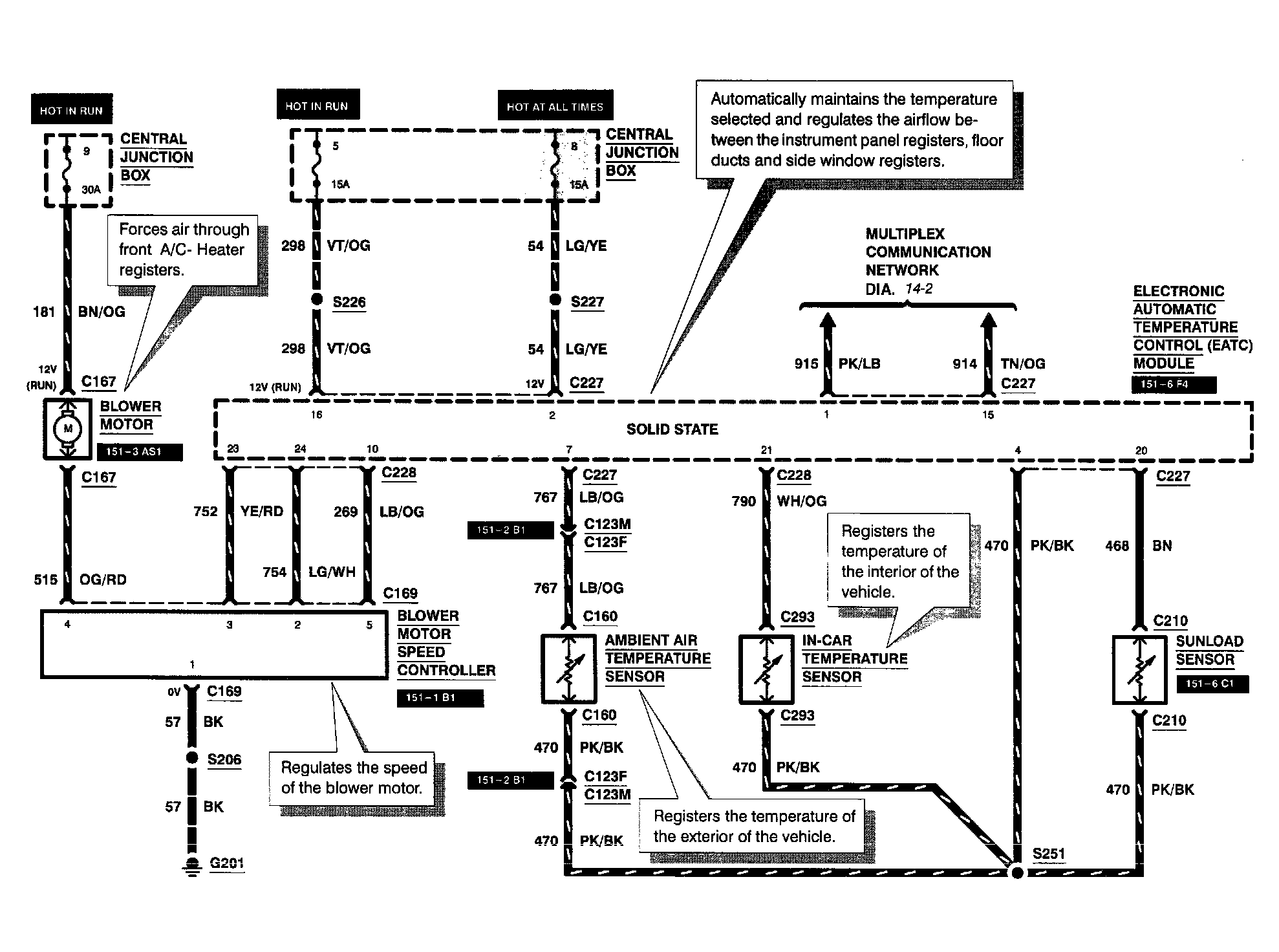

Diagram 55-1:

Ambient Air Temperature Sensor
Blower Motor
Blower Motor Speed Controller
Central Junction Box
Electronic Automatic Temperature Control Module
Fuse 5
Fuse 8
Fuse 9
In-Car Temperature Sensor
Sunload Sensor

Diagram 55-2:

Blend Door Actuator
Electronic Automatic Temperature Control Module

Diagram 55-3:

A/C Clutch Cycling Pressure Switch
A/C Compressor Clutch Coil
A/C High Pressure Cut Out Switch
A/C Wide Open Throttle Cutout Relay
Central Junction Box
Electronic Automatic Temperature Control Module
Fuse 5
Instrument Cluster (Digital)
Powertrain Control Module
Powertrain Control Module Power Relay
Relay Center
