Grand Marquis V8-4.6L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
Components

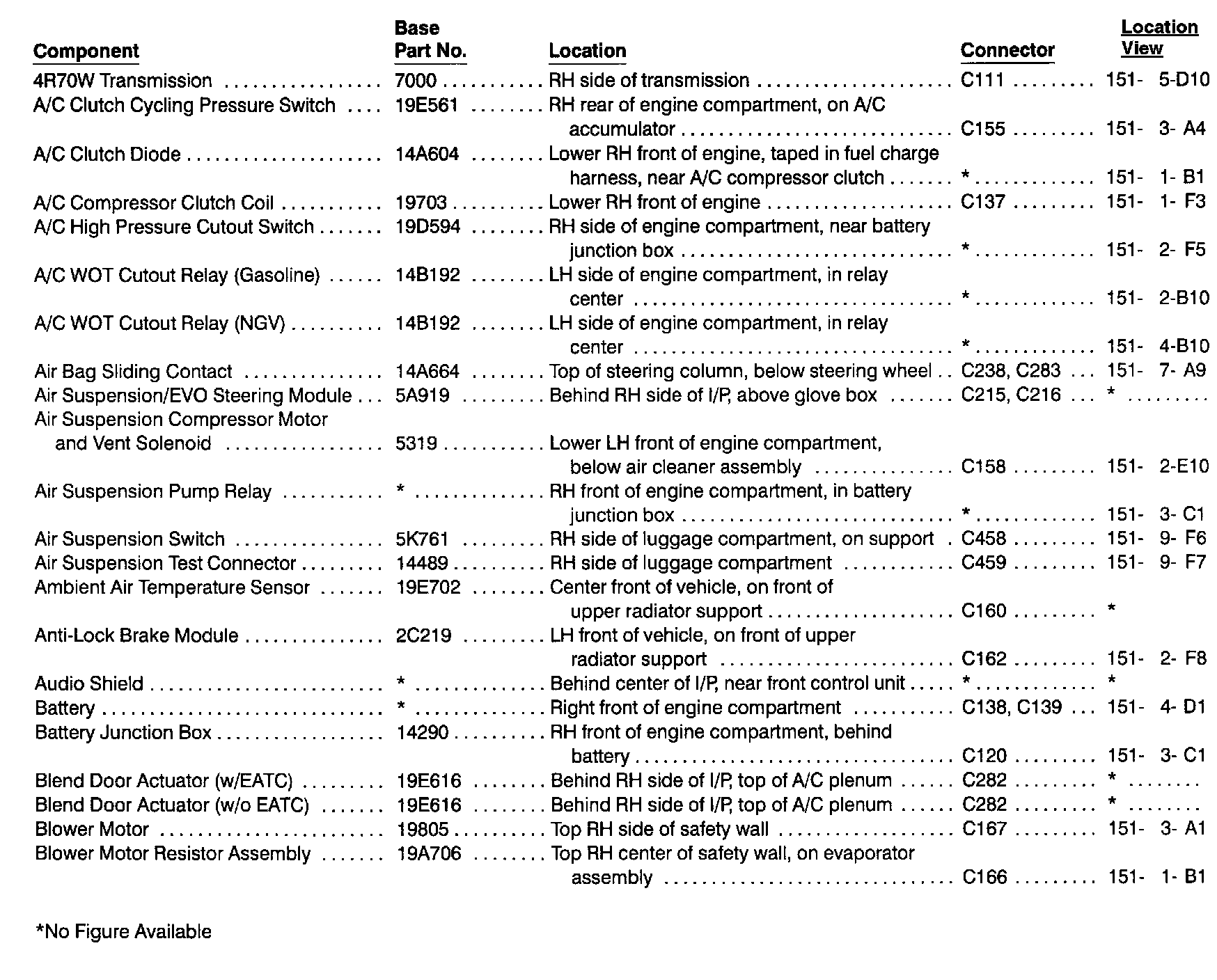

4r-Bl:

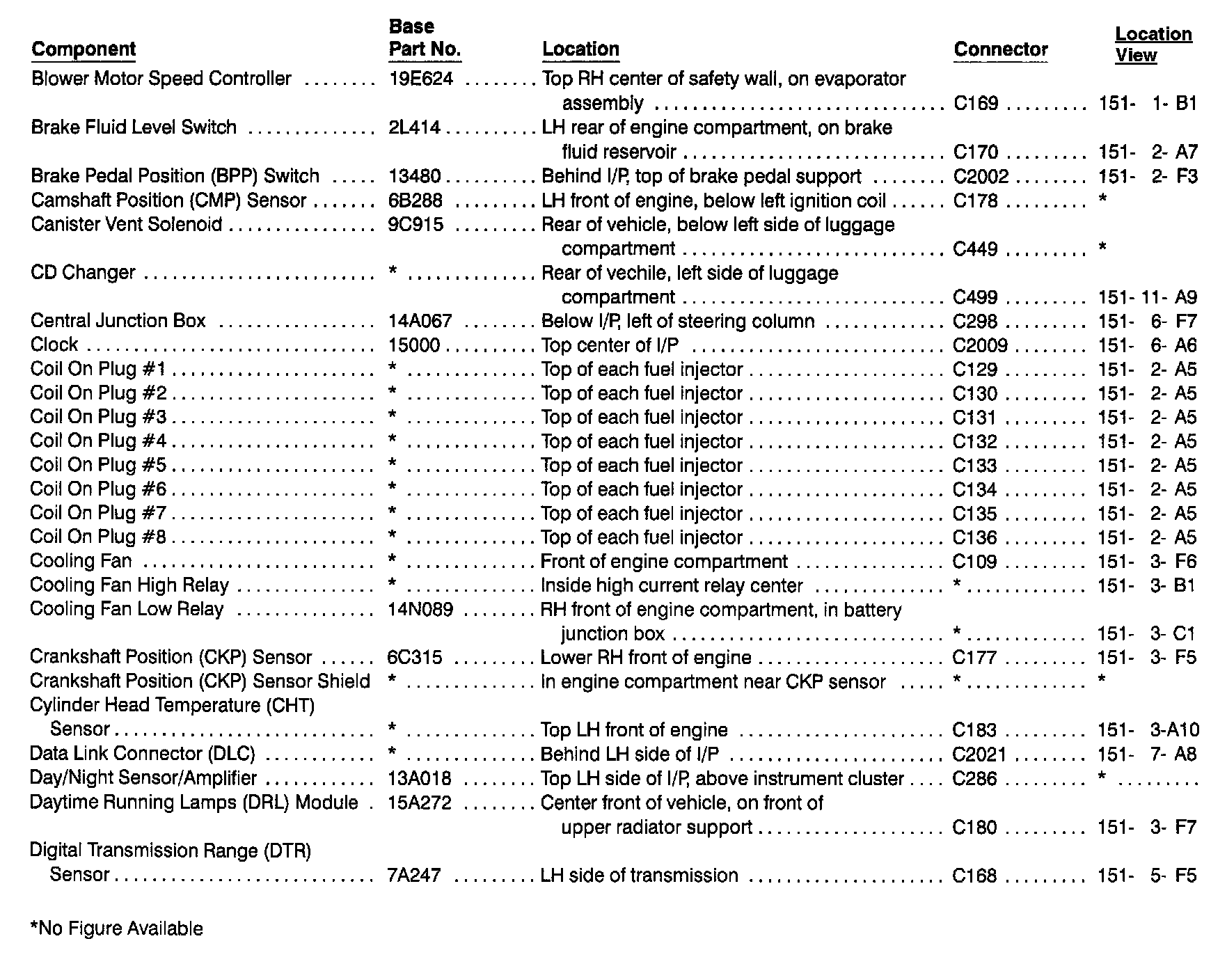

Bl-Di:

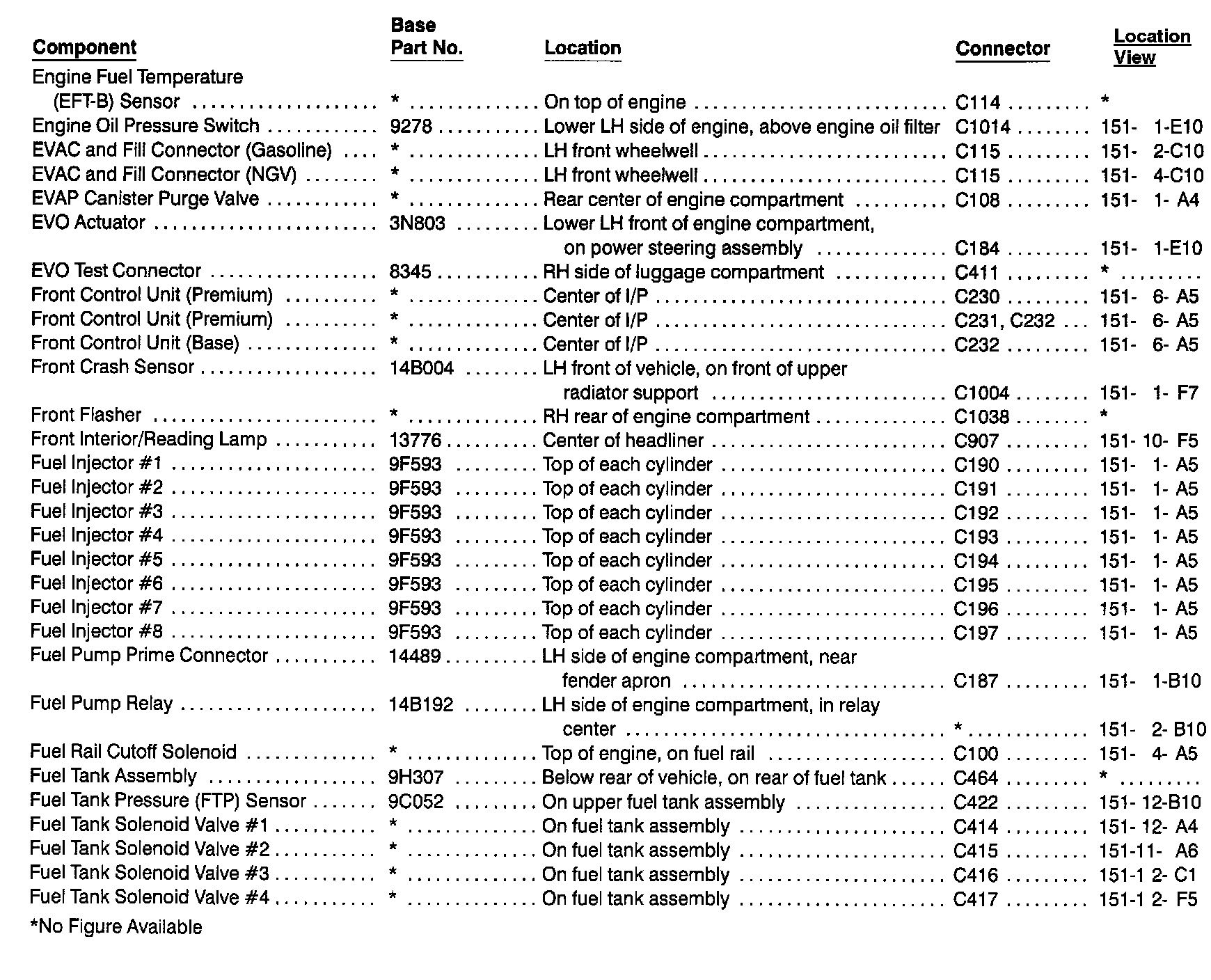

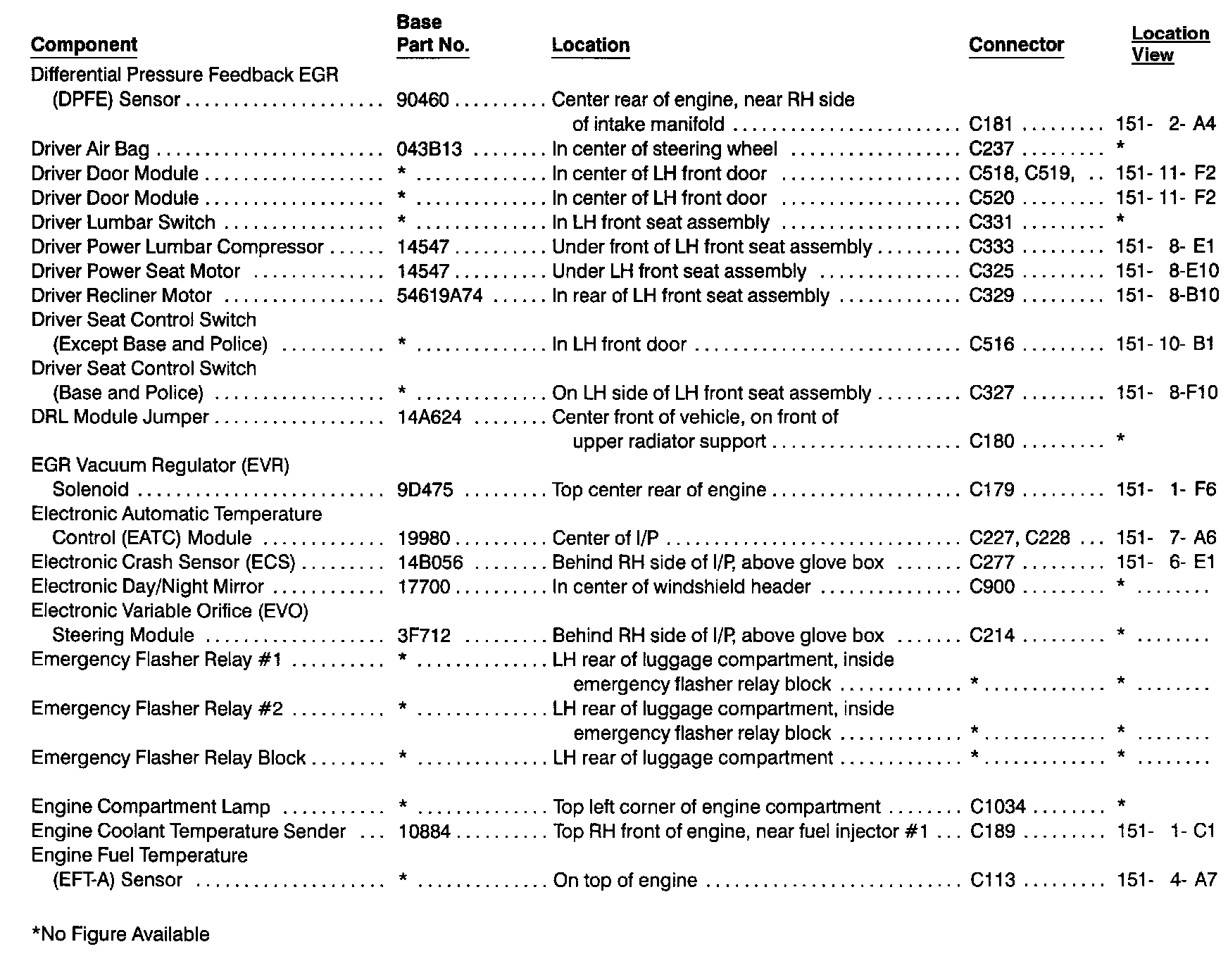

Di-En:
En-Fu:
Fu-Lf:

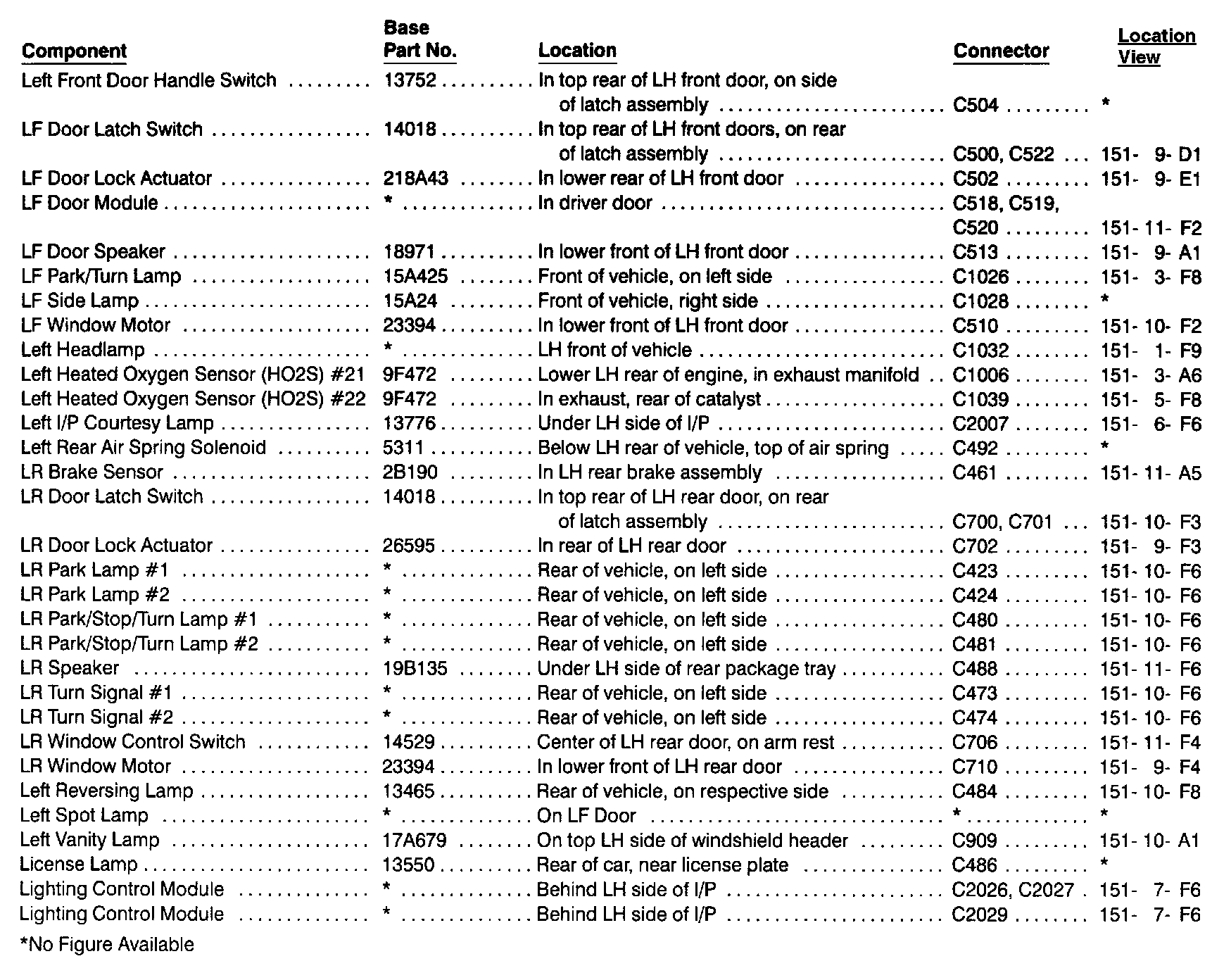

Le-Li:

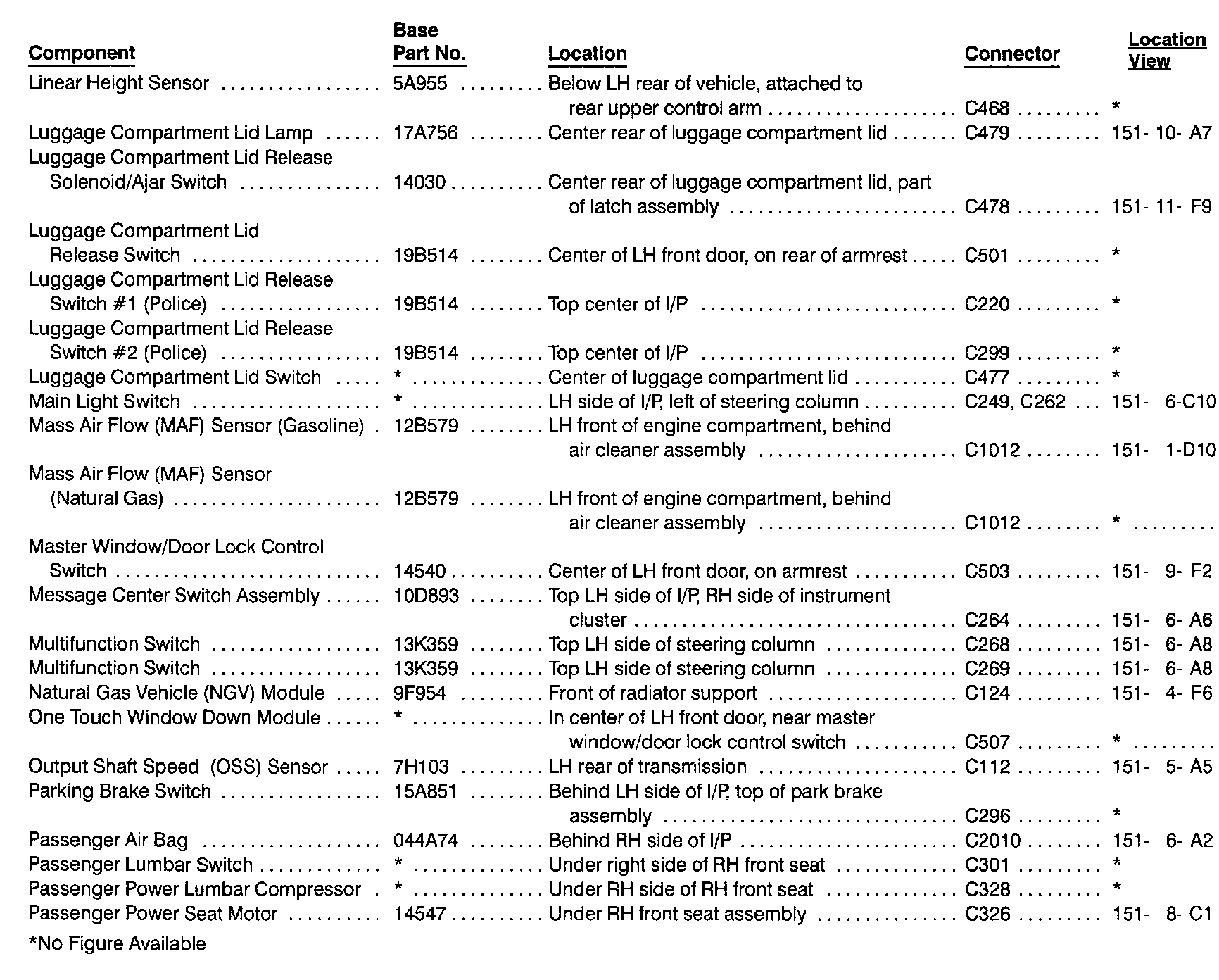

Li-Pa:
Pa-Ri:

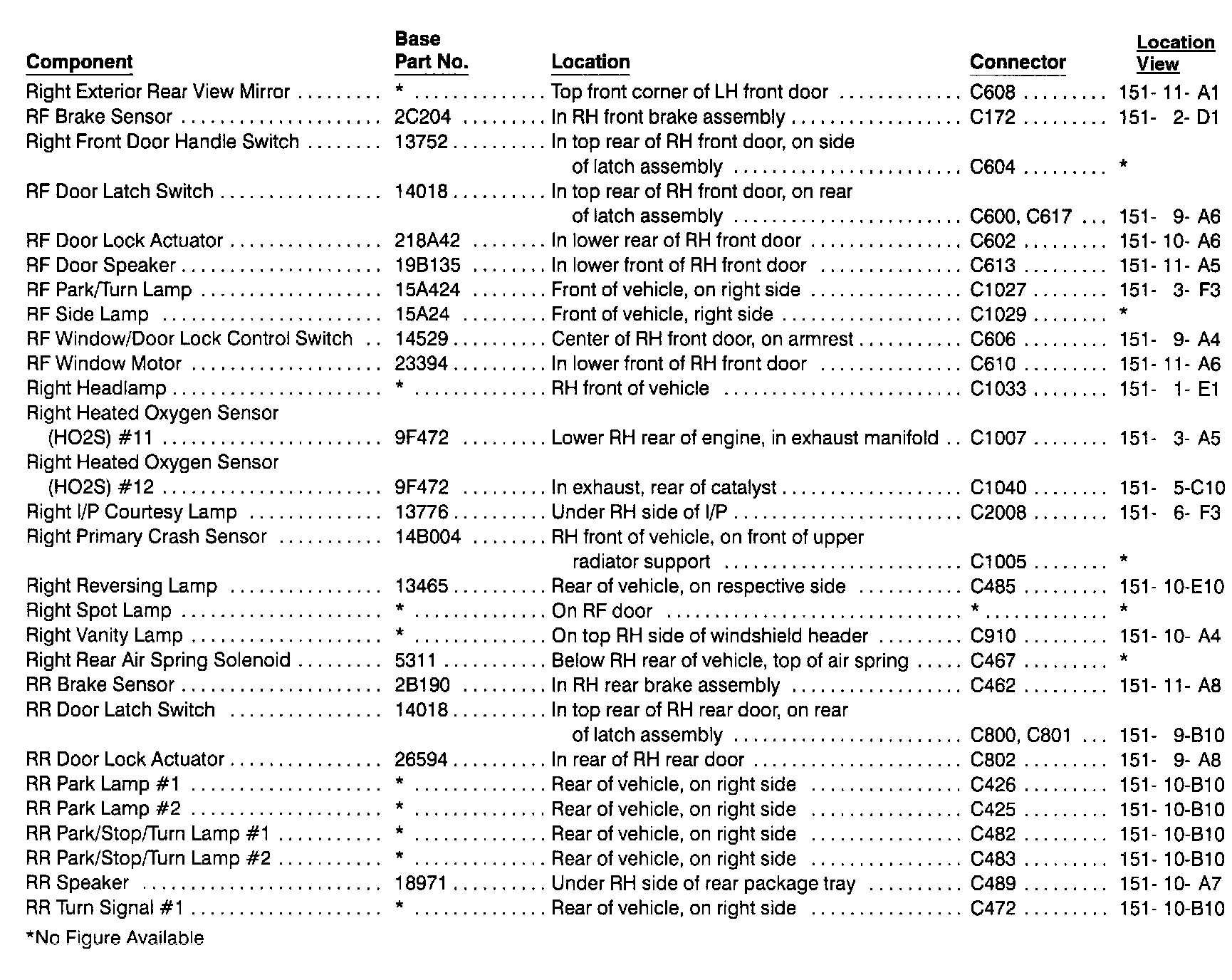

Ri-Rr:

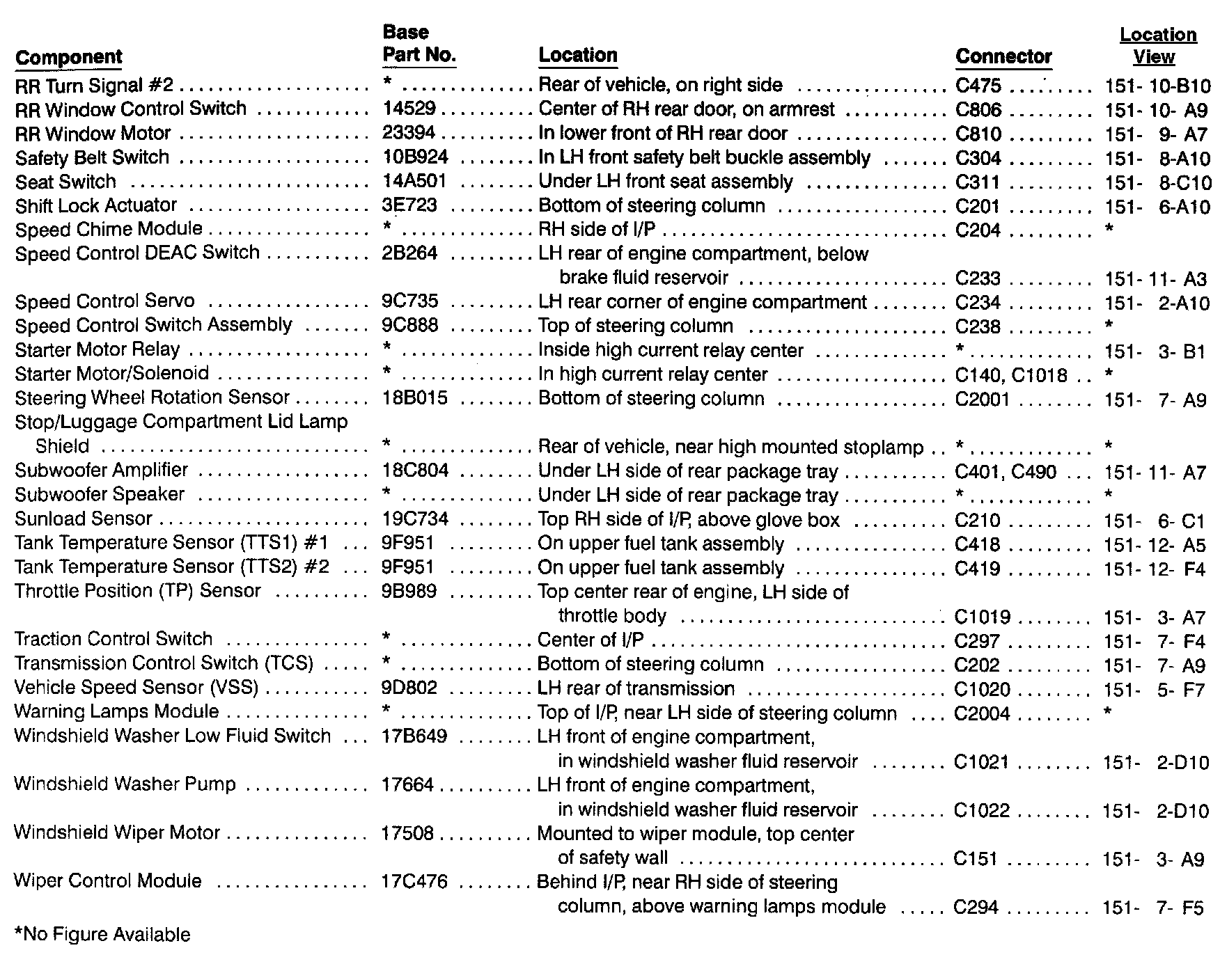

Rr-Wi:
