Cruise Control Servo Cable: Service and Repair

REMOVAL







1. Remove the engine cover.
1 Remove the nut.
2 Remove the engine cover.

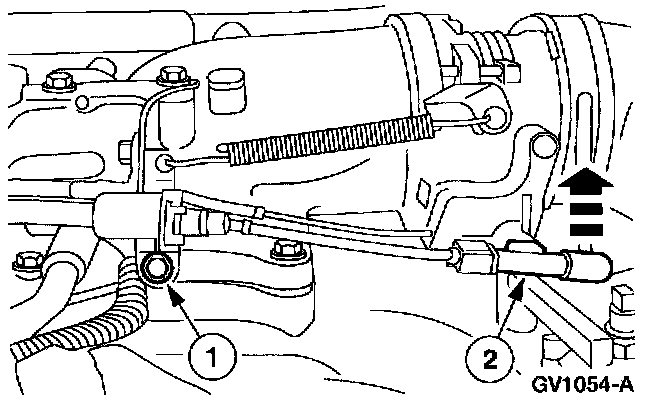

2. Remove the speed control actuator cable from the throttle lever.
1 Remove the bolt.
2 Remove the speed control actuator cable from the throttle lever.

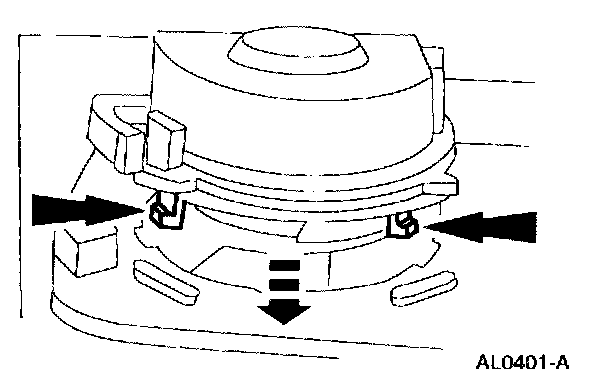

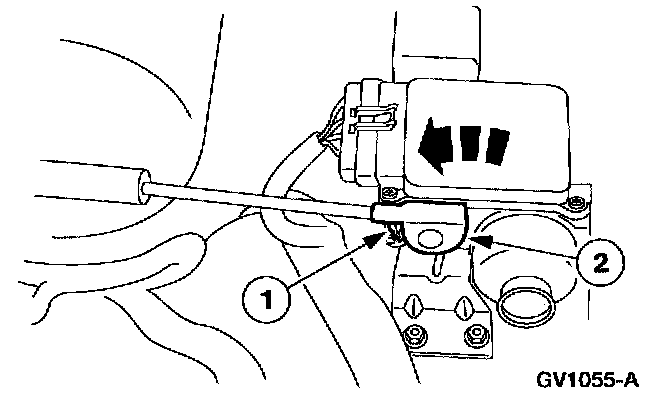

3. Remove the speed control actuator cable cap.
1 Depress the locking tab.
2 Remove the speed control actuator cable cap.

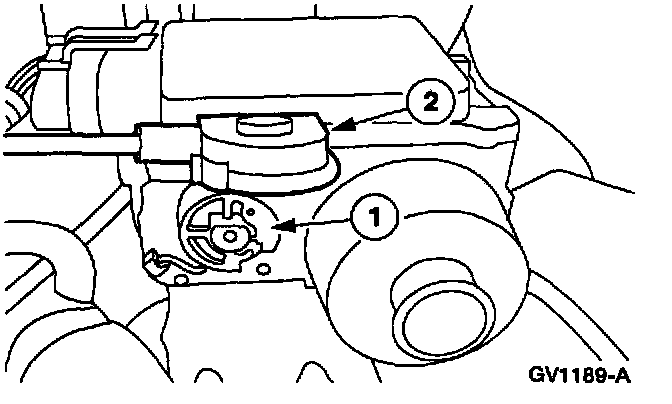

4. Remove the speed control actuator cable from the speed control servo pulley.
1 Remove the speed control cable slug.
2 Remove the speed control actuator cable.

INSTALLATION

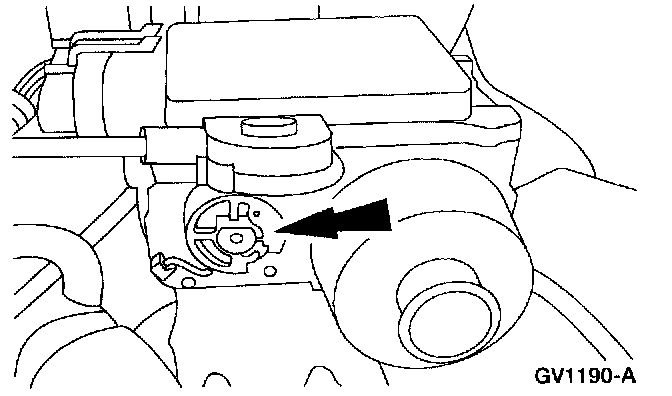

1. Insert the speed control cable slug into the speed control servo pulley slot.







2. Release the compressed spring while aligning the speed control actuator cable cap tabs with the slots in the speed control servo housing.

NOTE:
- Ensure the rubber seal is fully seated onto the speed control actuator cable cap.
- Incorrect wrapping of the speed control actuator cable around the speed control servo pulley may result in a high idle condition.

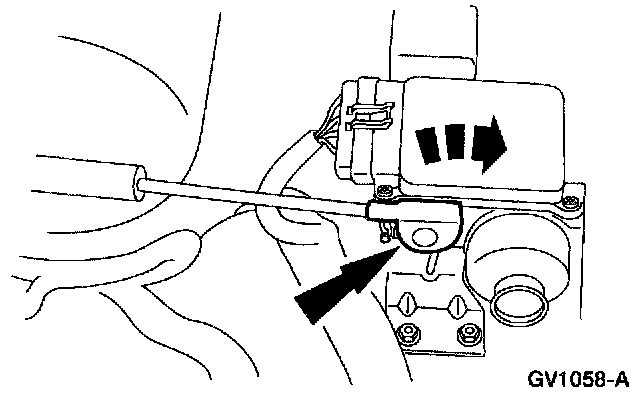

3. Rotate the speed control actuator cable cap until the locking tab engages.

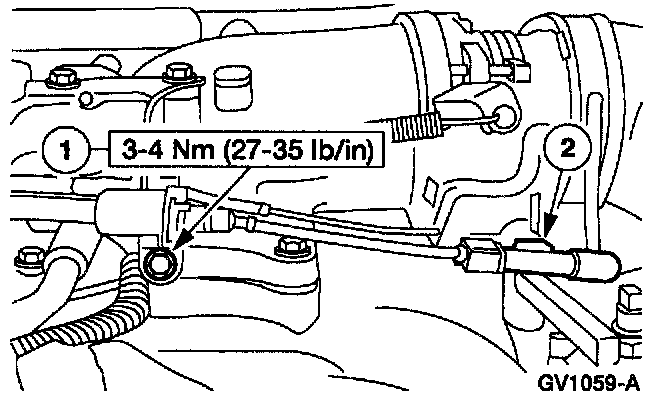

4. Connect the speed control actuator cable to the throttle lever.
1 Install the bolt.
2 Connect the speed control actuator cable to the throttle lever by snapping into place.
5. Adjust the speed control actuator cable.

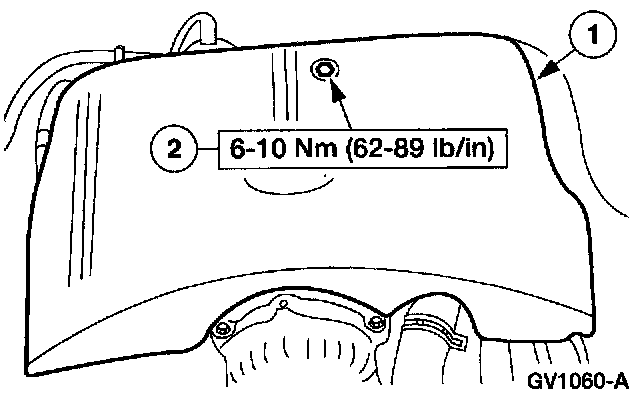

6. Install the engine cover.
1 Position the engine cover.
2 Install the nut.
