Home >> Mercury >> 1999 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Brakes and Traction Control >> Testing and Inspection >> Pinpoint Tests >> B - Brake Warning Indicator Always ON

B - Brake Warning Indicator Always ON

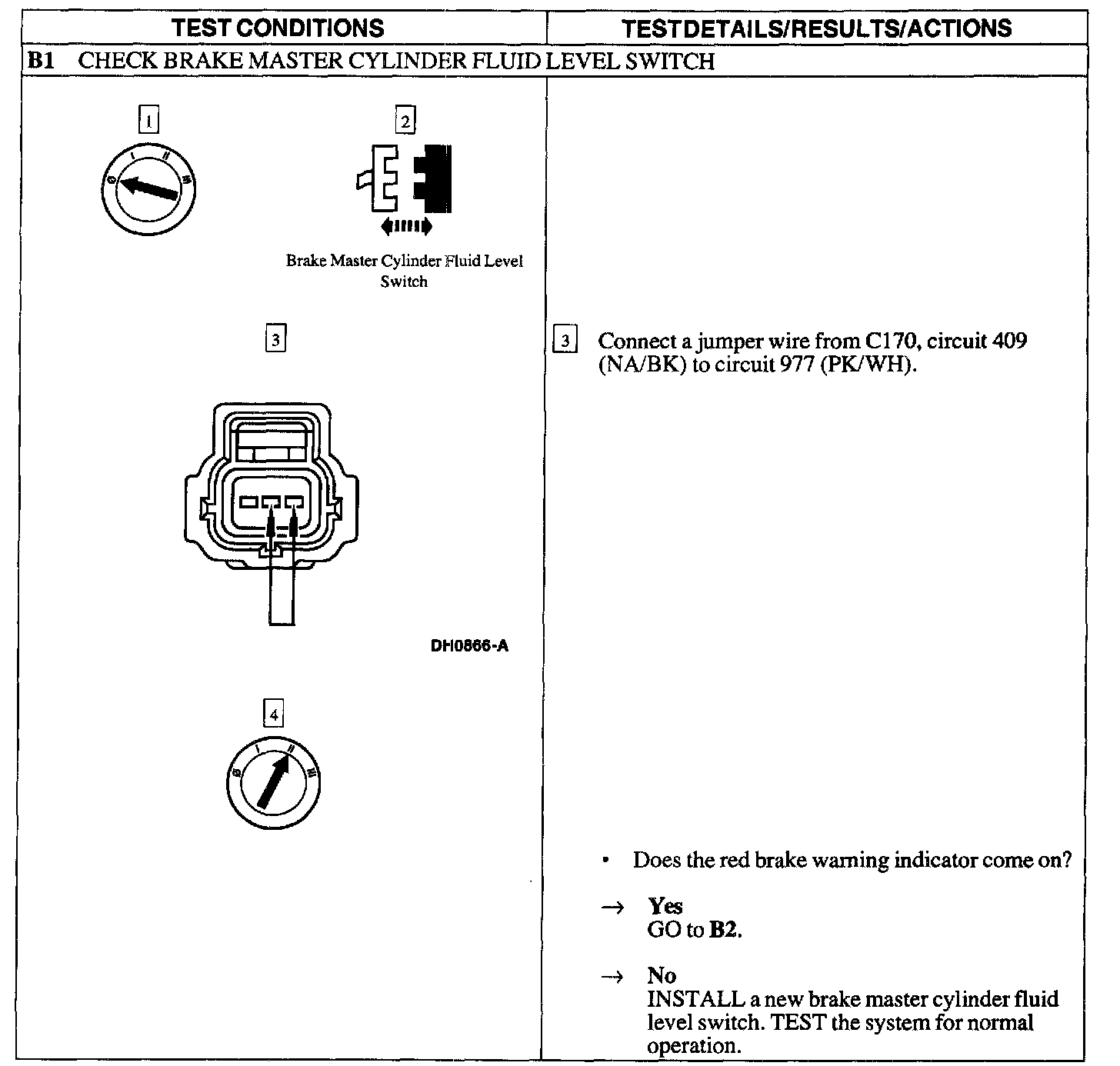

Test B1:

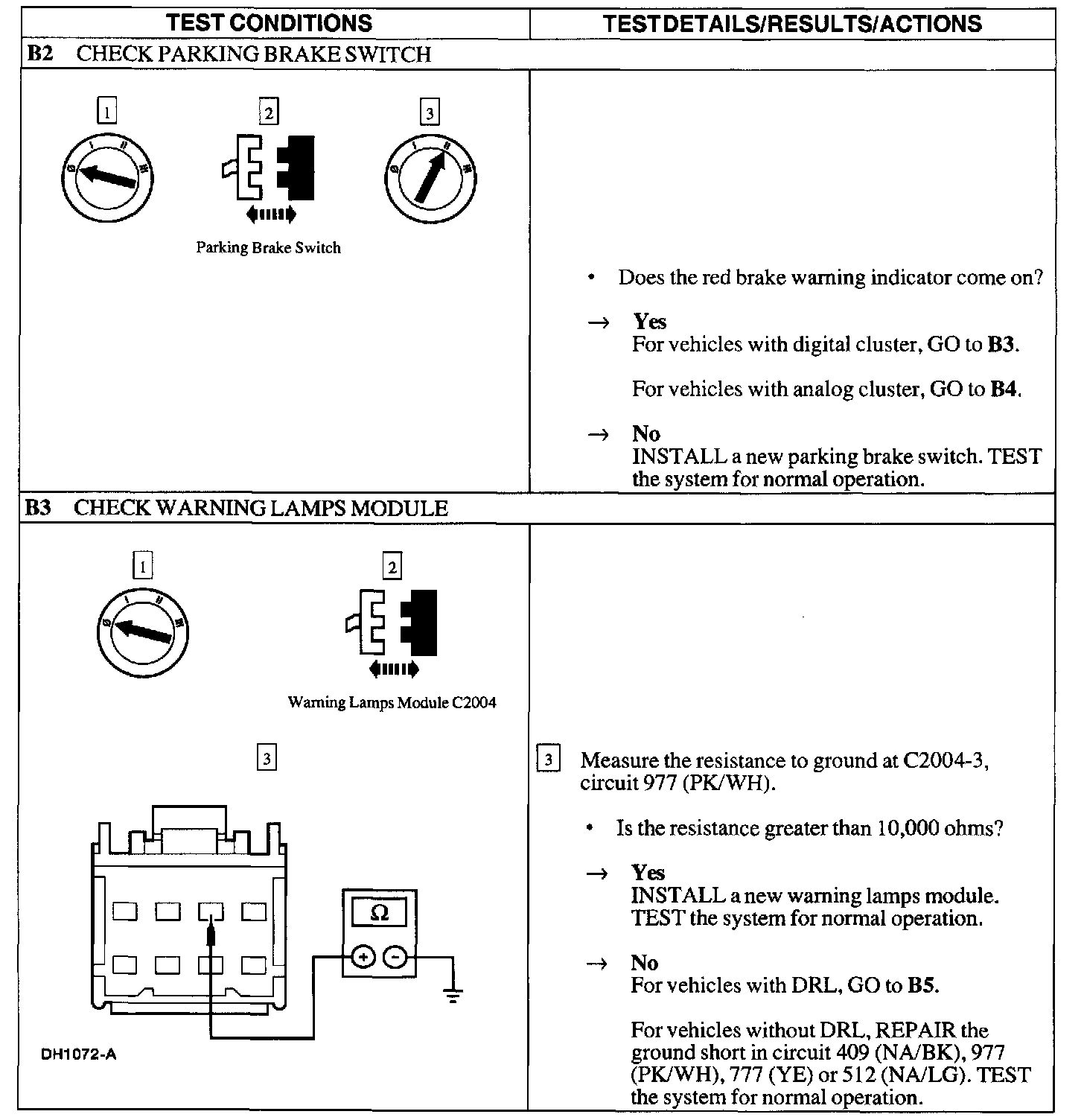

Test B2 - B3:

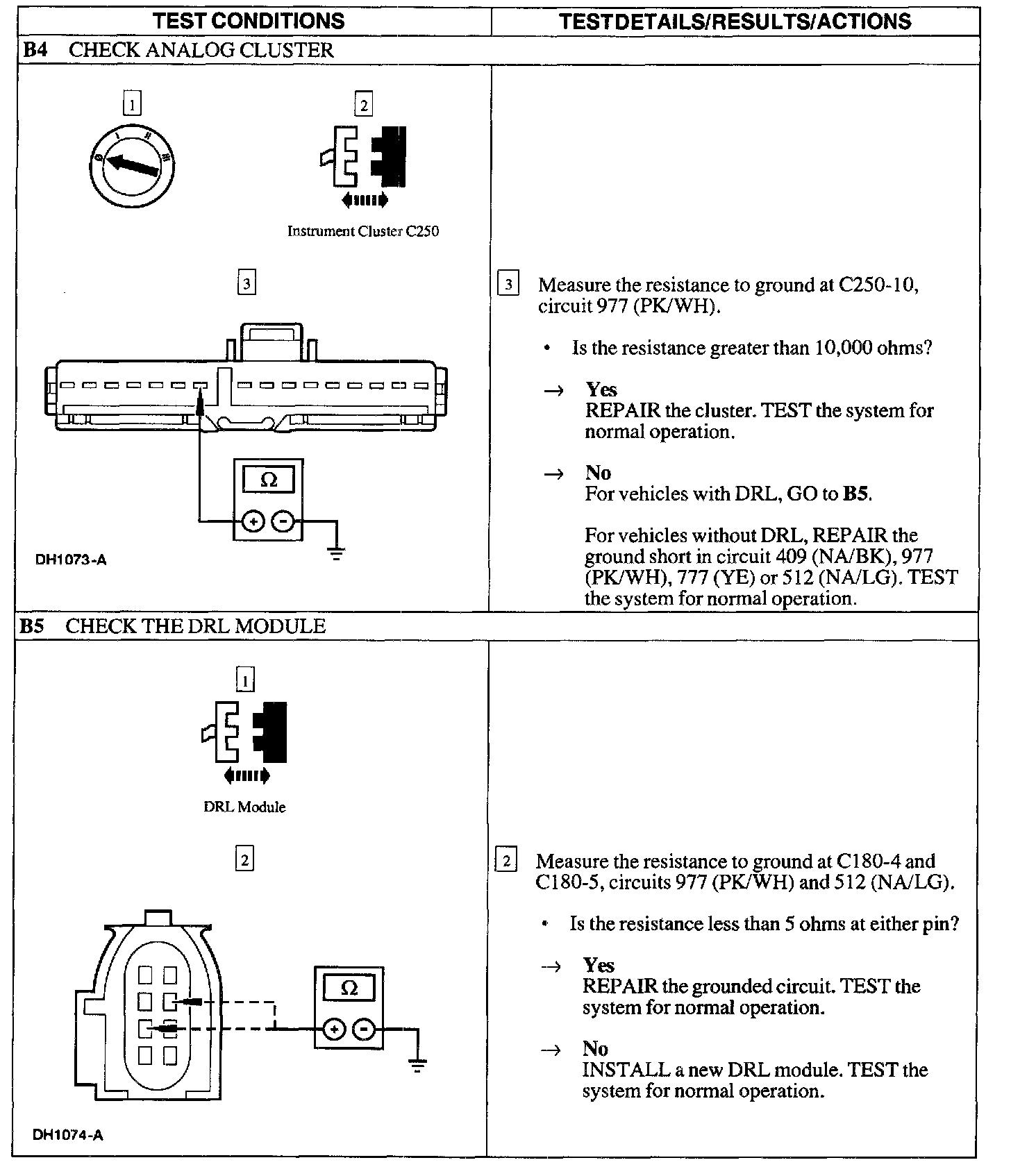

Test B4 - B5:
