Master Cylinder, Brakes

Removal





1. Disconnect the brake tubes.

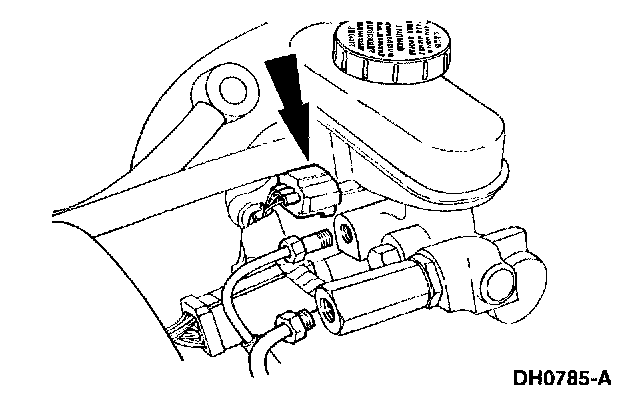

2. Disconnect the brake master cylinder fluid level switch connector.

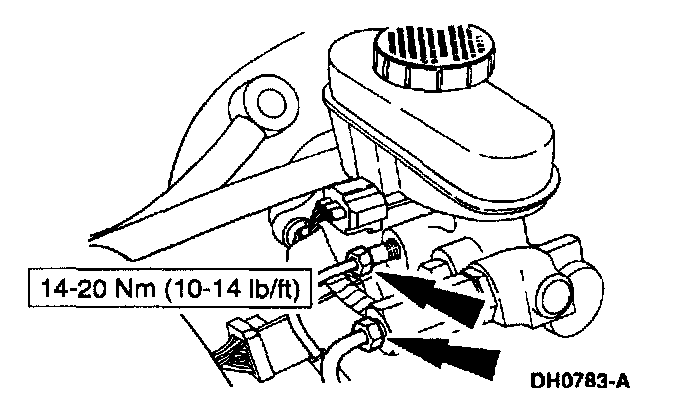

3. Remove the brake master cylinder nuts.

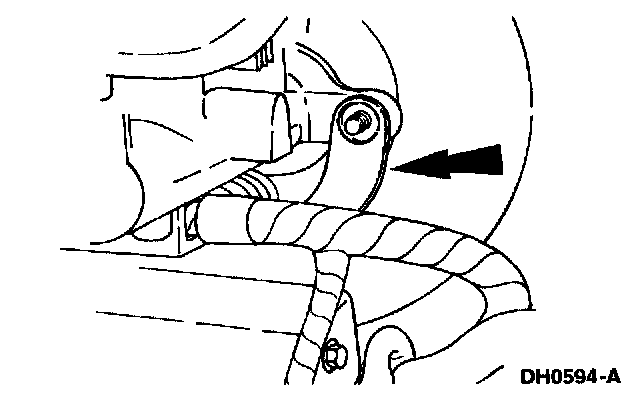

4. Remove the wiring harness bracket and position aside.
5. Remove the brake master cylinder.

Installation








1. Follow the removal procedure in reverse order,
- Bleed the brake system.
