Anchor Plate

Removal
1. Remove the pads.

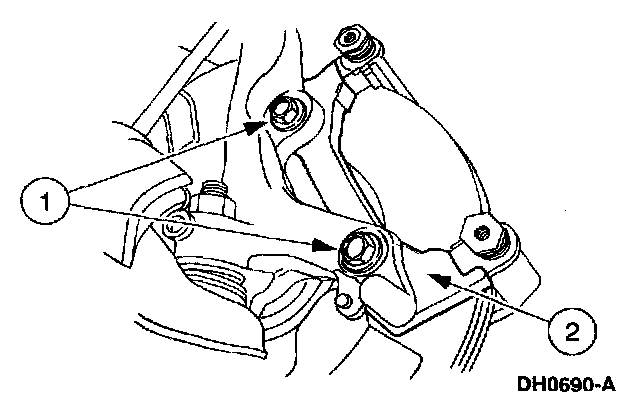

2. Remove the front disc brake caliper anchor plate.
1 Remove and discard the two front disc brake caliper anchor plate bolts.
2 Remove the front disc brake caliper anchor plate.

Installation

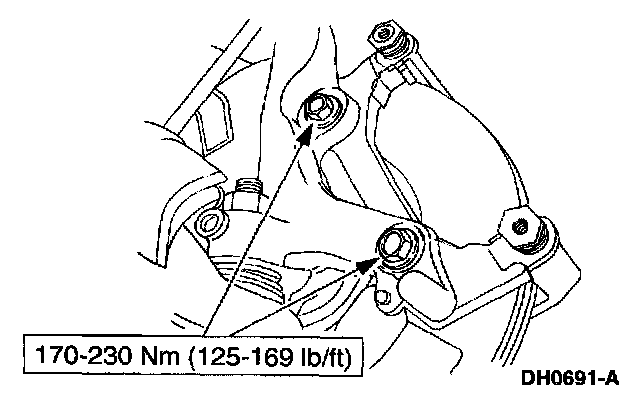

1. CAUTION: Use correct type and length bolts.

Follow the removal procedure in reverse order.
- Install new front disc brake caliper anchor plate bolts.
