Front

Removal
1. Remove the brake disc.

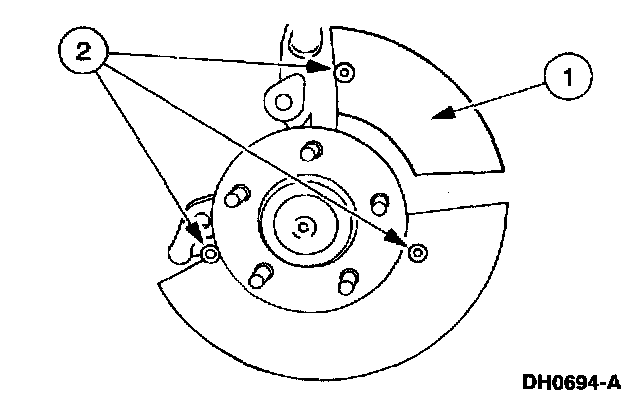

2. Remove the brake disc shield.
1 Drill out three brake disc shield rivets.
2 Remove the brake disc shield.

Installation





1. Install the brake disc shield.
1 Position the brake disc shield.
2 Secure with three rivets.

2. Install the brake disc.
