FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercury
>>
1999
>>
Grand Marquis V8-4.6L VIN W
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
D DTC C1145, C1155, C1165, C1175 Checking for Short / Open
D DTC C1145, C1155, C1165, C1175 Checking for Short / Open

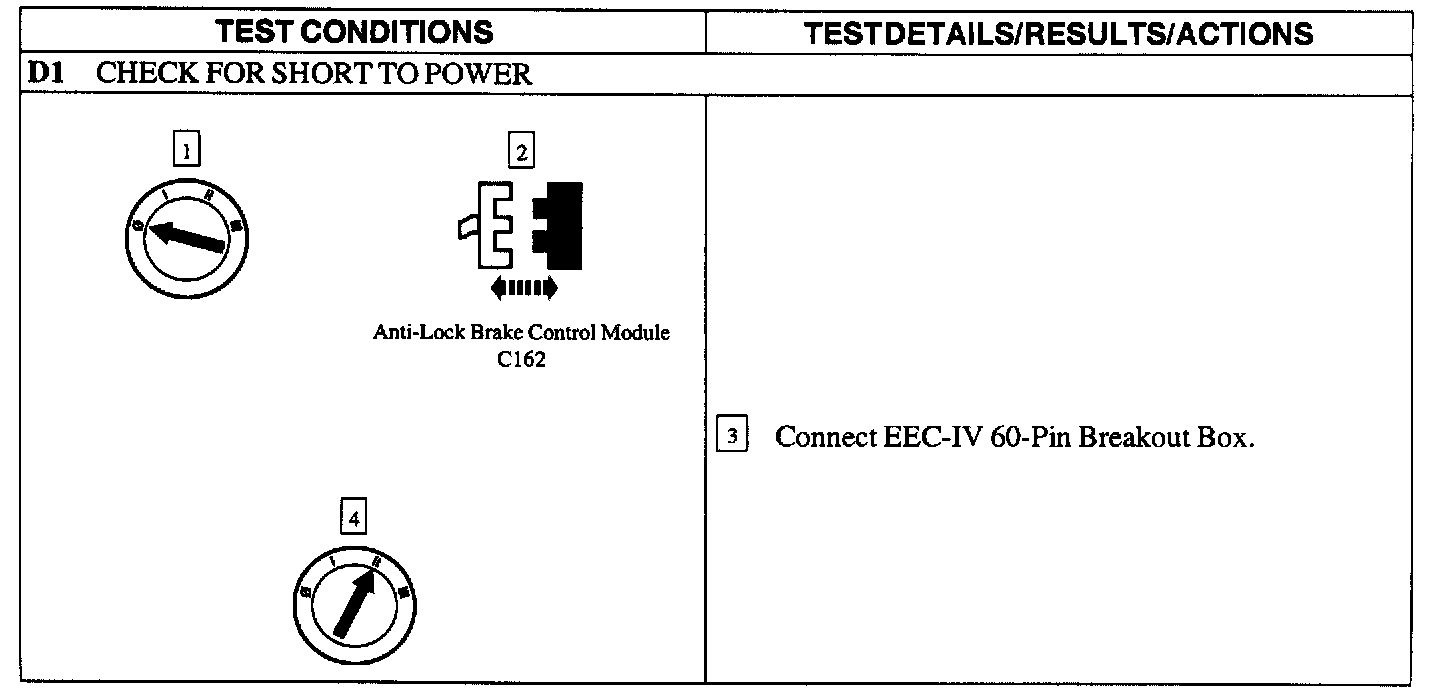

Test D1:
Test D1 - D2:

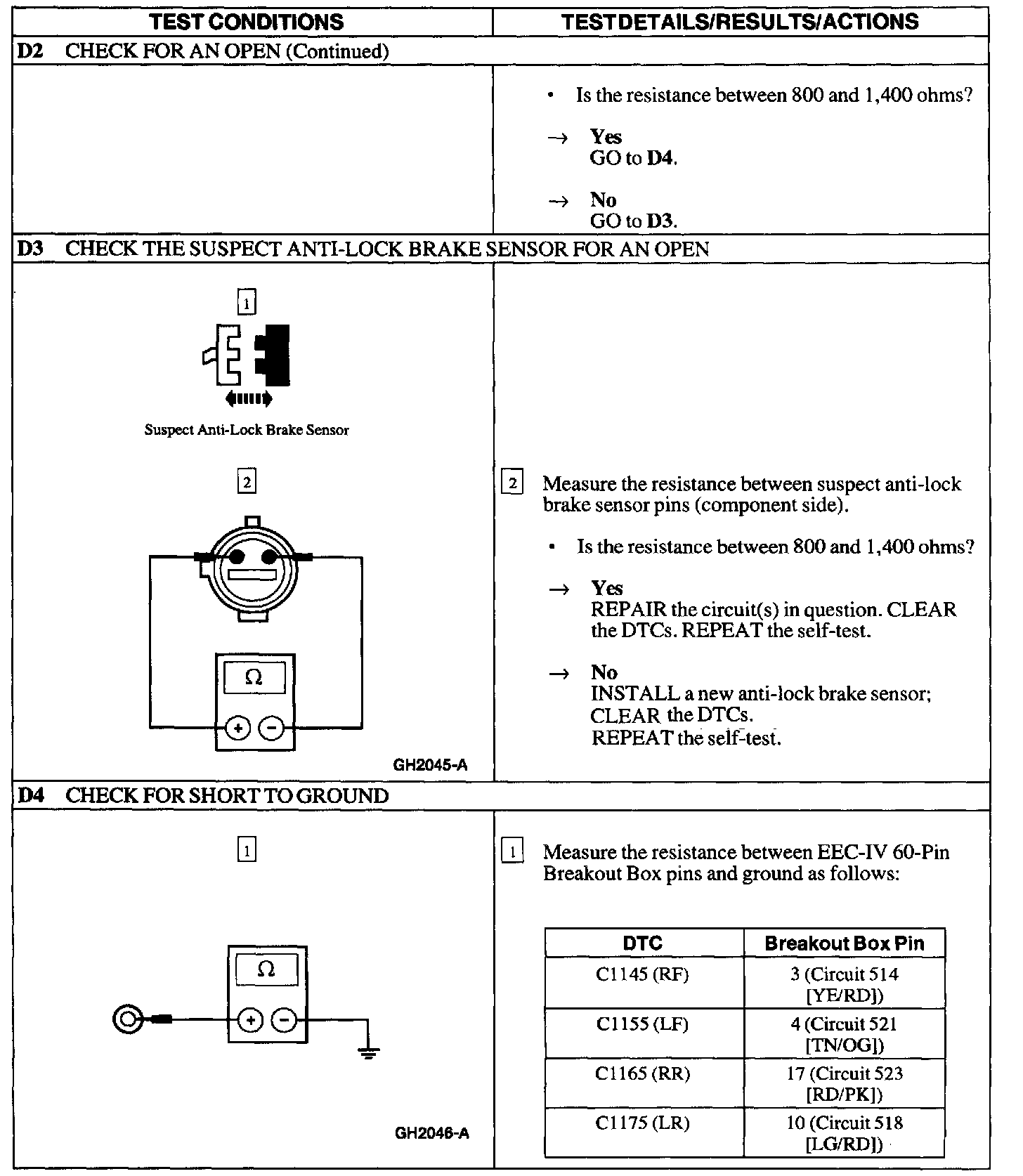

Test D2 - D4:

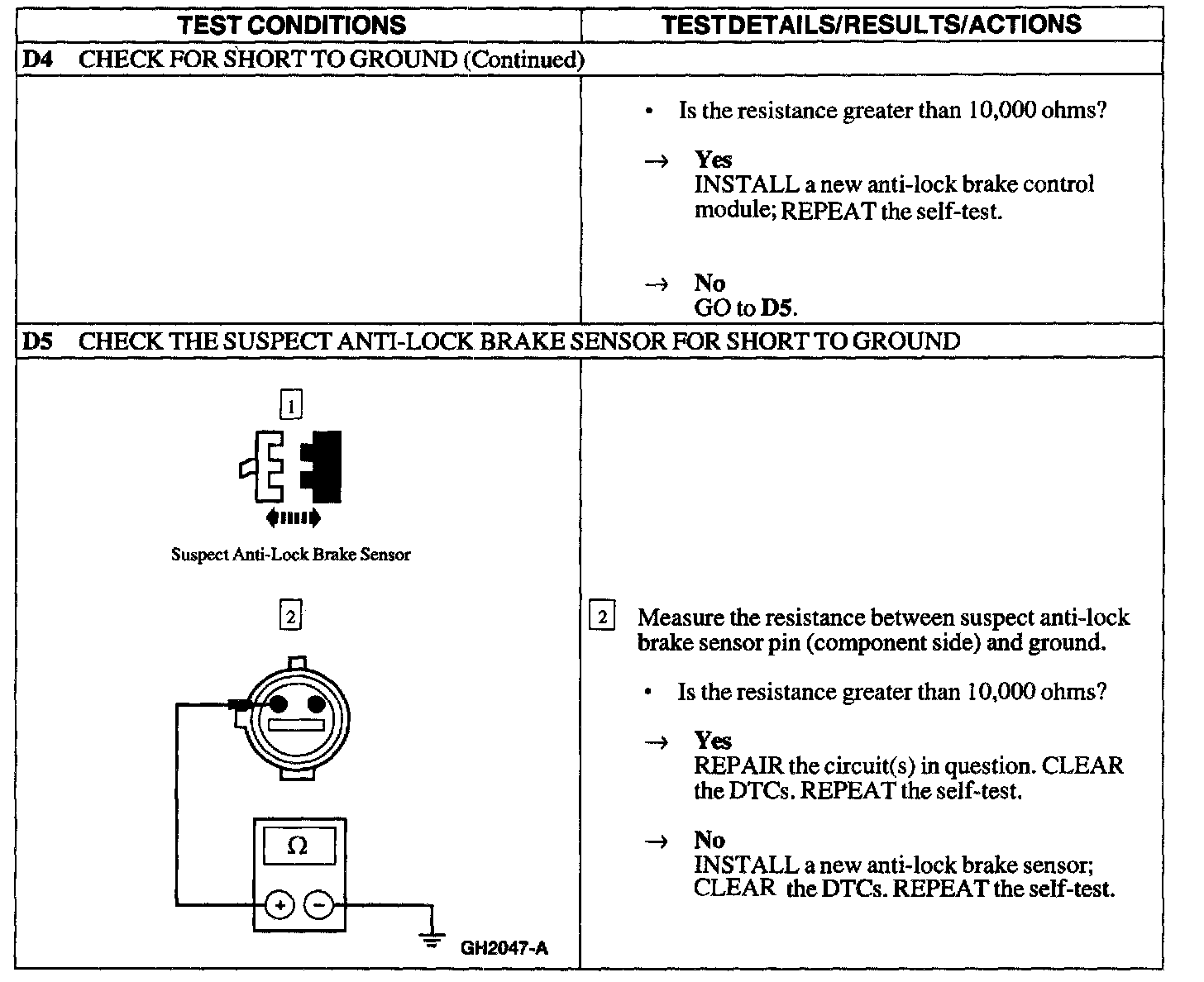

Test D4 - D5:
