Door Weatherstrip - Replacement Identification

Article No
99-13-12

06/28/99

DOOR - IDENTIFYING CORRECT REPLACEMENT DOOR WEATHERSTRIP

FORD:
1999 CROWN VICTORIA

MERCURY:
1999 GRAND MARQUIS

ISSUE
This article is published to help identify correct replacement 1999 model door sealing weatherstrip. A mid-year change to improve the door sealing weatherstrips introduced new seals. Parts affected include the primary seal on the doors, weatherstrip seal on the door opening, and the roof side weatherstrip


























ACTION

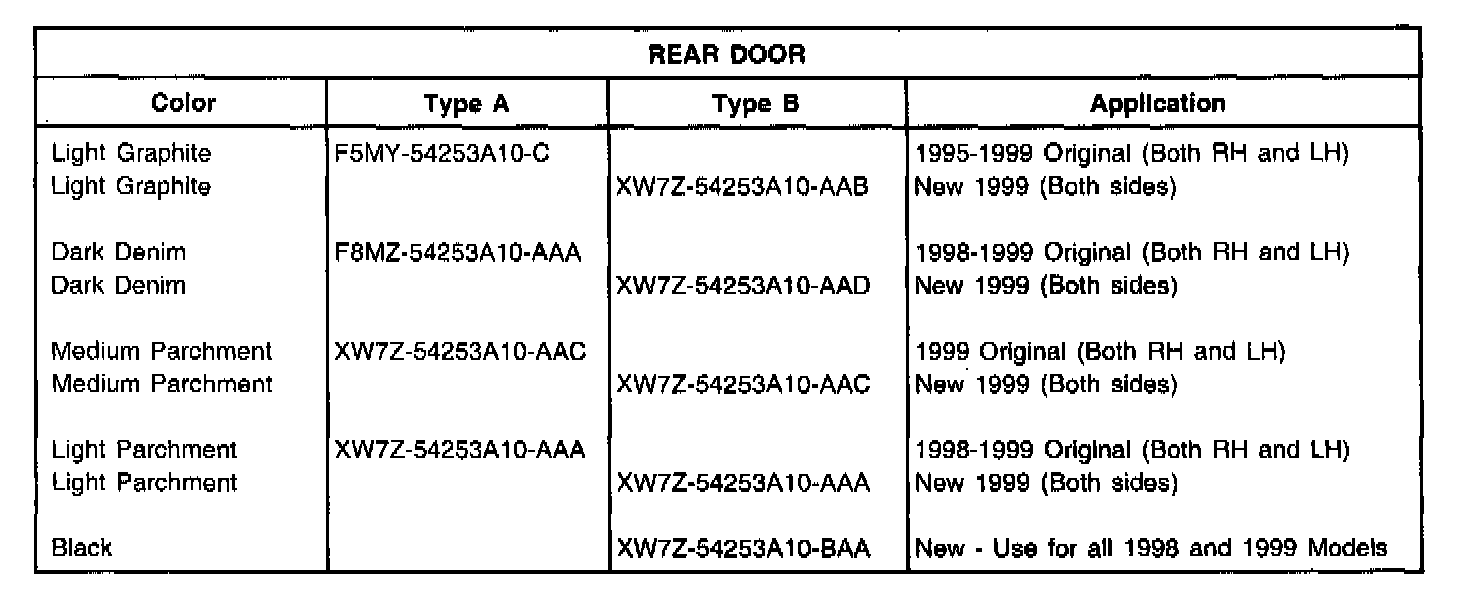

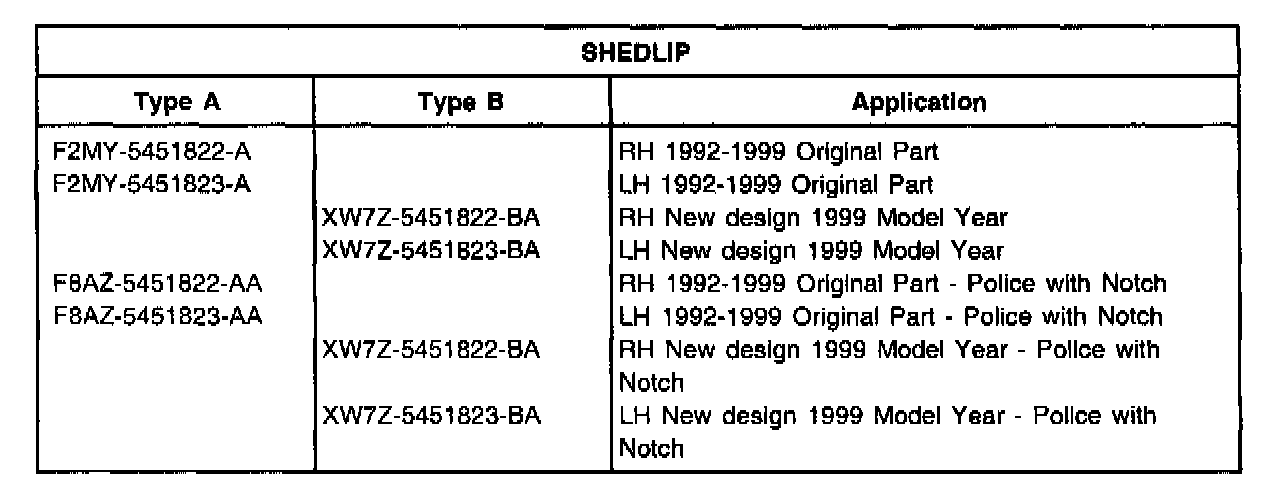

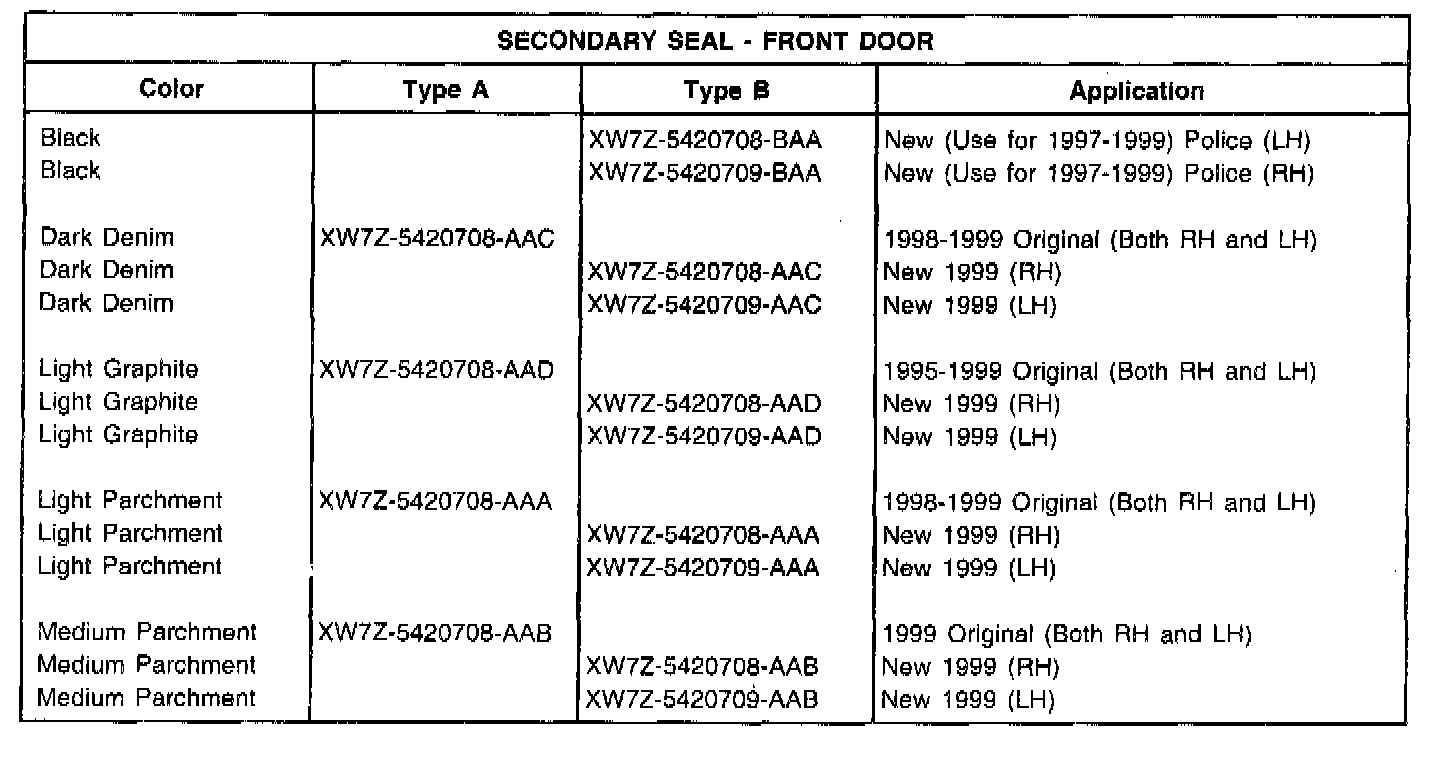

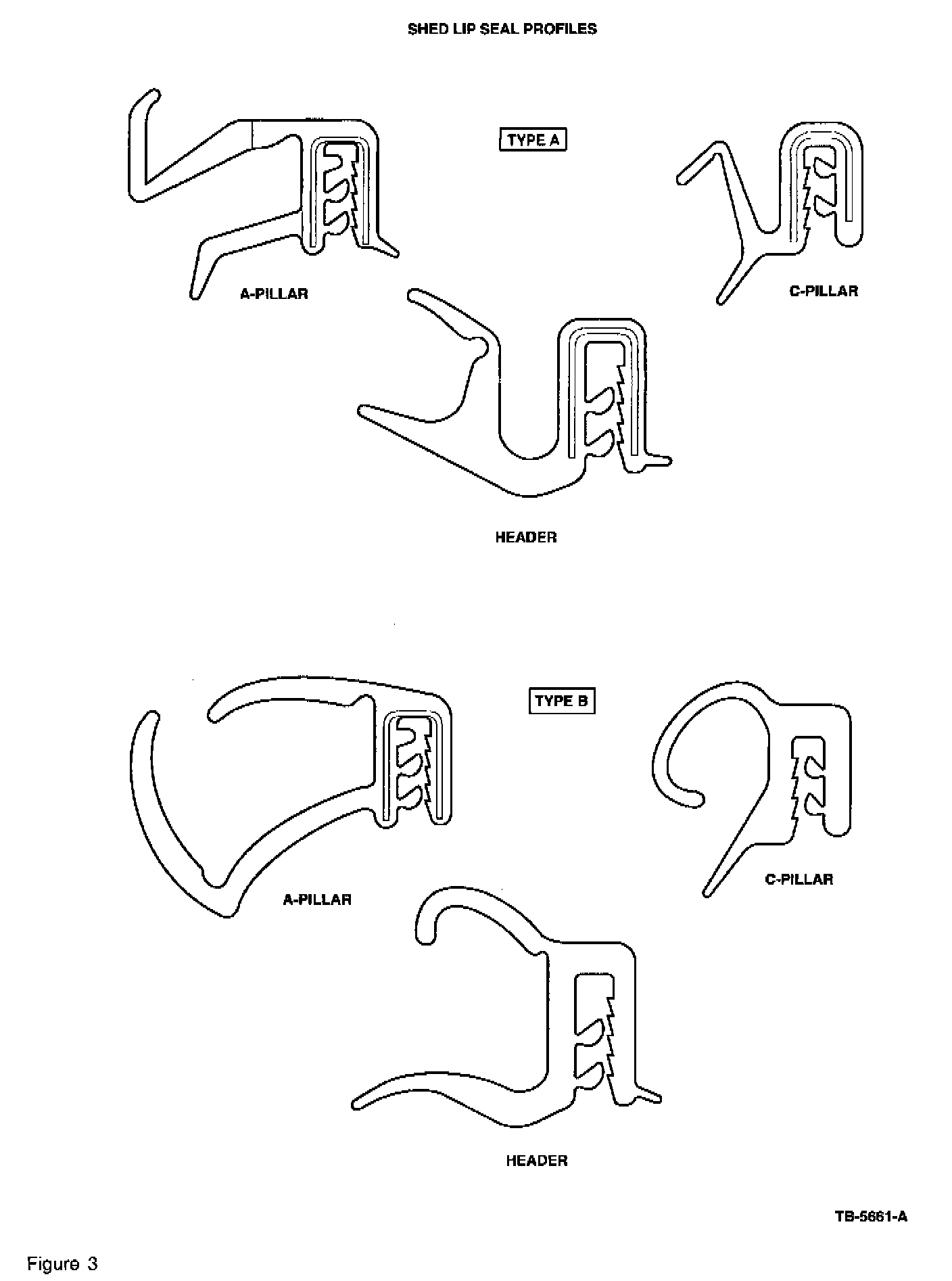

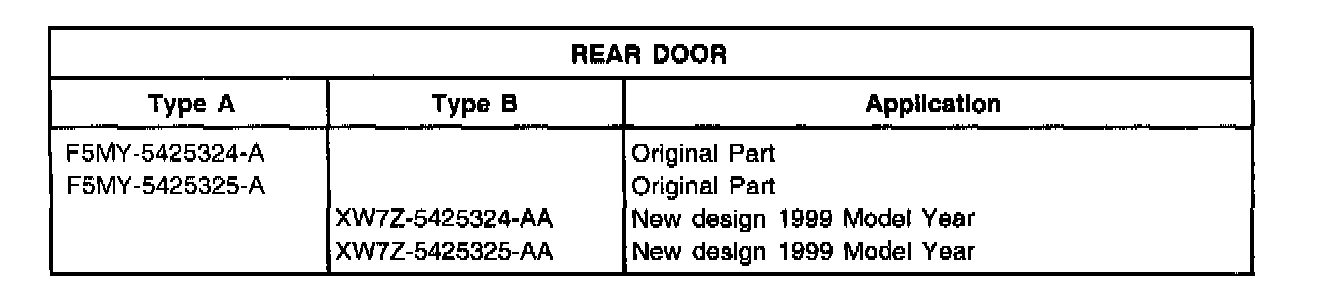

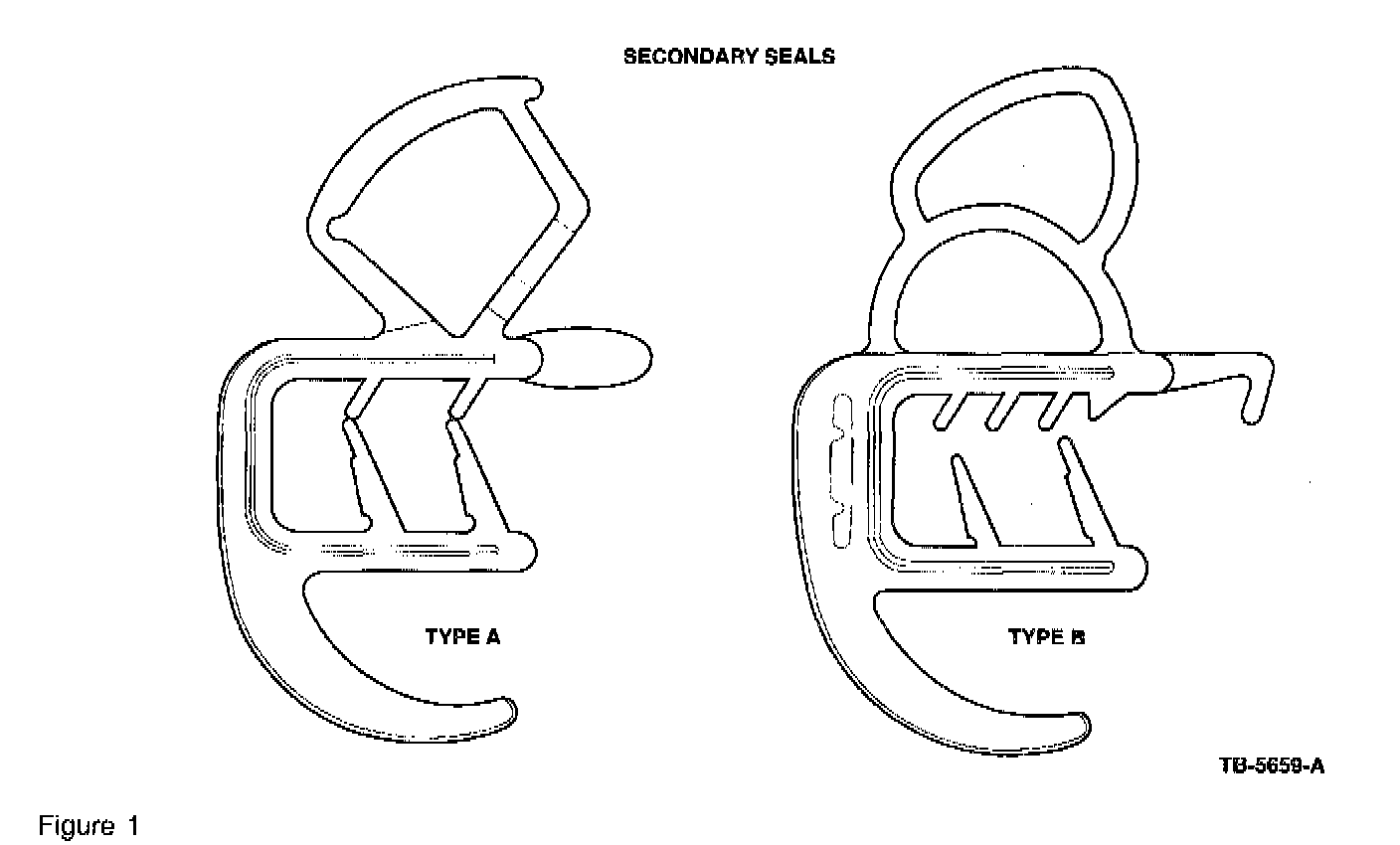

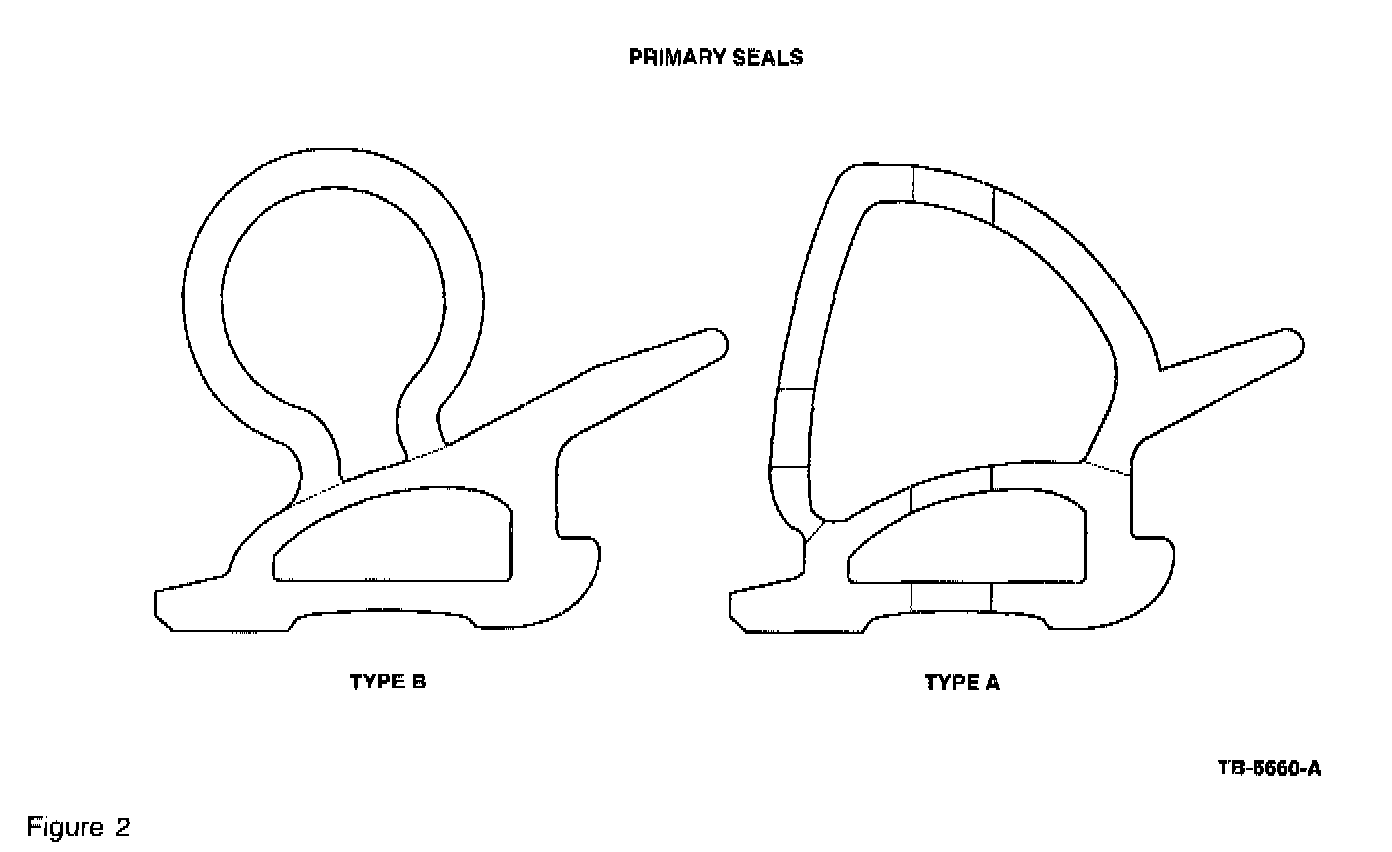

Correctly identify the weatherstrip on the vehicle and assist in determining replacement parts. Figures 1, 2 and 3 provide cross-sections of the original and new weatherstrips and should be used for comparison. The following Tables should be used to determine the correct service replacement part.

NOTE
MIXING ORIGINAL AND NEW PARTS CAN CAUSE WINDNOISE DEGRADATION OR HIGH DOOR CLOSING EFFORTS.

OTHER APPLICABLE ARTICLES: NONE
WARRANTY STATUS: INFORMATION ONLY
OASIS CODES: 110000, 701000
