Recliner

REMOVAL

NOTE: The power seat backrest recliner assembly must be installed as a new unit. Repair of the power seat backrest recliner assembly components is not acceptable and should not be attempted.

1. Remove the seat.
2. Remove the seat backrest.

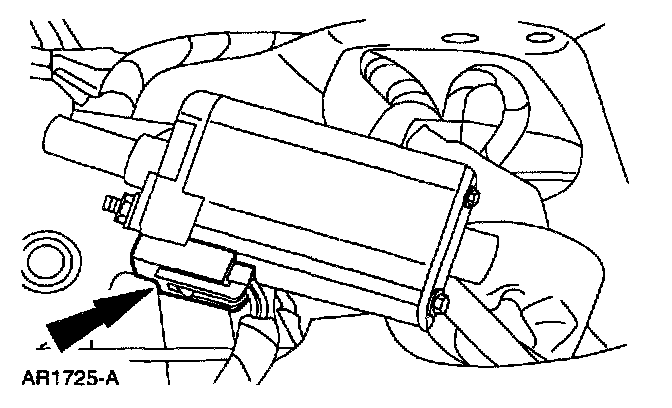

3. Disconnect the connector.

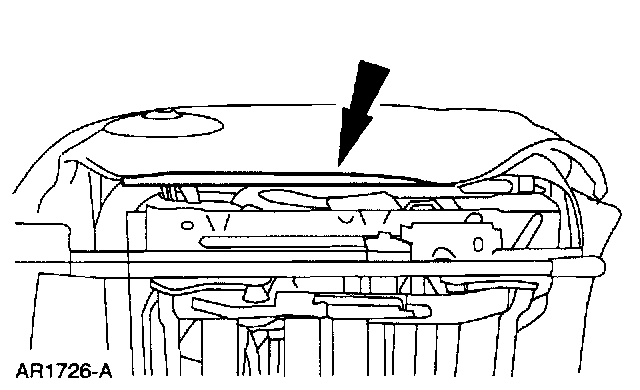

4. Release the J retainer.







5. Release the J retainer.

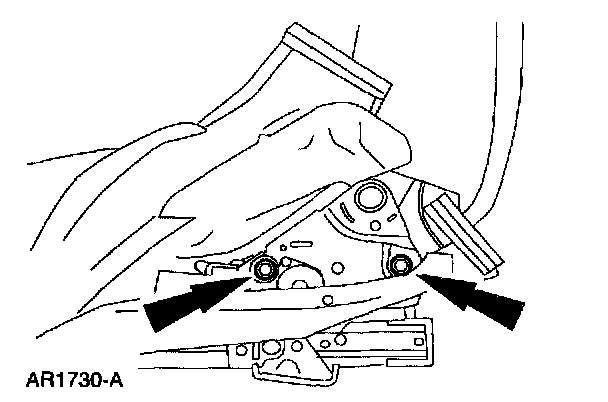

6. Remove the bolts.







7. Remove the bolts.


INSTALLATION












1. To install, reverse the removal procedure.
2. Check the restraint system for correct operation.
