Front Power Seat

REMOVAL
1. Move the driver seat fully forward.

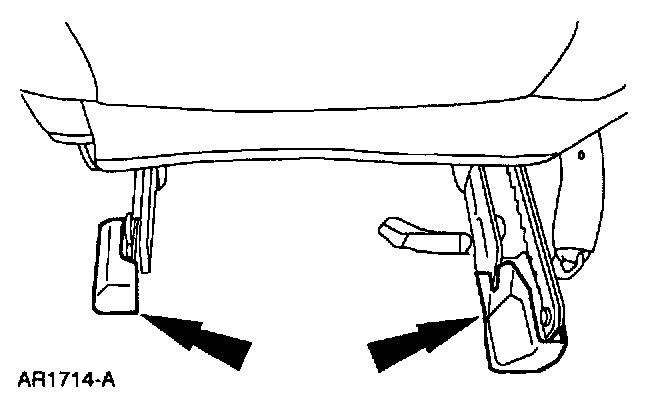

2. Remove the rear front seat track covers.

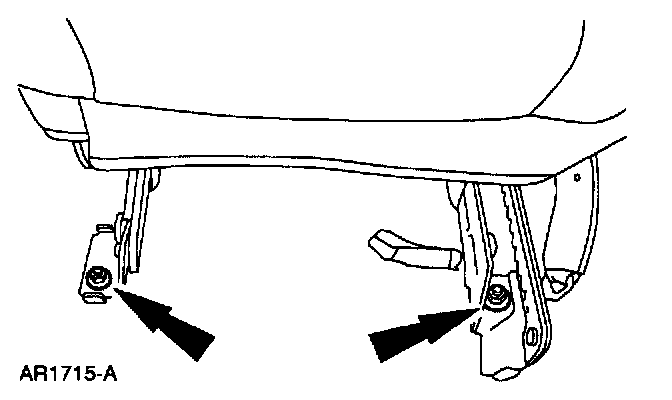

3. Remove the nuts.
4. Move the seat driver seat fully rearward.

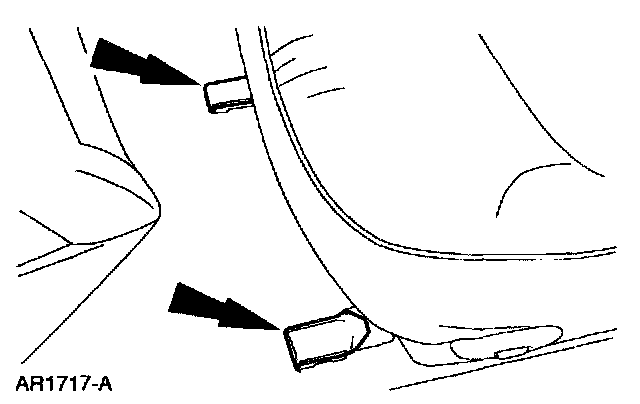

5. Remove the seat track front covers.

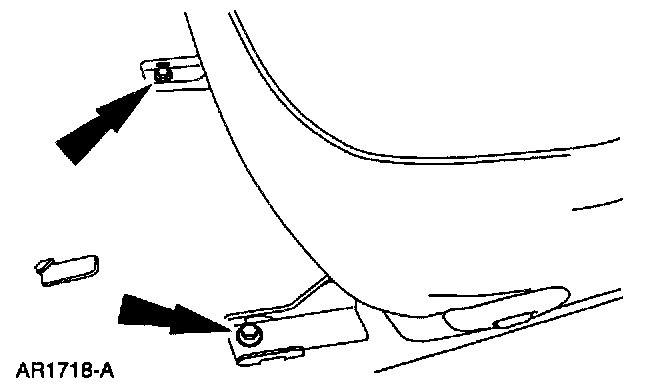

6. Remove the bolts.
7. Disconnect the battery.

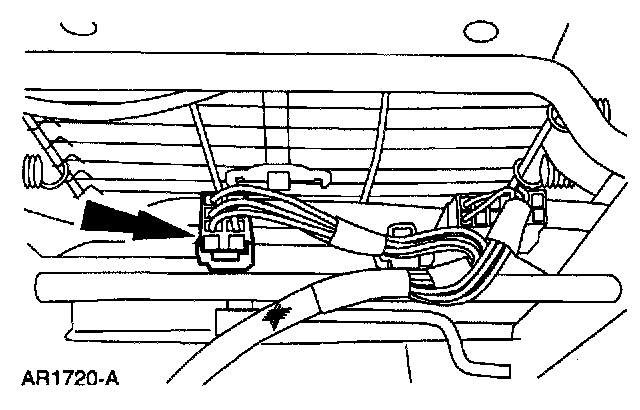

8. Disconnect the connector.
9. Remove the seat from the vehicle.

CAUTION: Use care when handling the seat and track assembly. dropping the assembly or sitting on a seat not secured in the vehicle may result in damaged components.

INSTALLATION

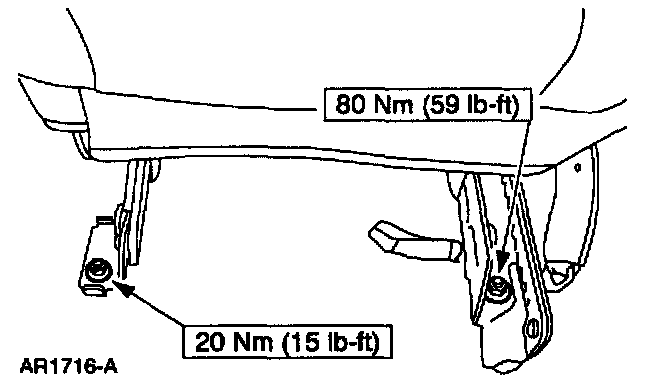

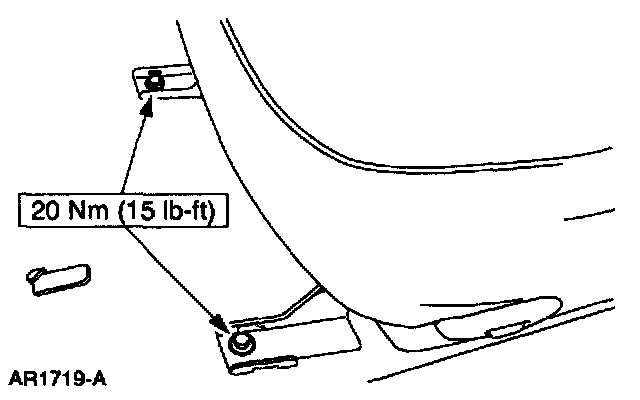

1. To install, reverse the removal procedure.
2. Check the restraint system for correct operation.
