Seat - Front Seat Backrest, Pad and Frame

DISASSEMBLY
1. Remove the seat.

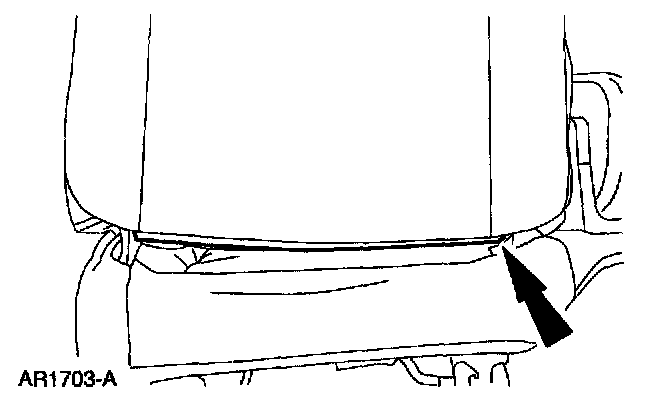

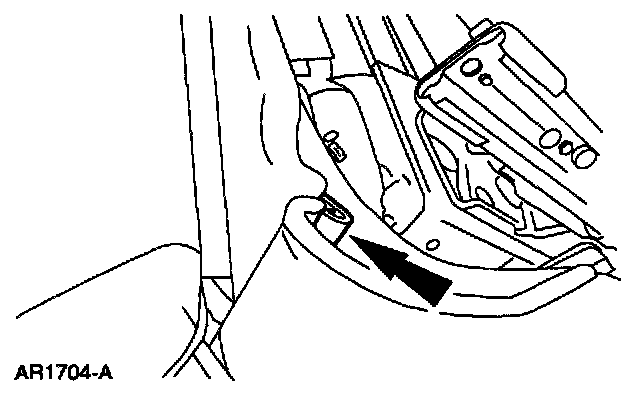

2. Release the J retainer.







3. Release the J retainer.

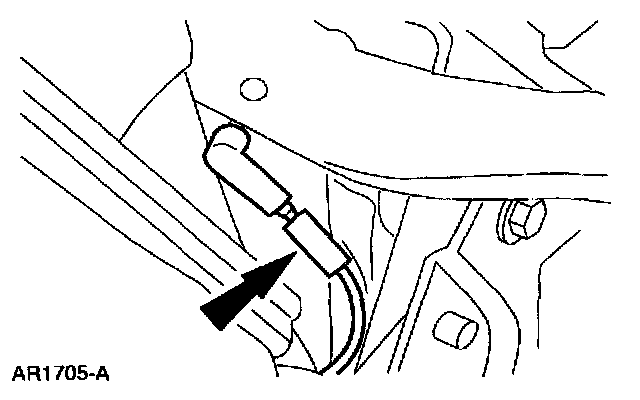

4. Disconnect the connector.

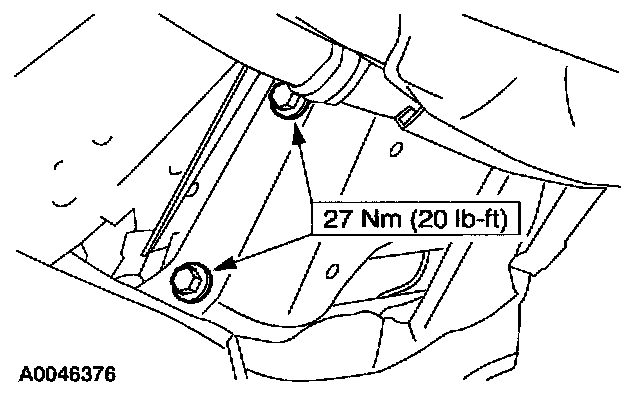

5. Remove the bolts.

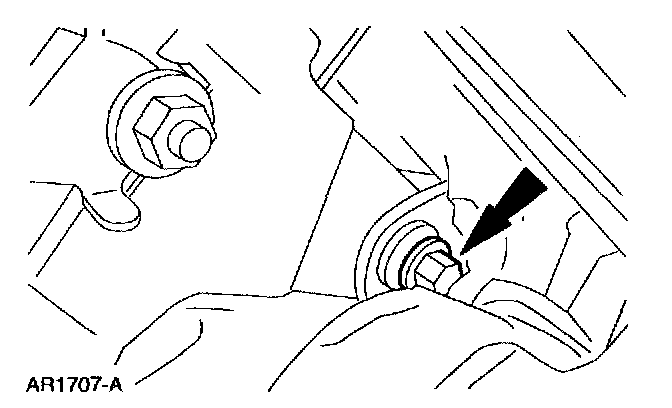

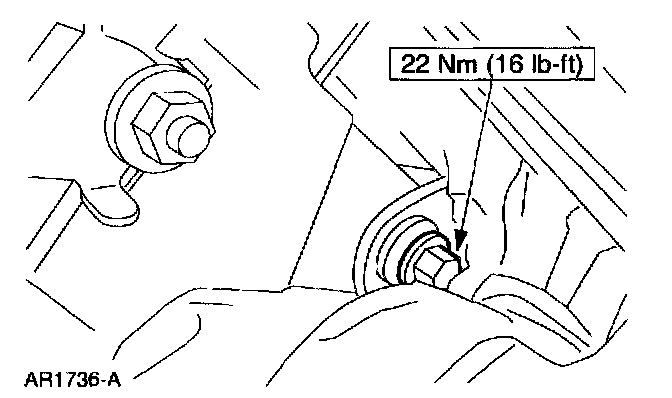

6. Remove the bolt.

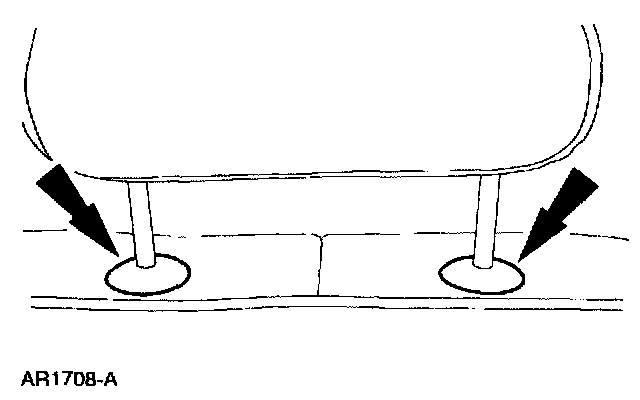

7. Remove the headrest retainer covers.

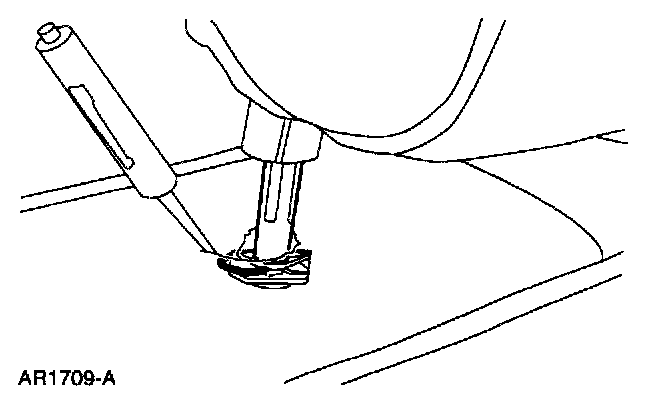

8. Release the clip.

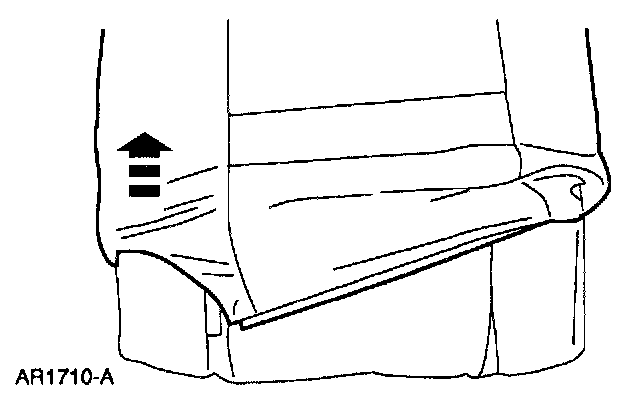

9. Remove the trim cover.

ASSEMBLY












1. To assemble, reverse the disassembly procedure.
2. Check the restraint system for correct operation.
