Seat - Front Cushion and Frame

DISASSEMBLY
1. Remove the seat.
2. Remove the seat track.

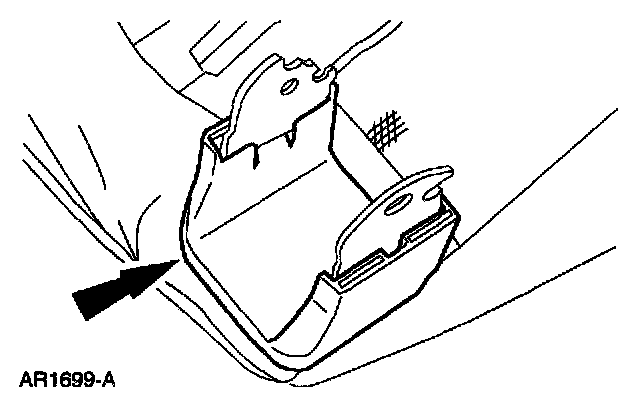

3. Remove the lumbar motor.

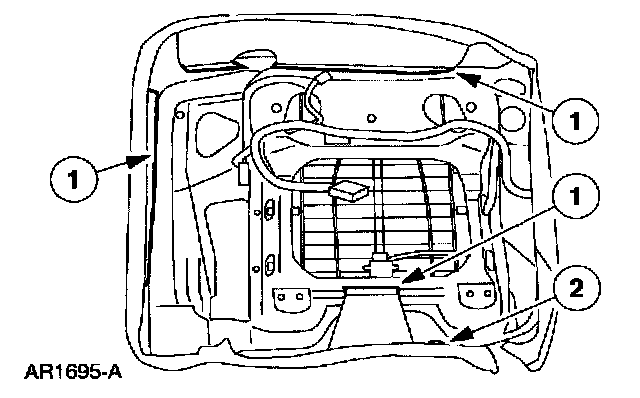

4. Release the retainers.
1 Release the J retainers.
2 Remove the pin-type retainer.

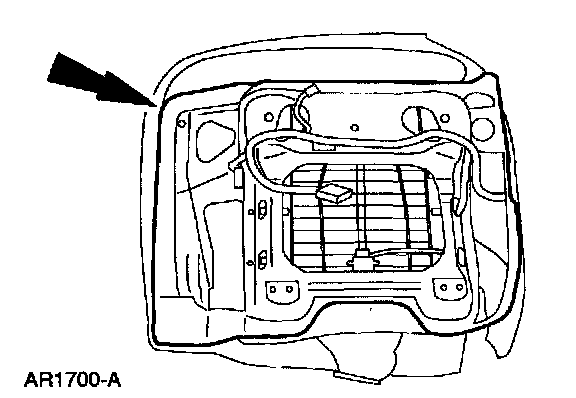

5. Remove the cover.







6. Remove the retaining clip.







7. Remove the pin.
8. Remove the armrest.







9. Remove the armrest cover trim.







10. Remove the frame.

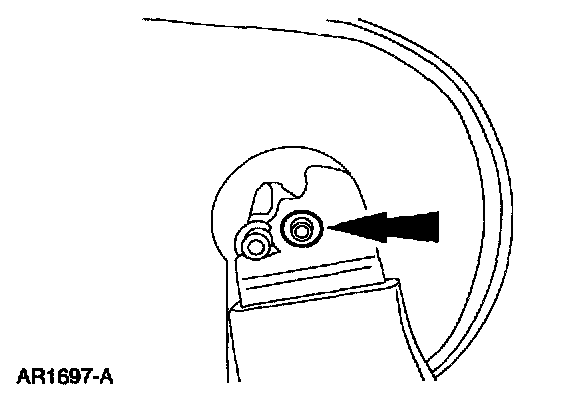

11. Remove the bolts.
12. Remove the seat occupy switch.

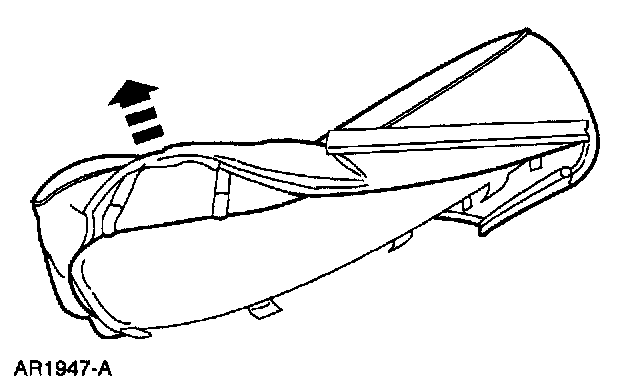

13. Remove the seat trim cover.

ASSEMBLY
1. To install, reverse the disassembly procedure.
2. Check the restraint system for correct operation.
