Driver Side Only

REMOVAL

CAUTION: Use care when handling the seat and track assembly. dropping the assembly or sitting on a seat not secured in the vehicle may result in damaged components.

1. Remoce the front seat.

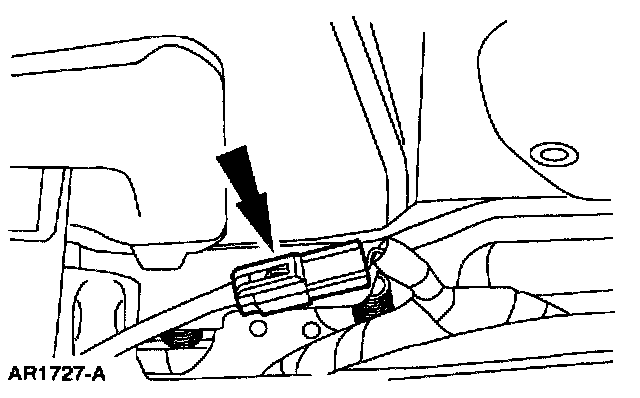

2. Disconnect the connector.

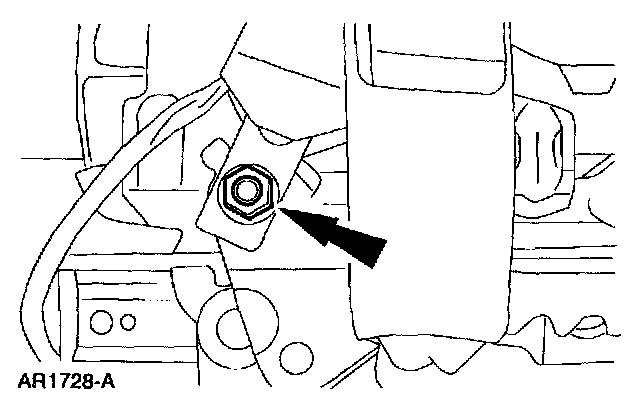

3. Remove the nut.
4. Pull the buckle through the cushion opening.







5. Release the J retainer.







6. Release the J retainer.

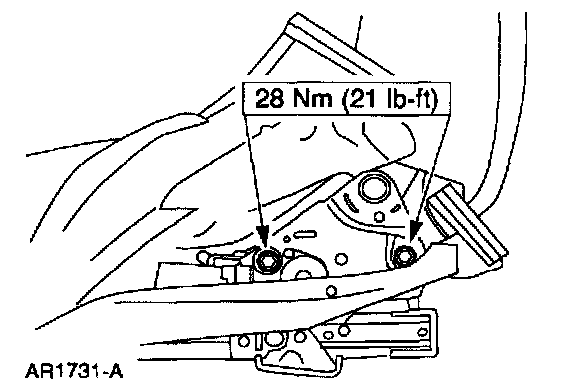

7. Remove the bolts.







8. Remove the pivot bolt.

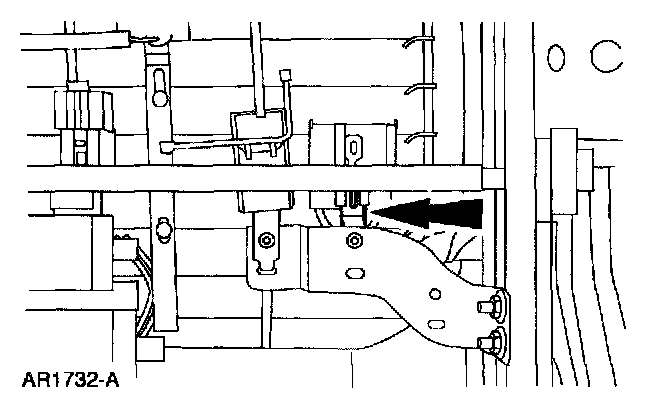

9. Disconnect the connector.

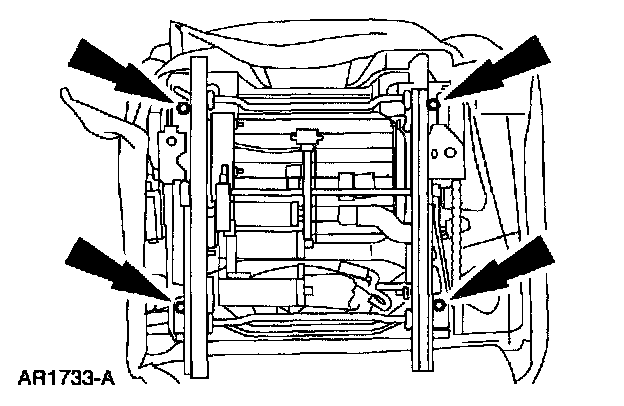

10. Remove the bolts.

INSTALLATION






















1. To install, reverse the removal procedure.
2. Check the restraint system for correct operation.
