B-Pillar Trim Panel

REMOVAL

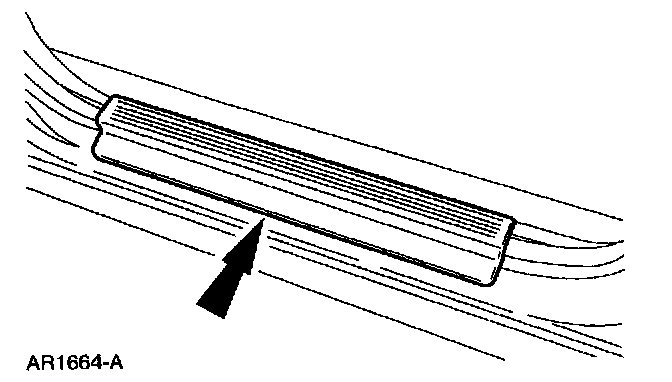

1. Remove the front door scuff plate.

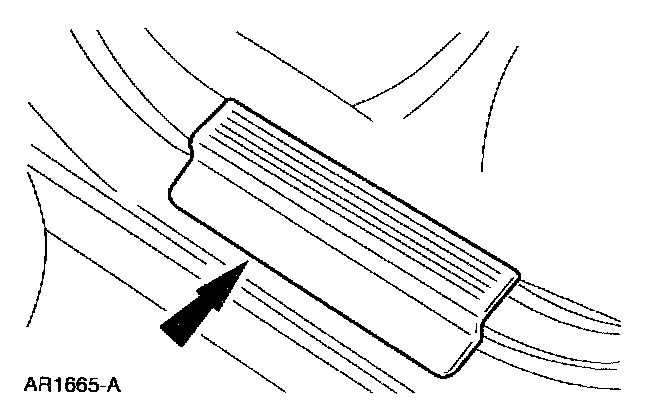

2. Remove the rear door scuff plate.

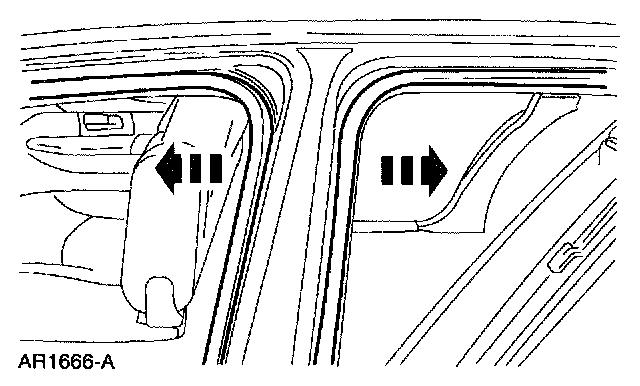

3. Pull back the front and rear door weatherstrips to clear the trim panels.

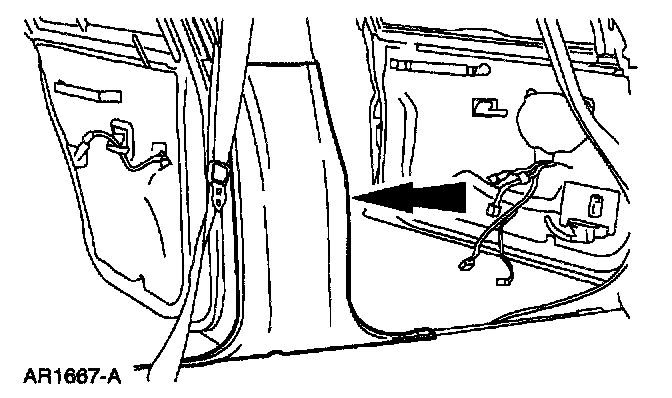

4. Remove the center body pillar lower finish panel.

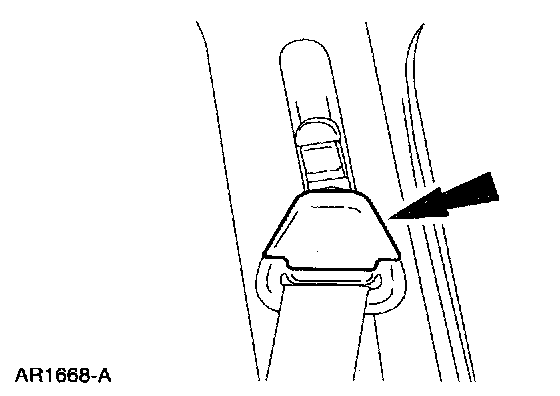

5. Remove the center D-ring cover.

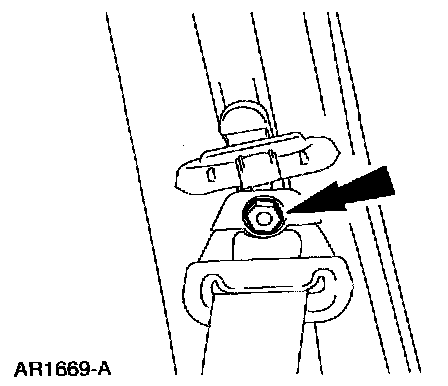

6. Remove the nut.

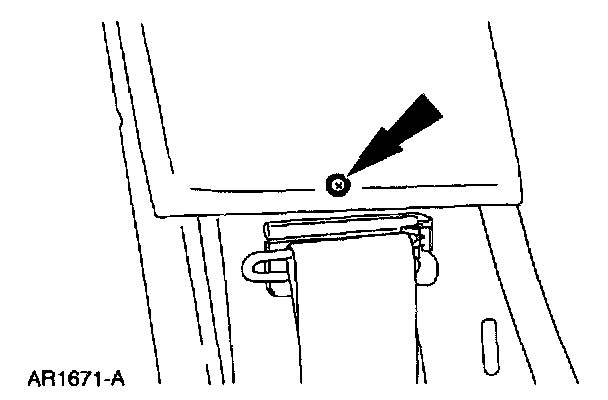

7. Remove the upper trim pillar.

INSTALLATION







1. To install, reverse the removal procedure.
2. Check the restraint system for correct operation.
