Rear Door Latch: Service and Repair

REMOVAL
1. Remove the door trim panel.
2. Remove the watershield.

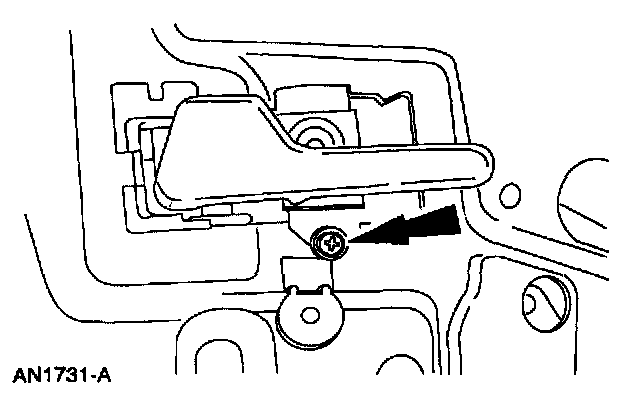

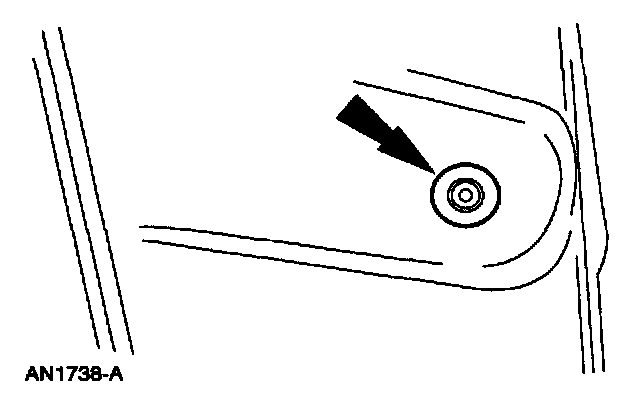

3. Remove the screw.







4. Pivot the door latch release handle and remove from the rod.

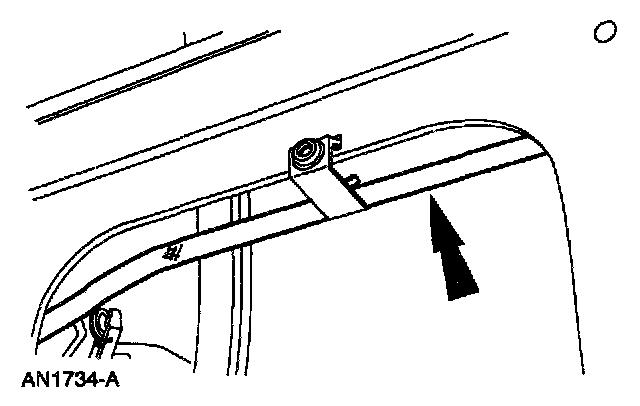

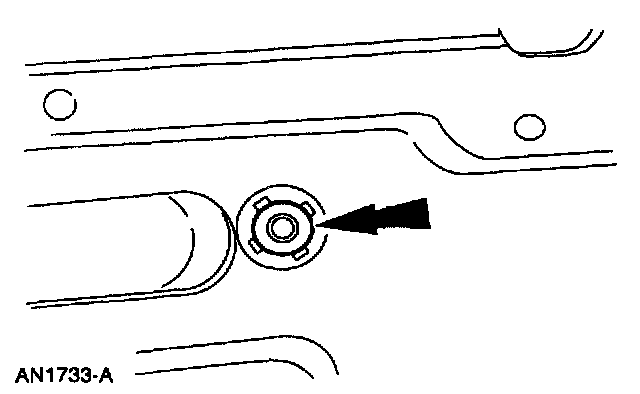

5. Remove the rivet.

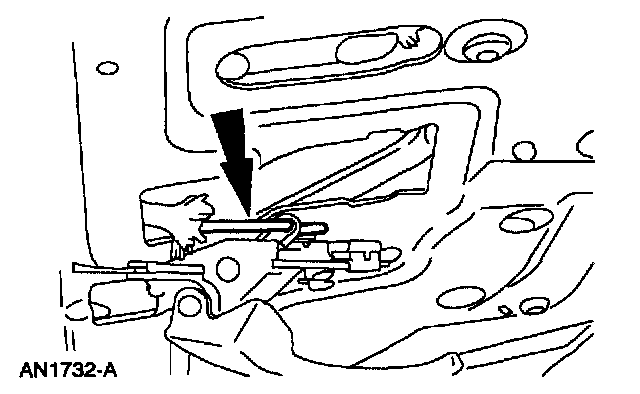

6. Release the lock rod from the clip.

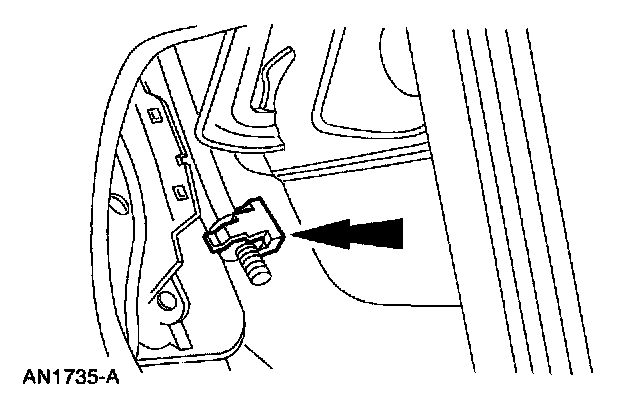

7. Remove the clip.

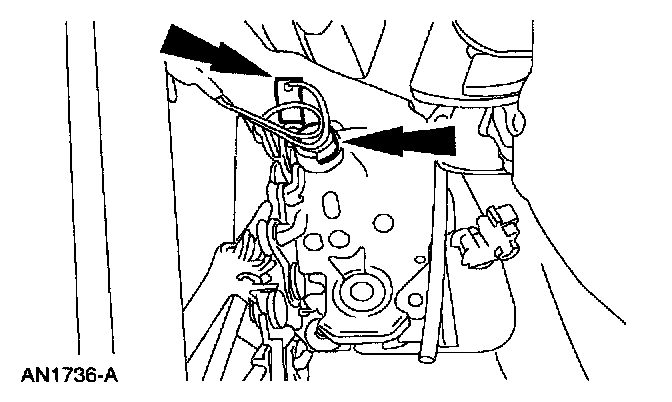

8. Disconnect the connectors.

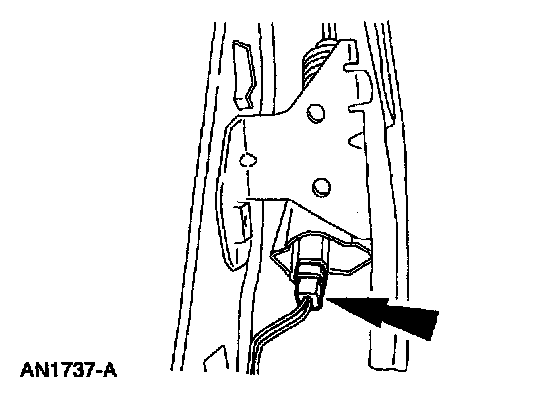

9. Disconnect the connector.







10. Remove the rivet.

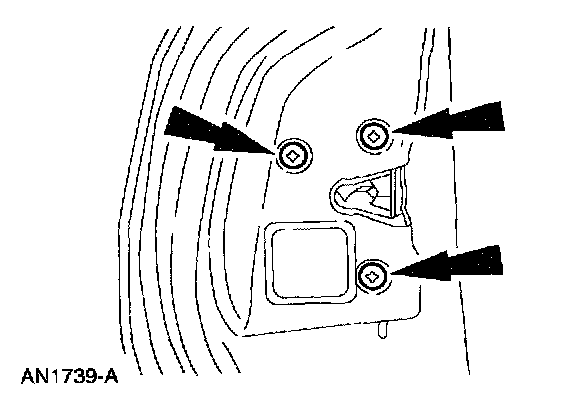

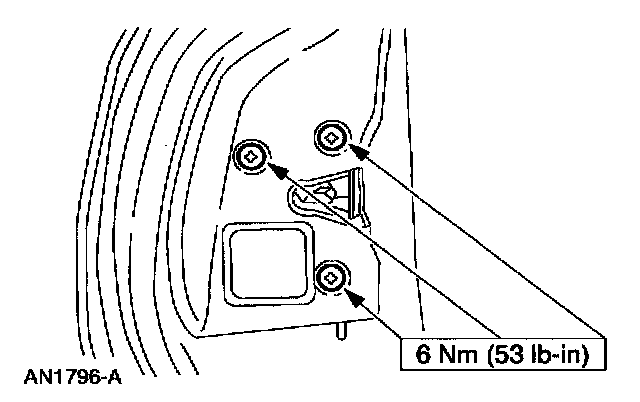

11. Remove the screws.
12. Remove the door latch.

INSTALLATION







1. To install, reverse the removal procedure.
