Front Door Latch: Service and Repair

REMOVAL
1. Remove the front door trim panel.
2. Remove the watershield.

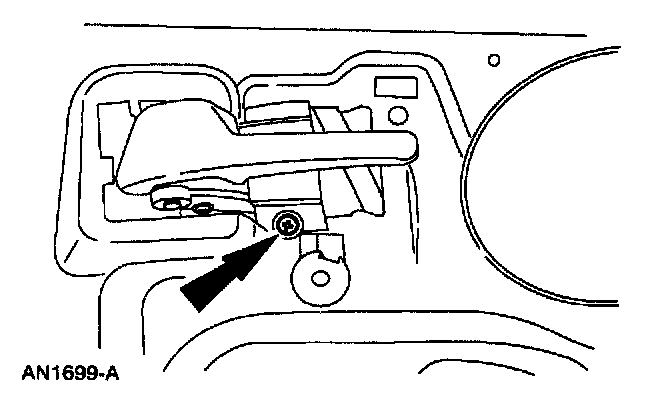

3. Remove the screw.







4. Pivot the door latch release handle and remove from the rod.

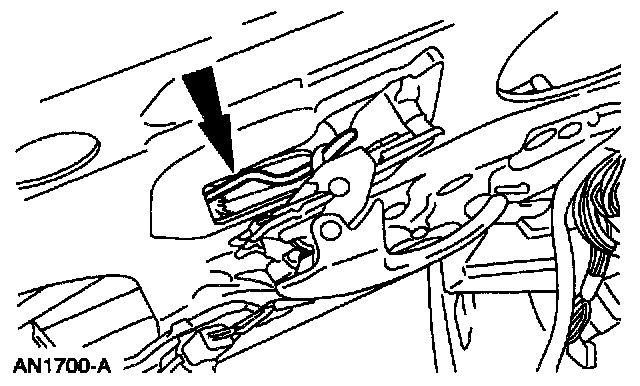

5. Remove the clip.

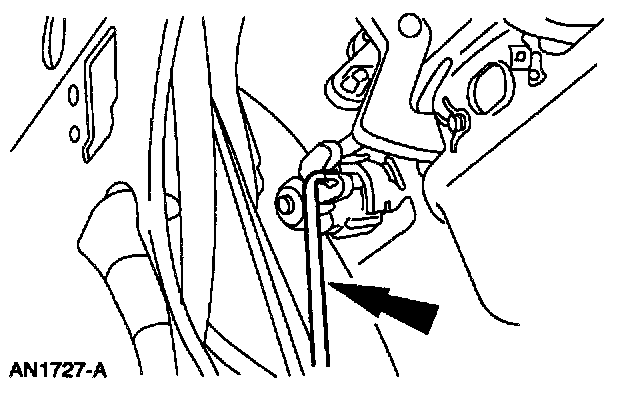

6. Disconnect the door lock cylinder rod.

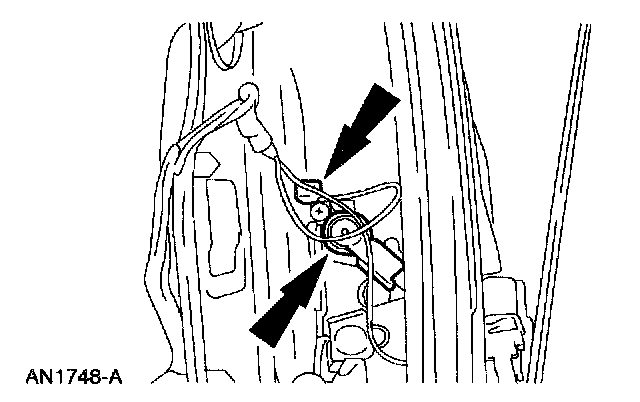

7. Disconnect the connectors.







8. Disconnect the connector.

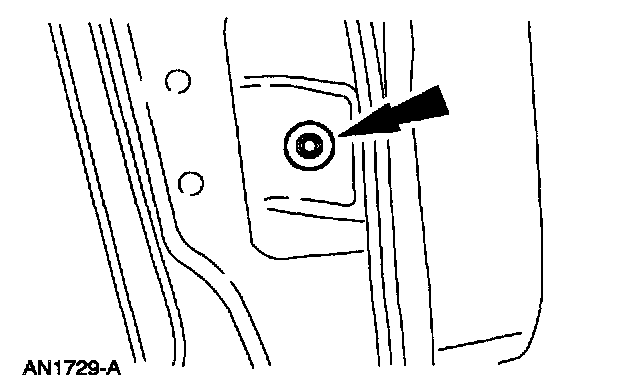

9. Remove the rivet.

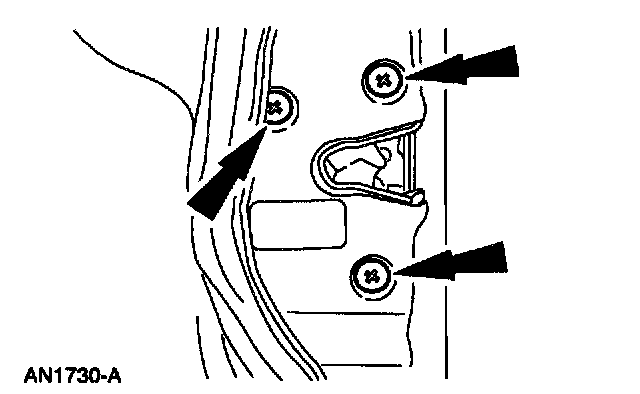

10. Remove the screws.
11. Remove the door lock actuator from the latch.
12. Remove the door latch.

INSTALLATION

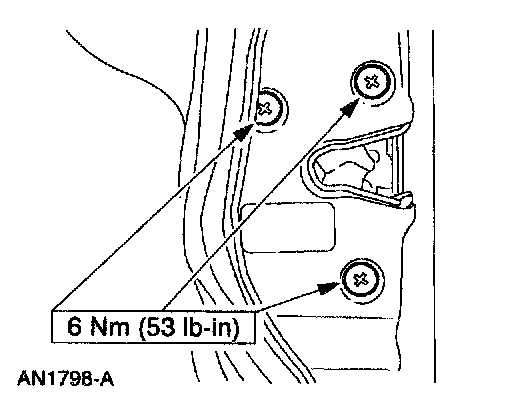

1. To install, reverse the removal procedure.
