Premium

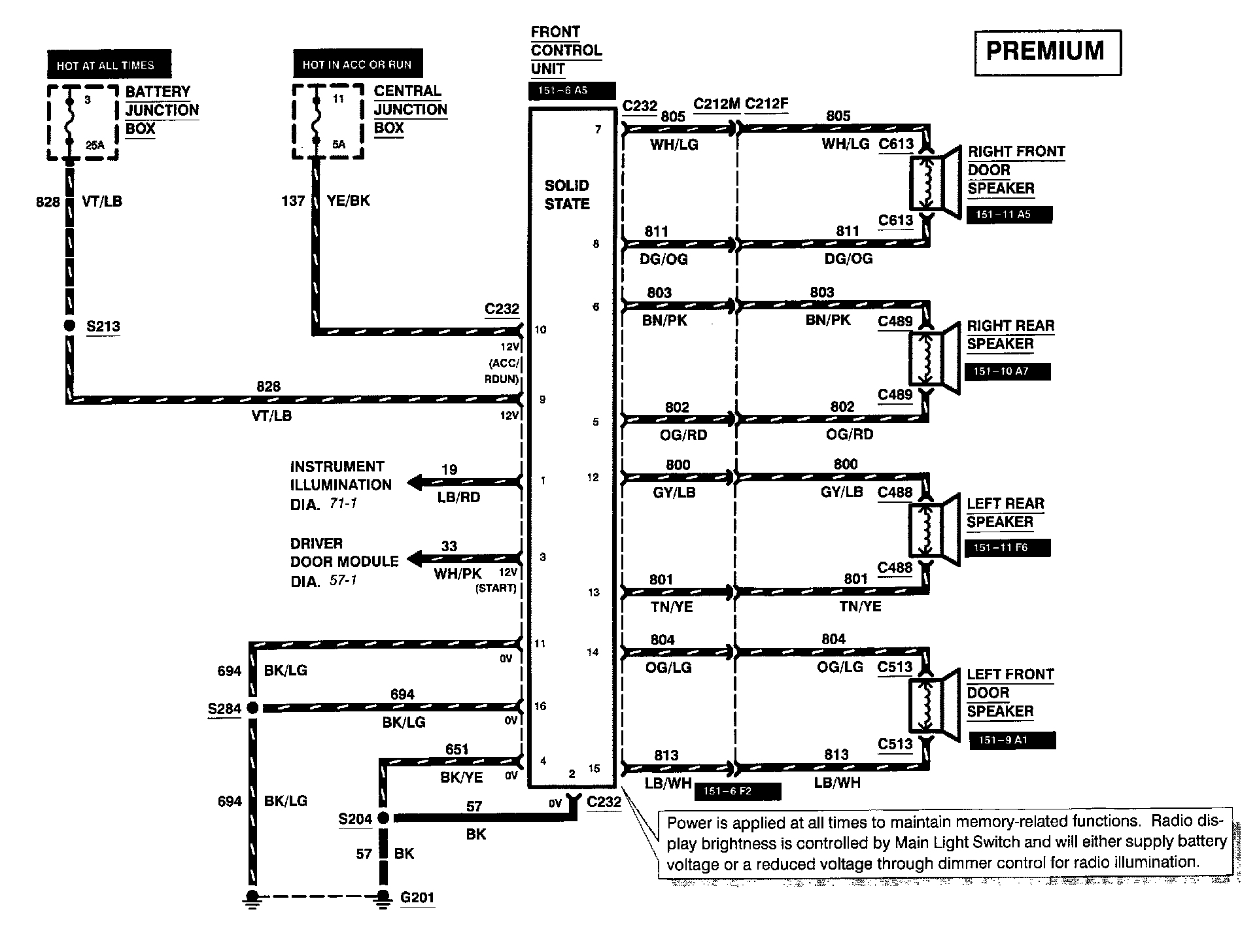

Diagram 130-2:

Battery Junction Box
Central Junction Box
Front Control Unit
Fuse 3
Fuse 11
Left Front Door Speaker
Left Rear Speaker
Right Front Door Speaker
Right Rear Speaker

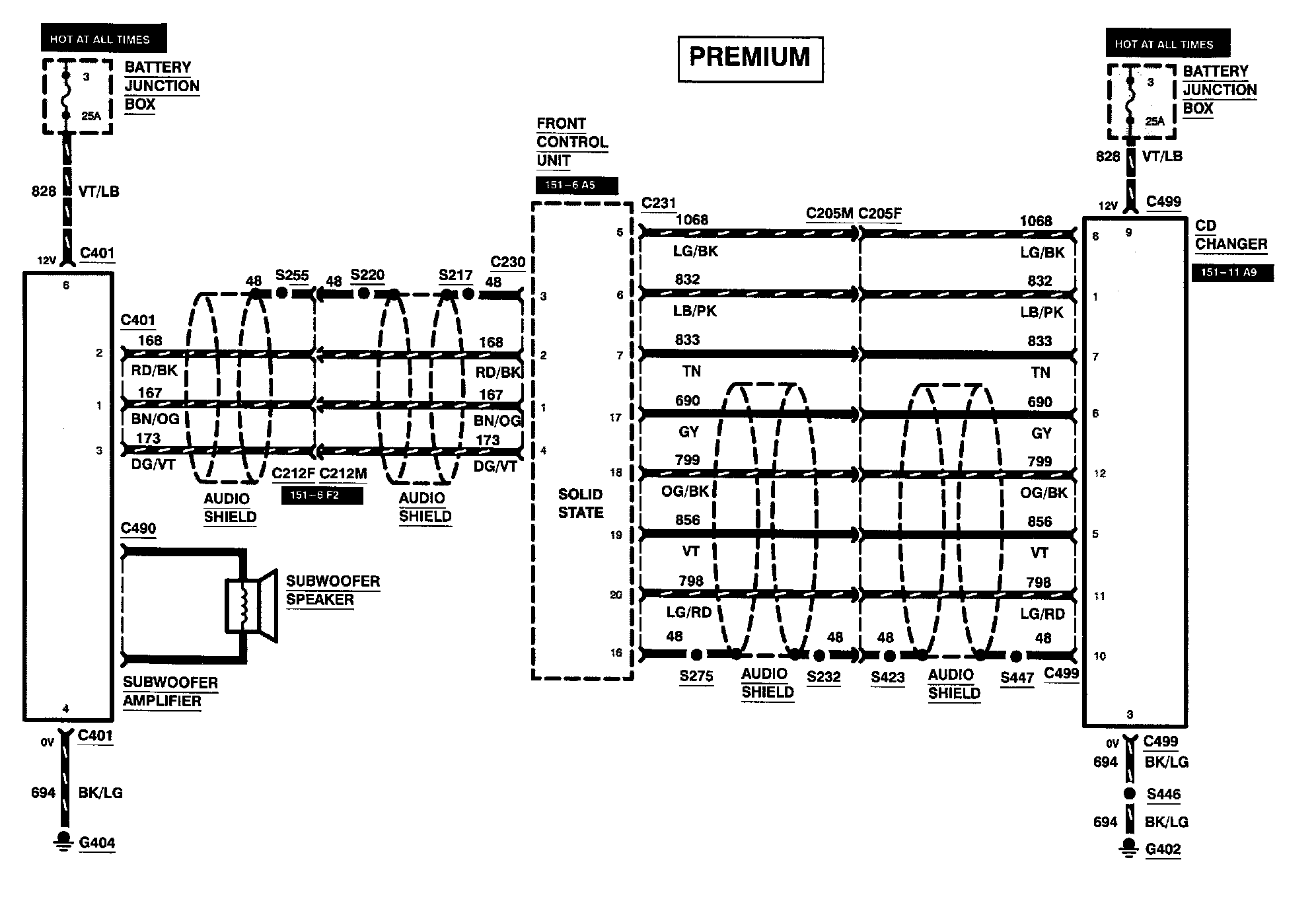

Diagram 130-3:

Audio Shield
Battery Junction Box
Compact Disc Changer
Front Control Unit
Fuse 3
Subwoofer Amplifier
Subwoofer Speaker
