CD Changer: Service and Repair

REMOVAL
1. Disconnect the battery ground cable.
2. If equipped, position the luggage compartment cover aside.

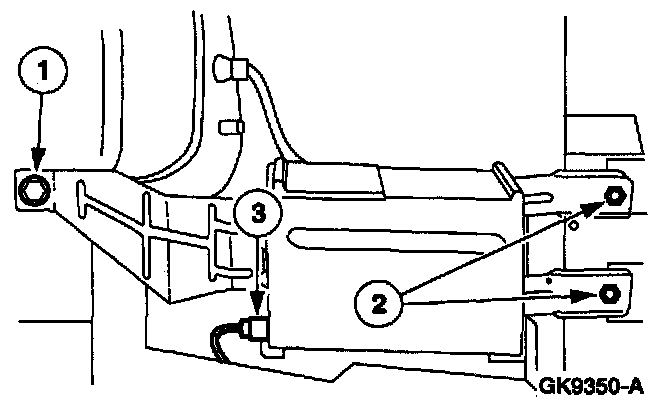

3. Remove the digital audio compact disc changer.
1 Remove the bolt.
2 Remove the nuts.
3 Disconnect the electrical connector.

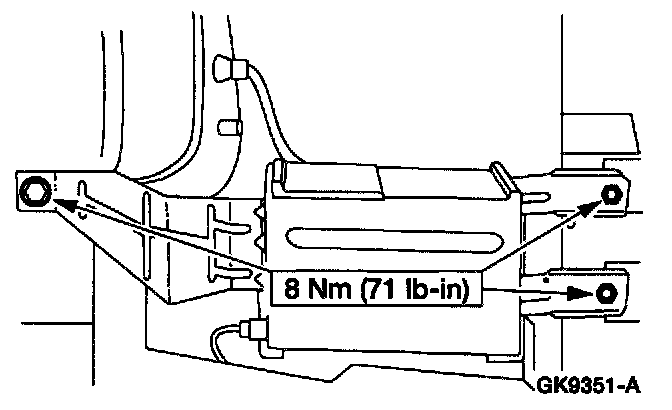

4. Remove the digital audio compact disc changer brackets.
^ Remove the six bolts and two brackets.

INSTALLATION







1. To install, reverse the removal procedure.

NOTE: When the battery is disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven 16 km (10 miles) or more to relearn the strategy.
