Key Programming - Spare Key Programming Switch

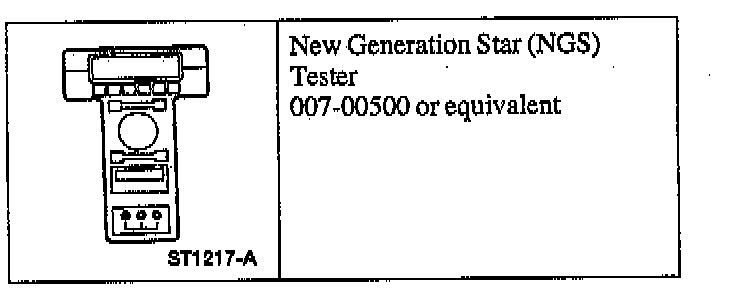

Special Tool: New Generation Star (NGS) Tester:
Special Tool(s)
NOTE
^ The Spare Key Programming Switch is a NGS/SBDS programmable switch that provides the capability to enable/disable the Spare Key Programming Procedure. This procedure is in the Owner's Guide Spare Key Programming Procedure or under Key Programming-Program a Key Using Two Programmed Keys. This programmable switch is provided as a convenience for rental company fleets or other fleet purchasers who may not want the Spare Key Programming procedure available to the vehicle driver.
^ The spare key programming switch state can be viewed by PATS PID SPARE__KY.
1. Insert a programmed ignition key into the ignition lock cylinder and turn the ignition switch to RUN.
2. Enter NGS/SBDS. Follow the SECURITY ACCESS PROCEDURE to obtain security access.
3. From NGS/SBDS menu, select SPARE KEY PROGRAMMING SWITCH selection to desired setting:
^
^
NOTE: The default setting on delivery of all new vehicles is
