Wiper Arm: Adjustments

ADJUSTMENT
1. Remove the wiper blade.

CAUTION: For measurement and adjustment of the wiper arm, lift the wiper arm from the windshield in order not to damage the windshield.

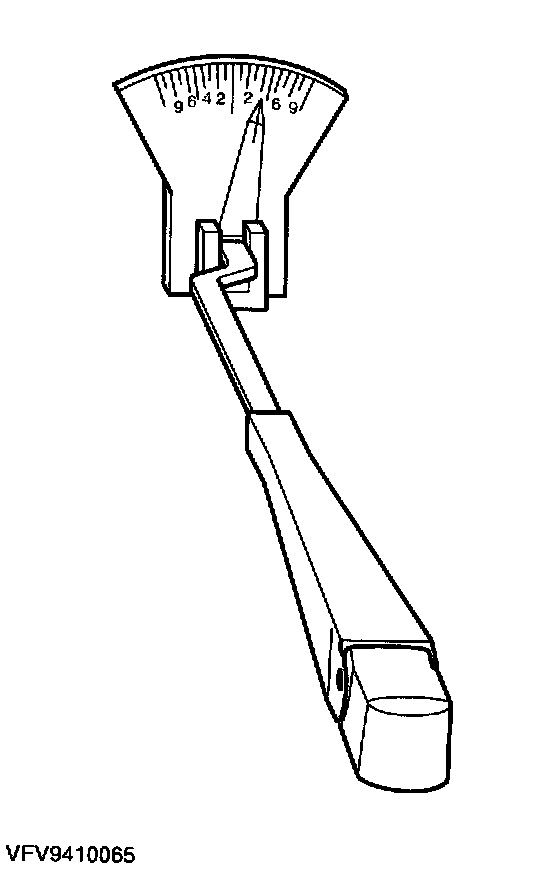

2. Measure the angle between the windshield and the wiper arm. The angle should be four degrees.

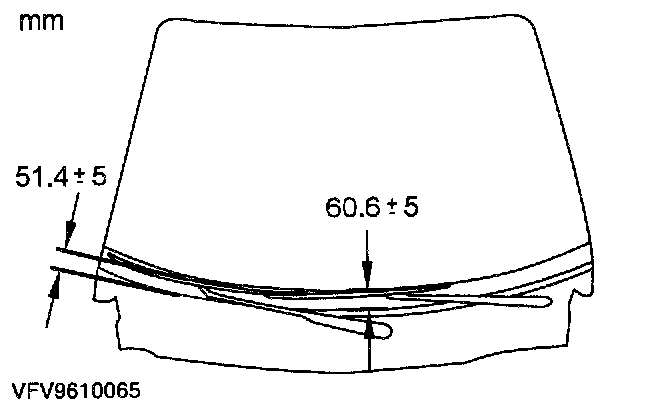

4. The distance between the windshield passenger wiper arm and the cowl grille upper border should be 51.4 mm. The distance between the windshield driver wiper arm and the cowl grille upper border should be 60.6 mm.

NOTE: The wiper arms must be in the park position.

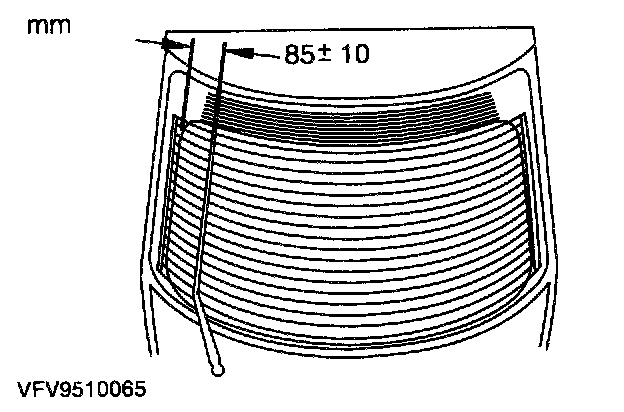

5. The distance between the left rear window border and the wiper arm should be 85 mm. The wiper arm should be parallel to the window border.

NOTE: The wiper arm must be in the park position.
