Home >> Mercury >> 1999 >> Cougar V6-153 2.5L DOHC VIN L SFI >> Repair and Diagnosis >> Wiper and Washer Systems >> Testing and Inspection >> Pinpoint Tests >> E - Windshield Wipers Inoperative at Interval Setting

E - Windshield Wipers Inoperative at Interval Setting

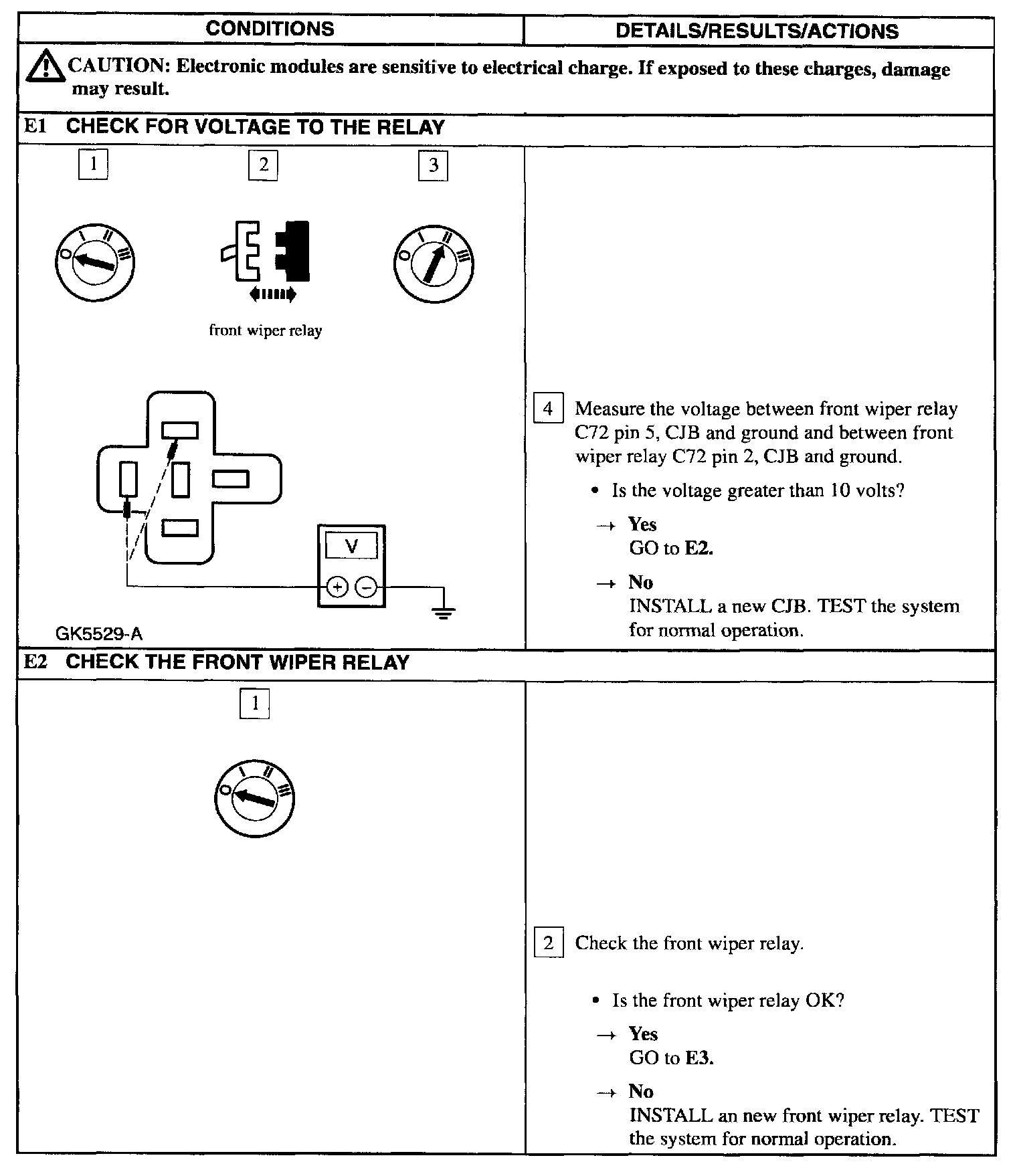

E1 - E2:

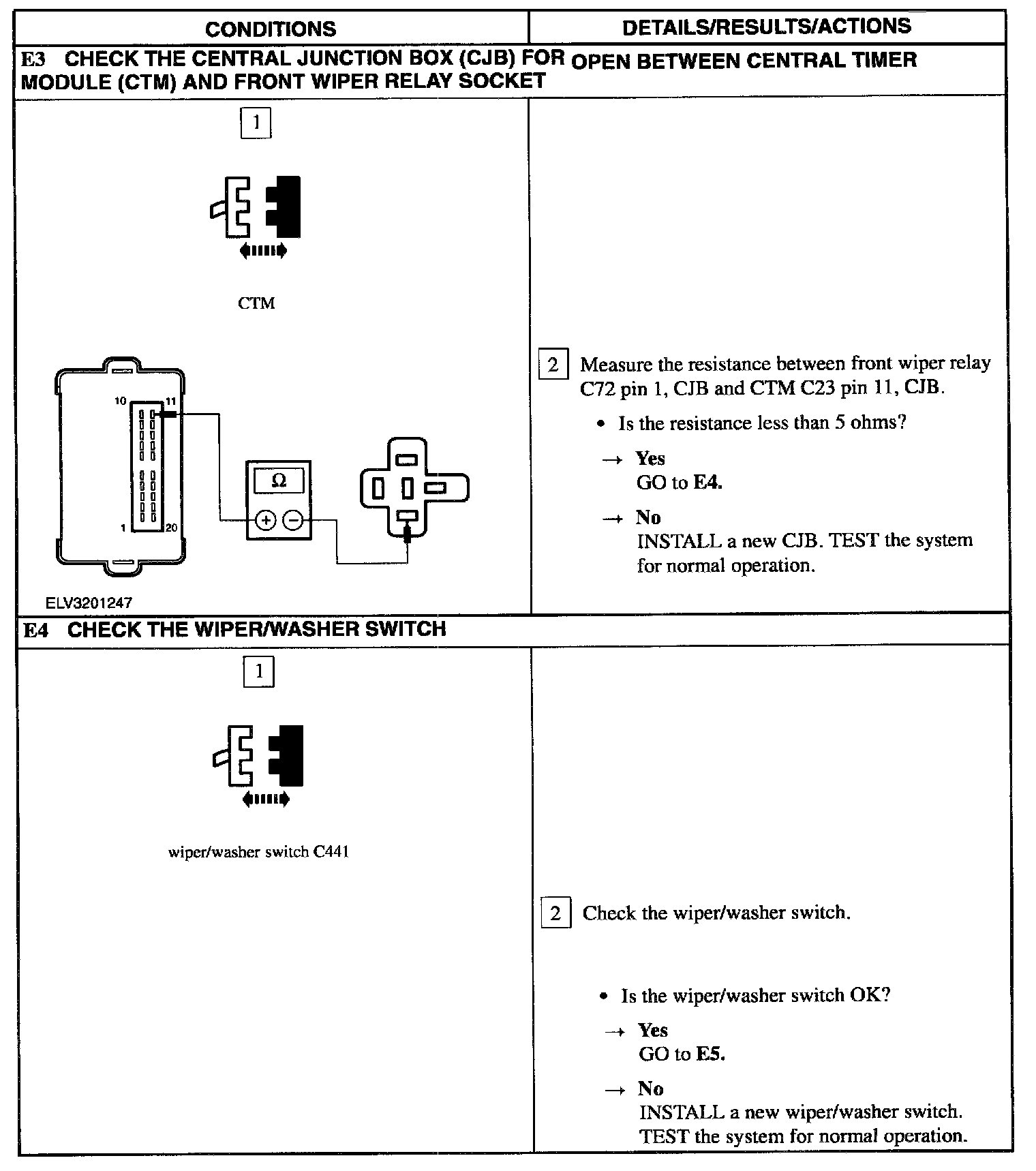

E3 - E4:

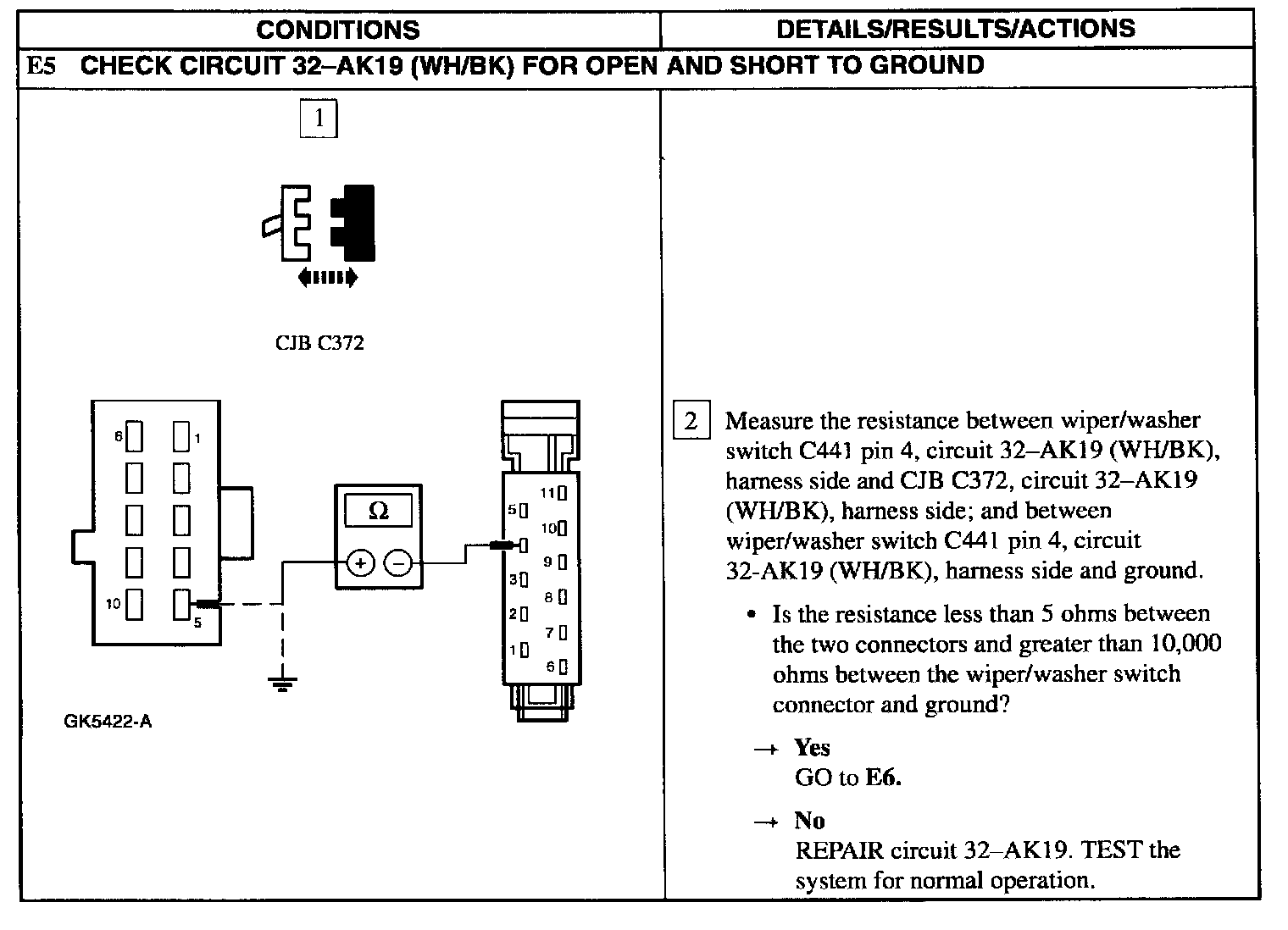

E5:

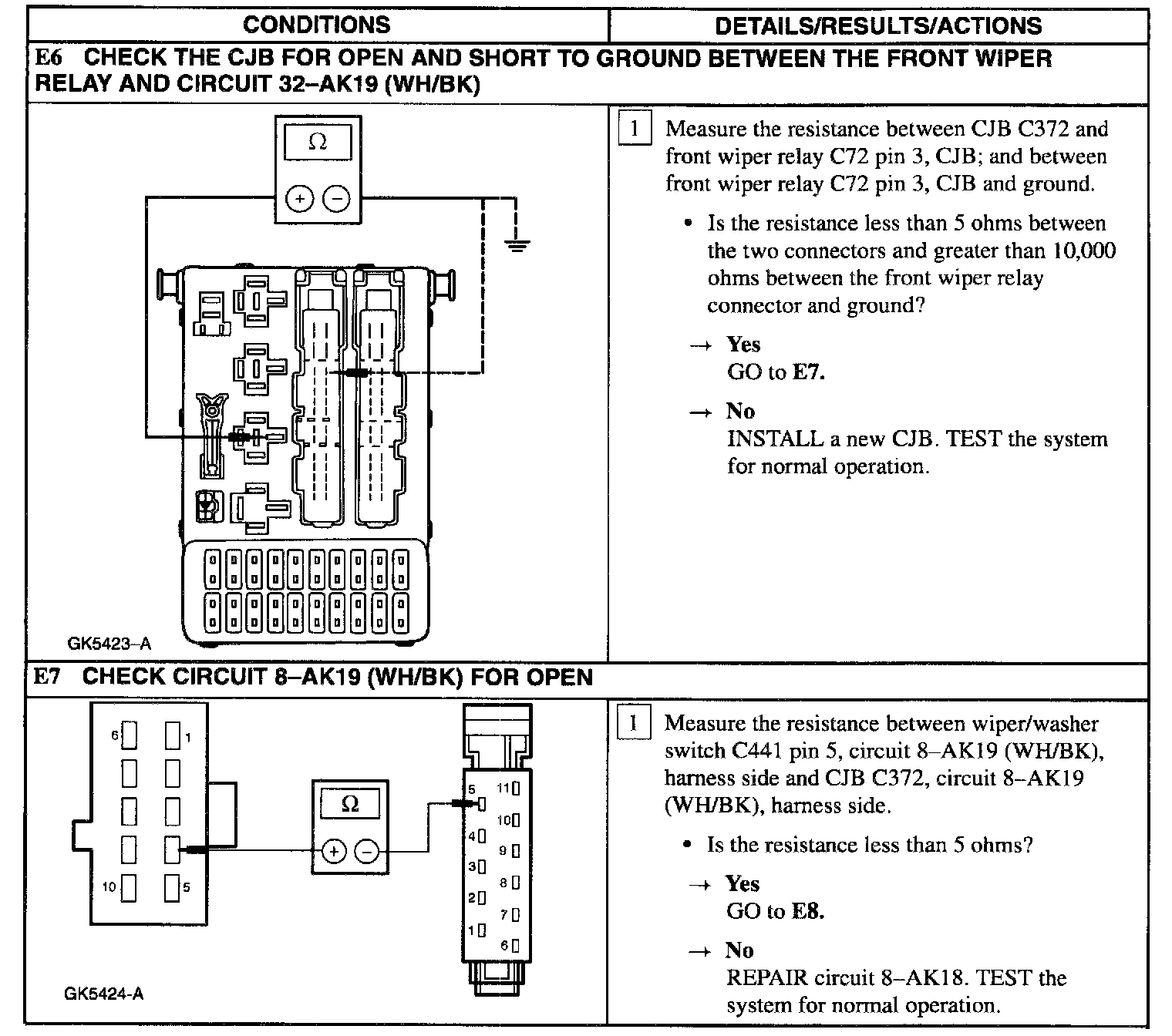

E6 - E7:

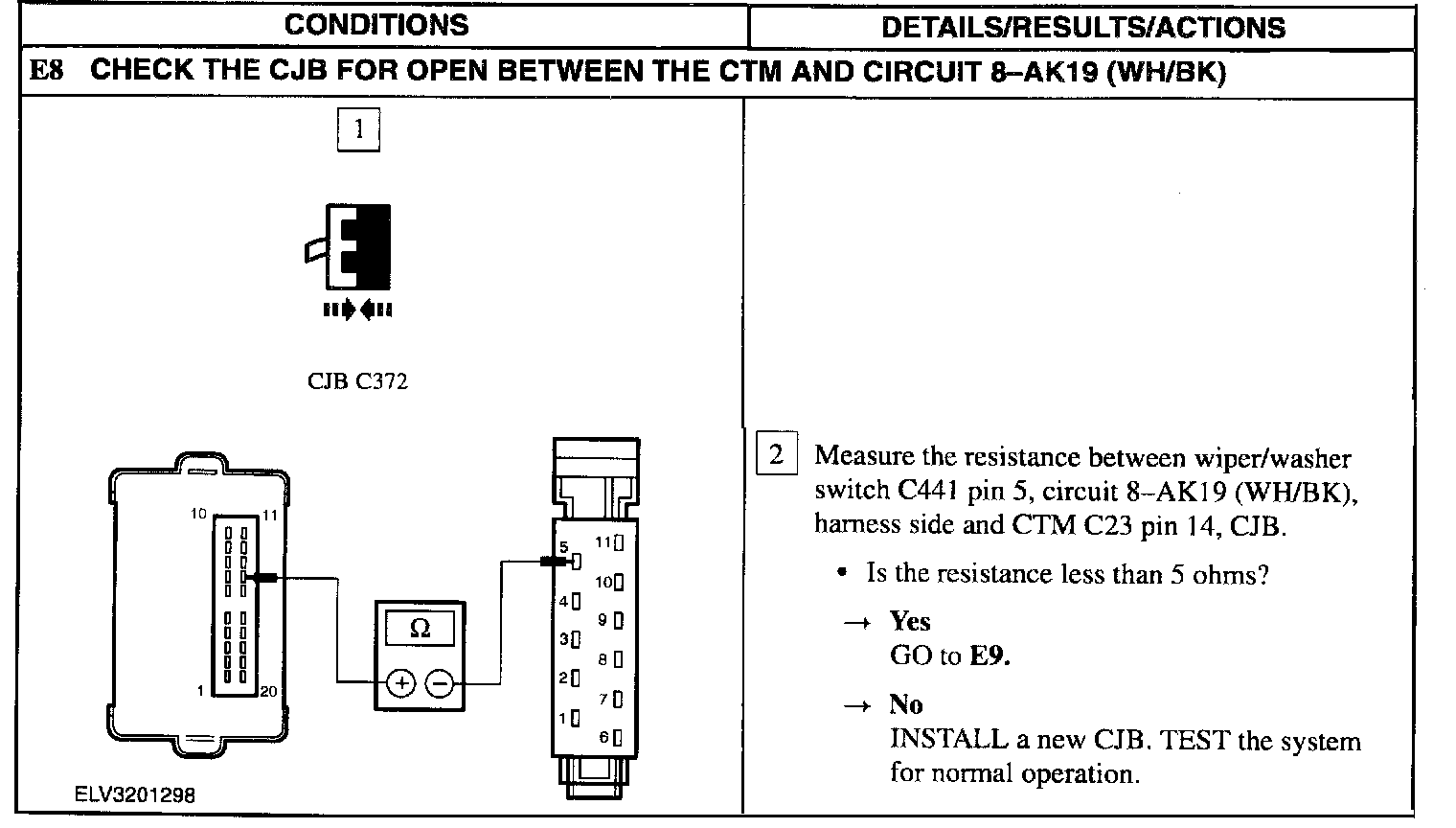

E8:

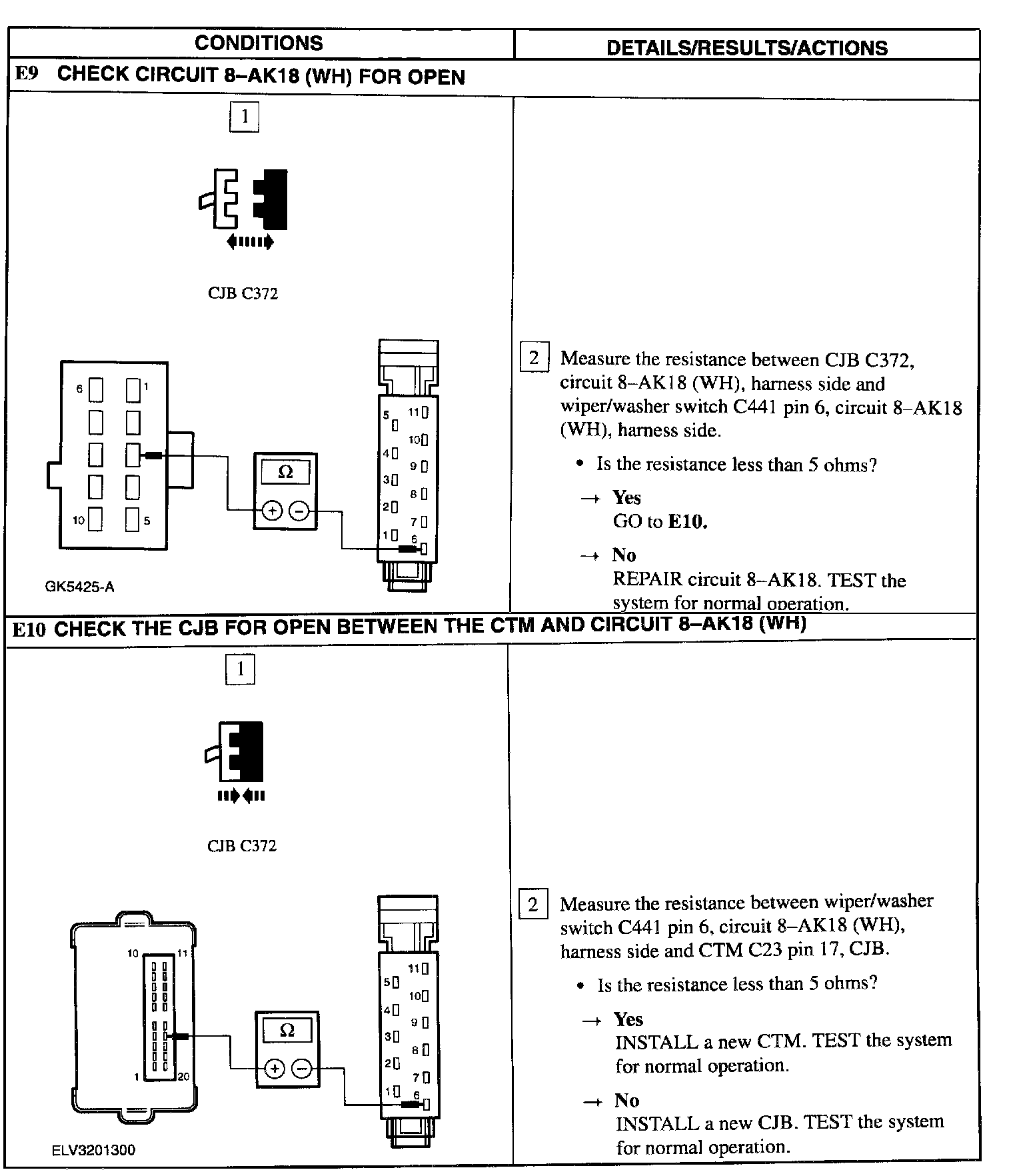

E9 - E10:
