Window Regulator Motor

REMOVAL
1. Remove the door trim panel.







2. Peel back the door water shield.

CAUTION: Do not touch the adhesive surface as re-bonding will be impaired. Do not attempt to peel the watershield from the door without cutting Butyl.







3. Disconnect the regulator motor electrical connector.

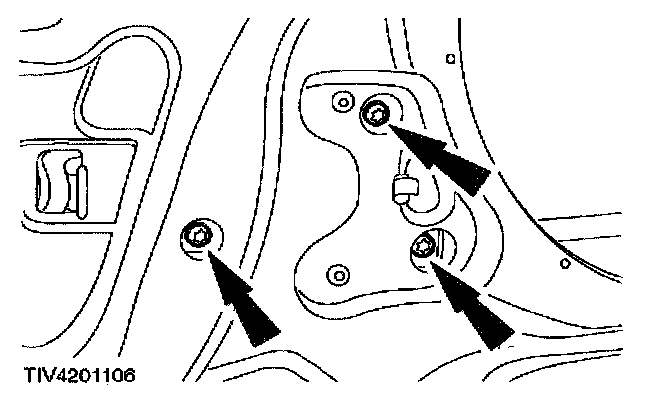

4. Remove the regulator motor.

INSTALLATION

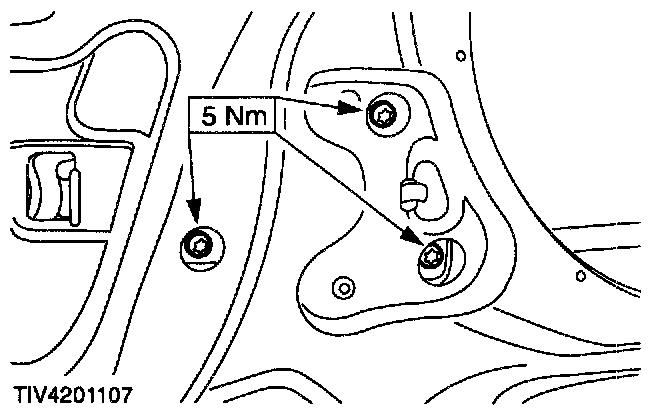

1. To install, reverse the removal procedure.
