G: Timing/Coast Clutch Solenoid (3 - 2T/CCS)
G: Timing/Coast Clutch Solenoid (3 - 2T/CCS)

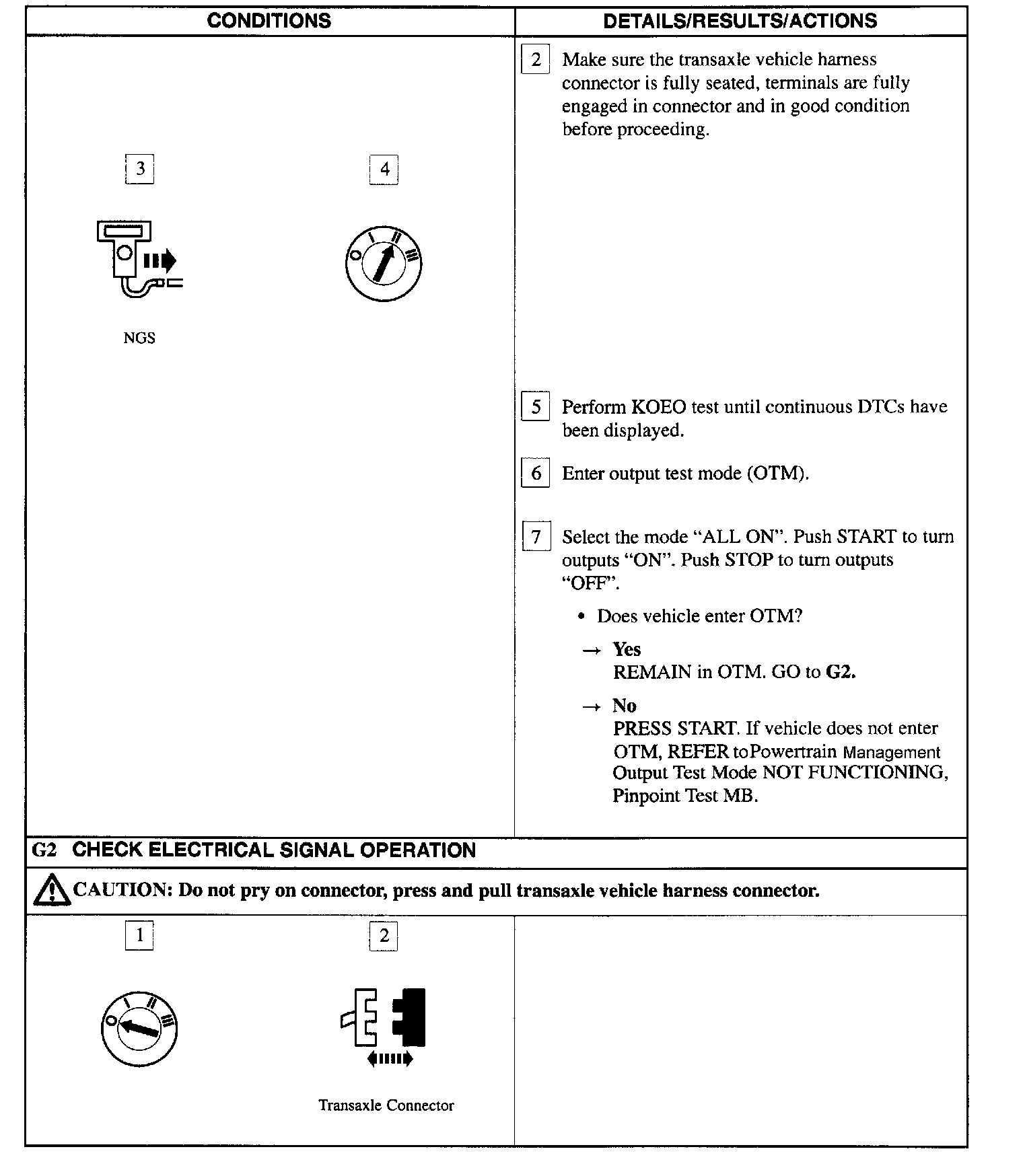

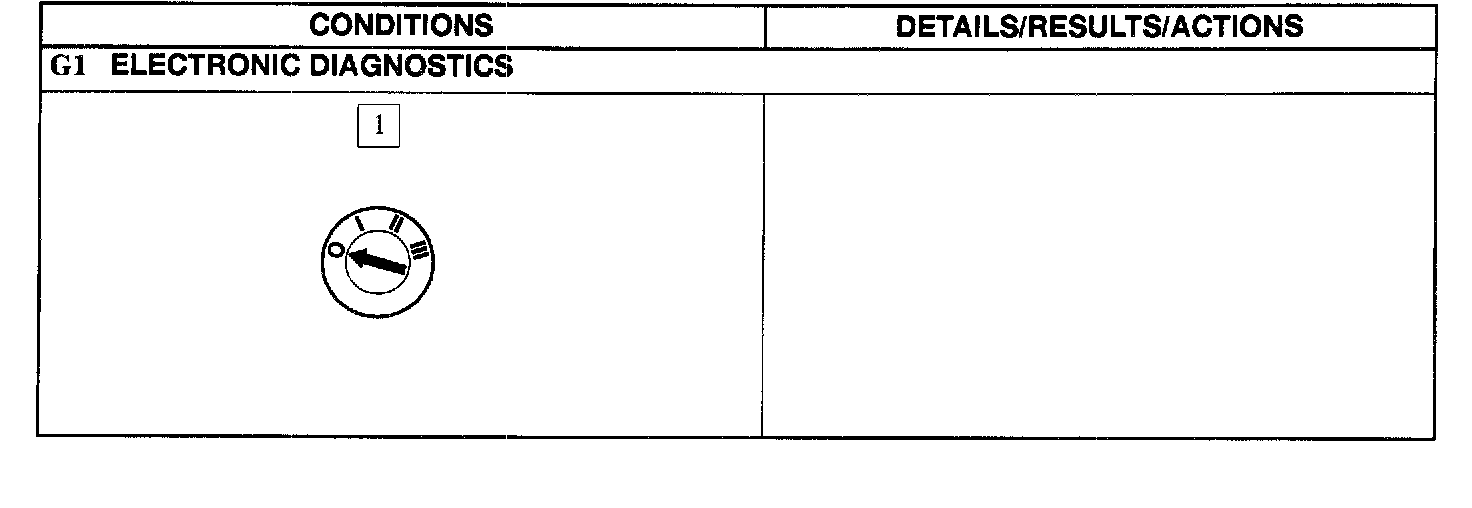

G1:

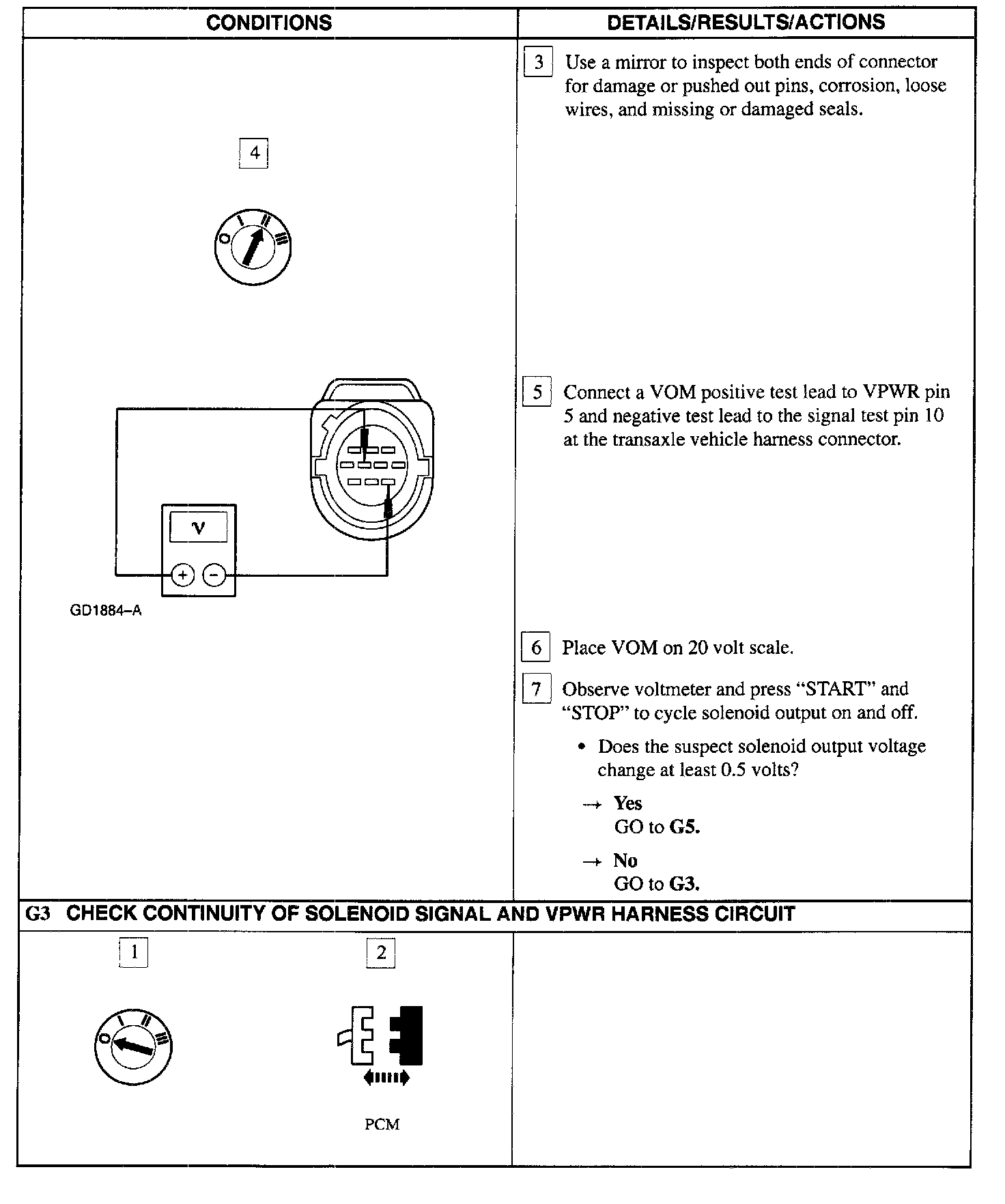

G1 - G2:
G2 - G3:

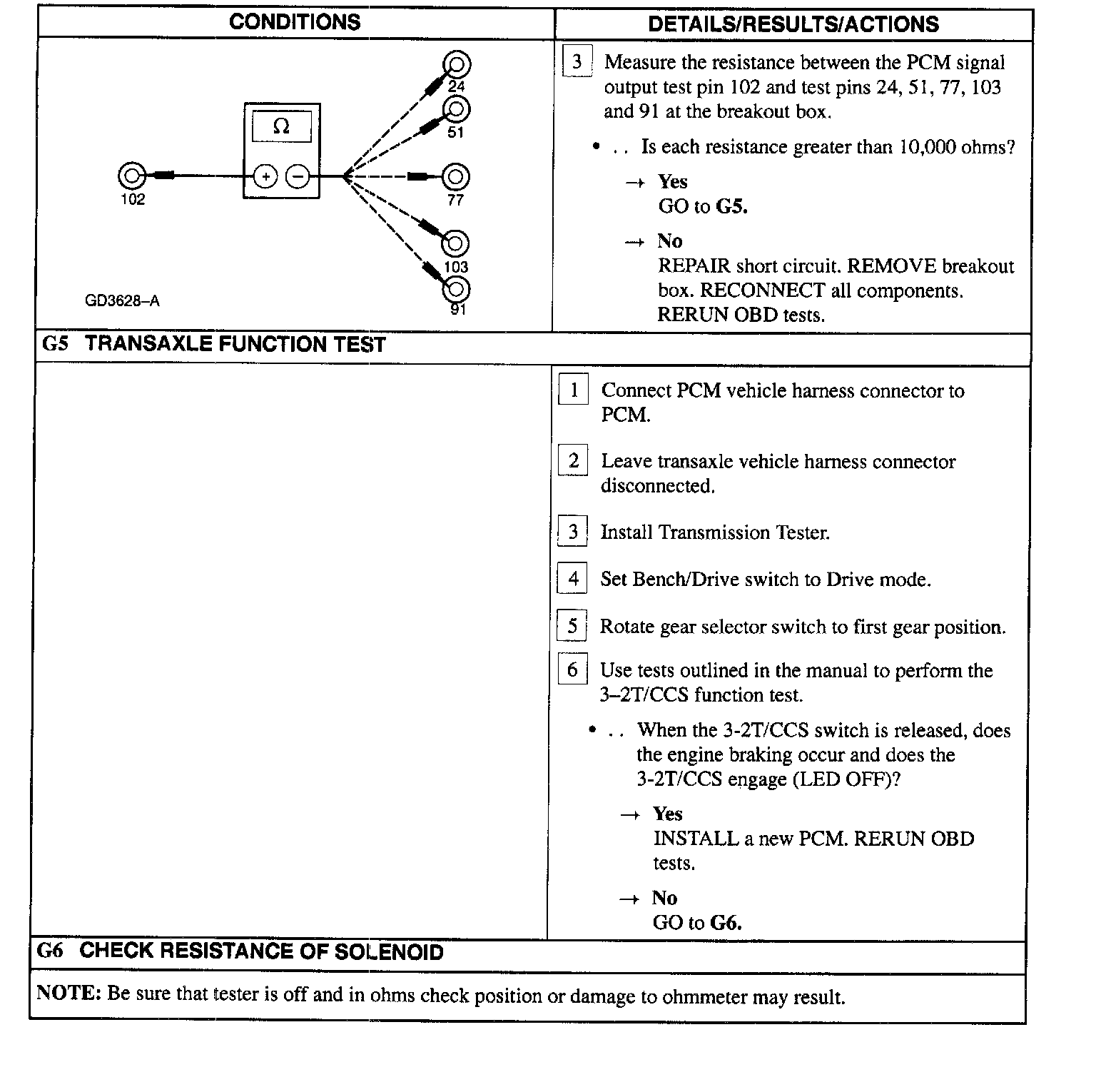

G3 - G4:

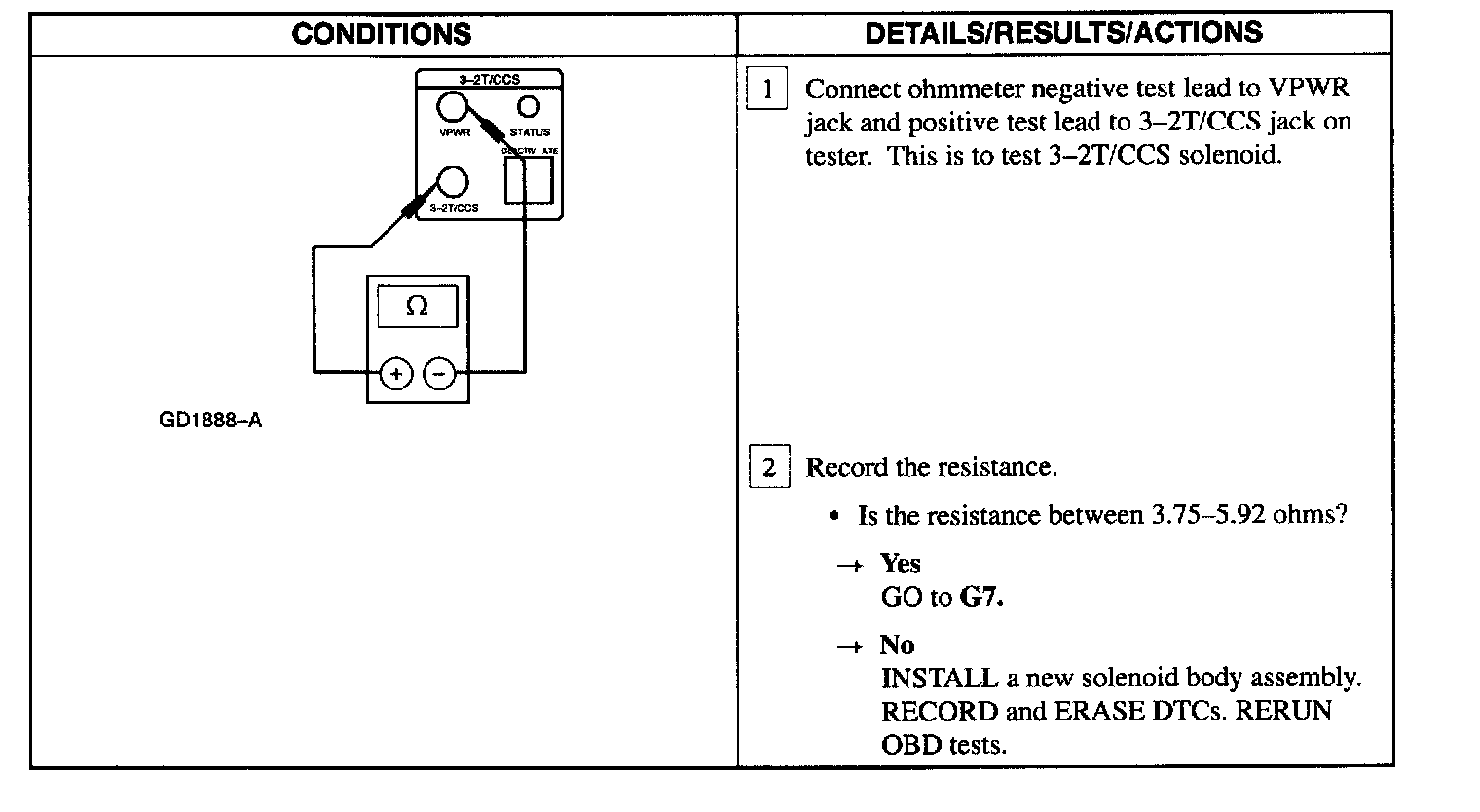

G4 - G6:
G6:

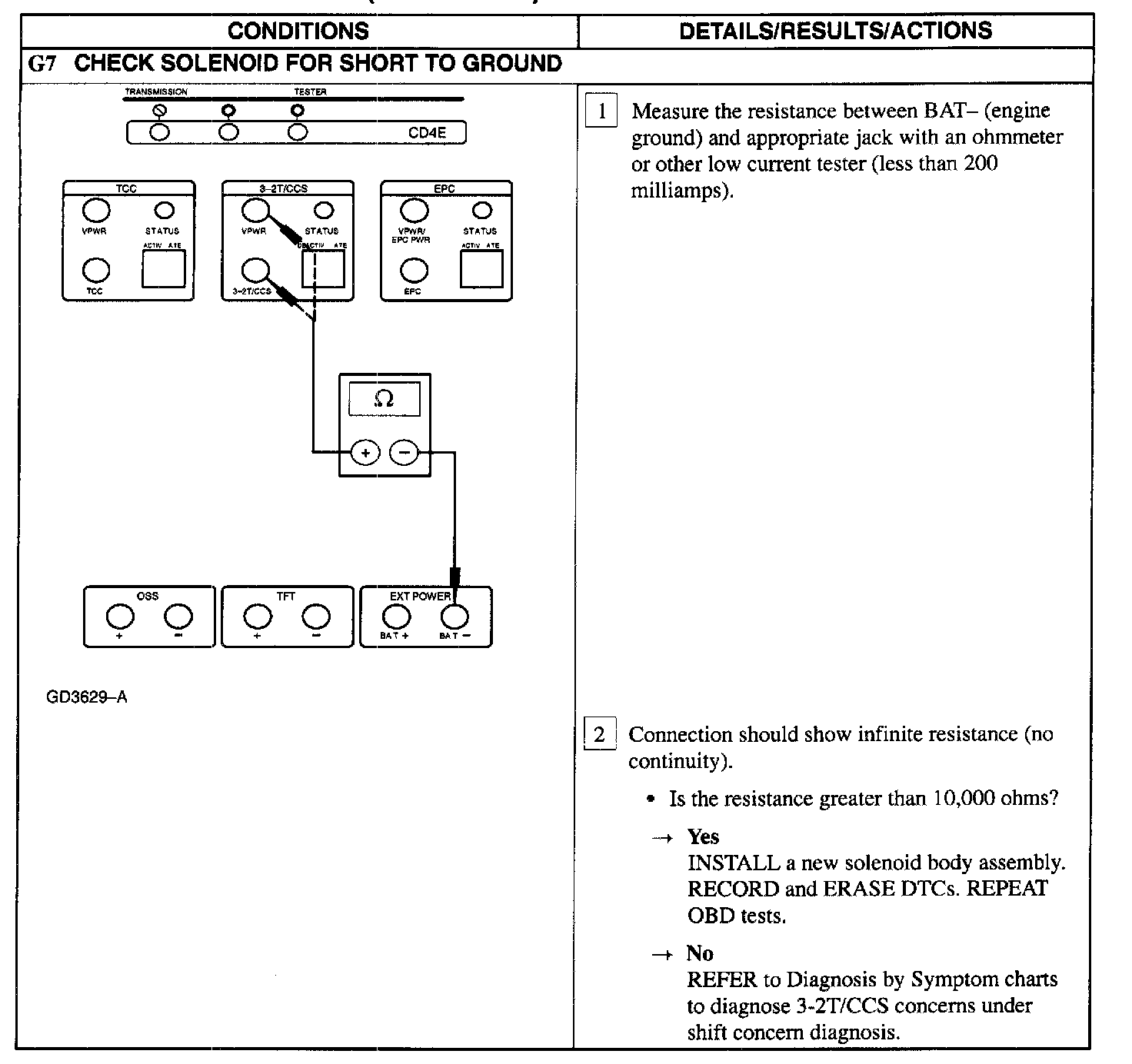

G7:
PINPOINT TEST G: TIMING/COAST CLUTCH SOLENOID (3-2T/CCS)
