Seals and Gaskets: Service and Repair

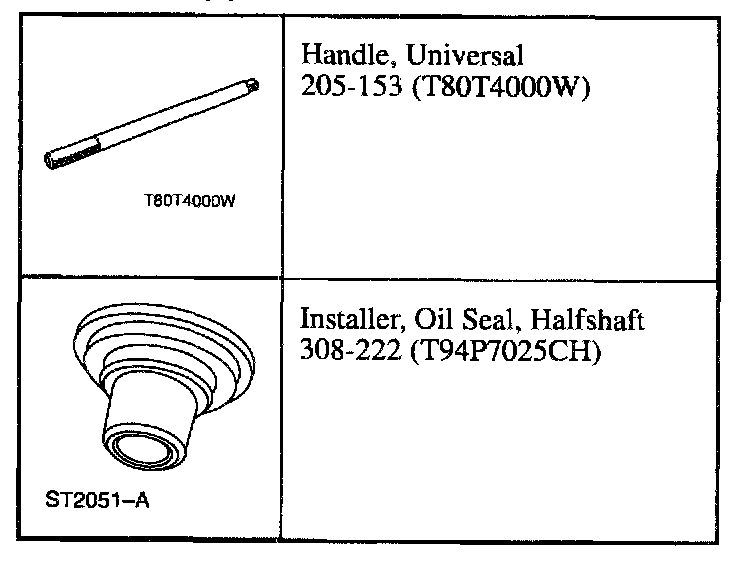

Special Tool(s)


Removal
1. Remove the halfshaft.





2. Remove the differential seal (left-hand side shown, right-hand side similar).

Installation





1. Using the special tools, install the new differential seal.
^ Lubricate seal with Merkur manual transmission fluid

2. NOTE: Always install a new driveshaft bearing retainer circlip.

Install the halfshaft.
