D: Trans Control Switch Is Not Operating Properly
D: Trans Control Switch Is Not Operating Properly

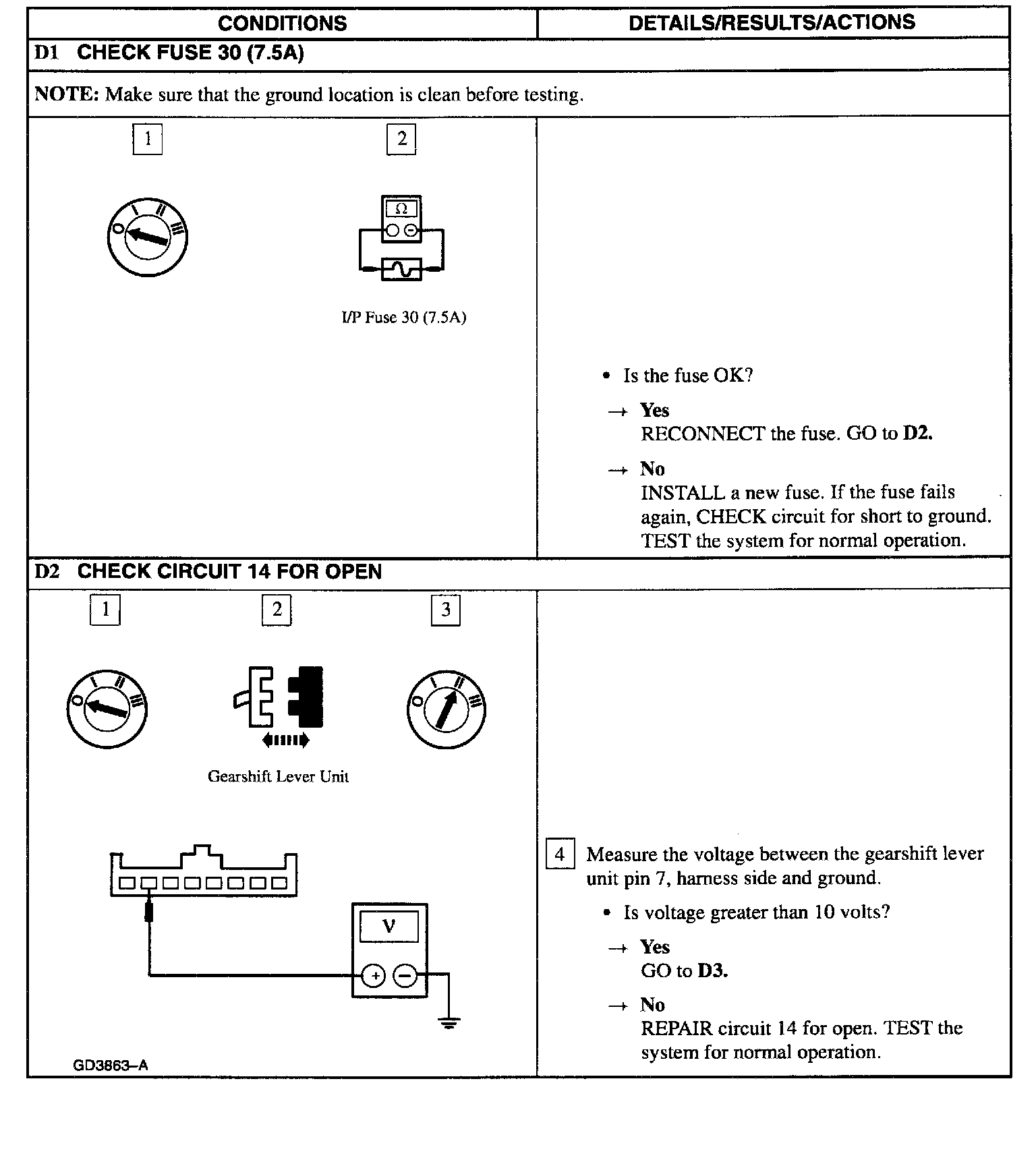

D1 - D2:

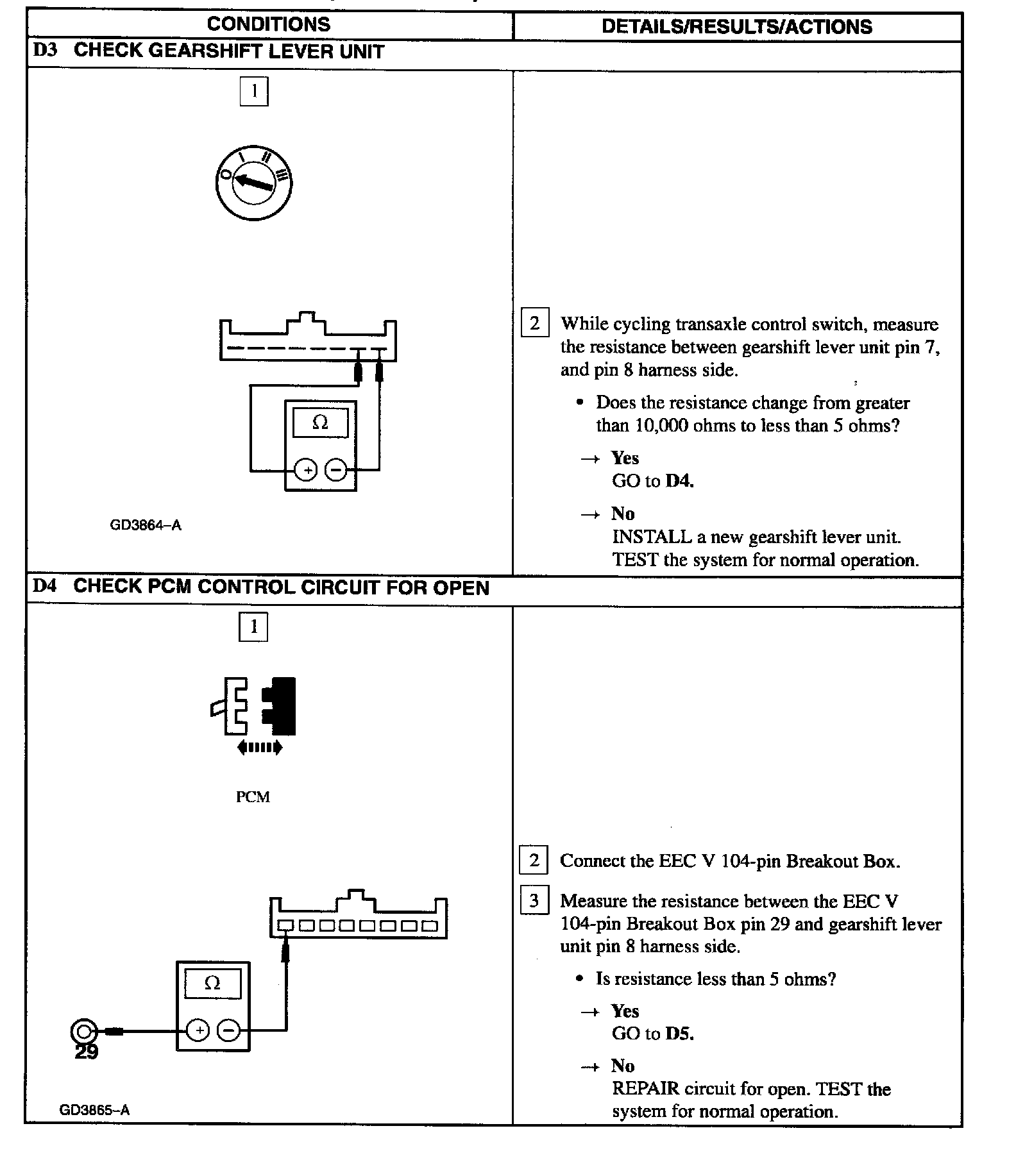

D3 - D4:

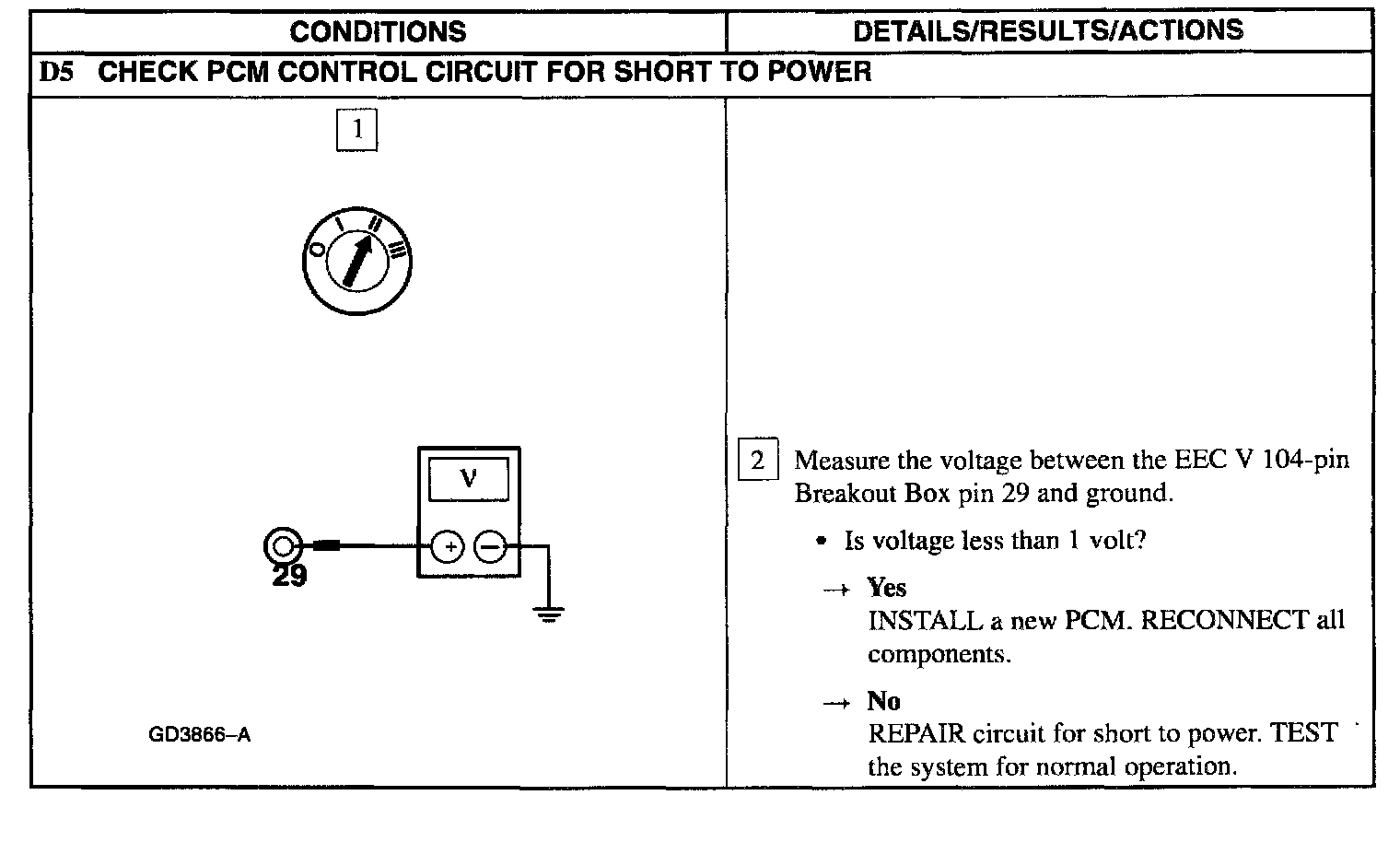

D5:
PINPOINT TEST D: THE TRANSAXLE CONTROL SWITCH IS NOT OPERATING PROPERLY
