Home >> Mercury >> 1999 >> Cougar V6-153 2.5L DOHC VIN L SFI >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Pinpoint Tests >> A: Shift Interlock System Does not Release/Lock Correctly

A: Shift Interlock System Does not Release/Lock Correctly

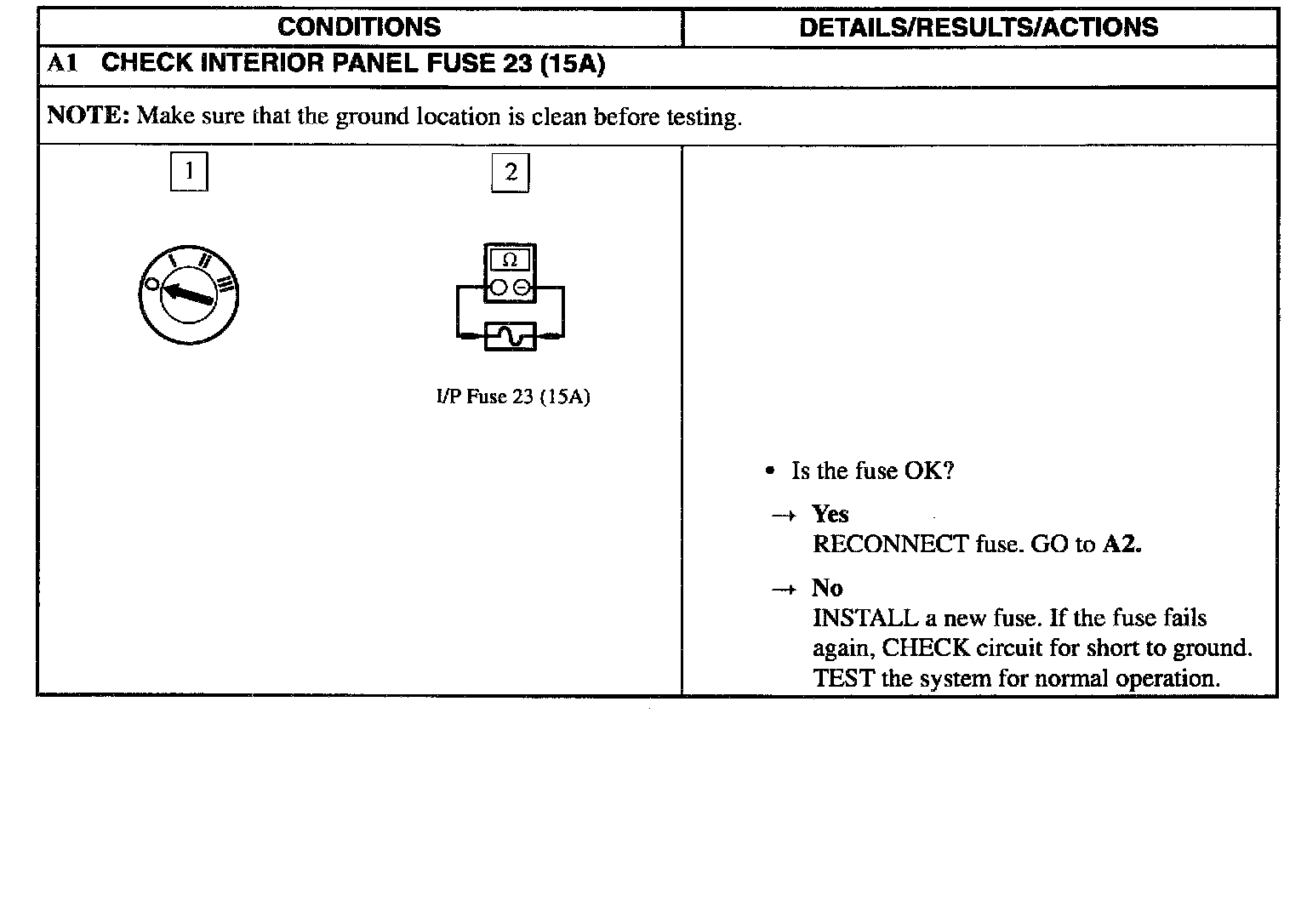

A1:

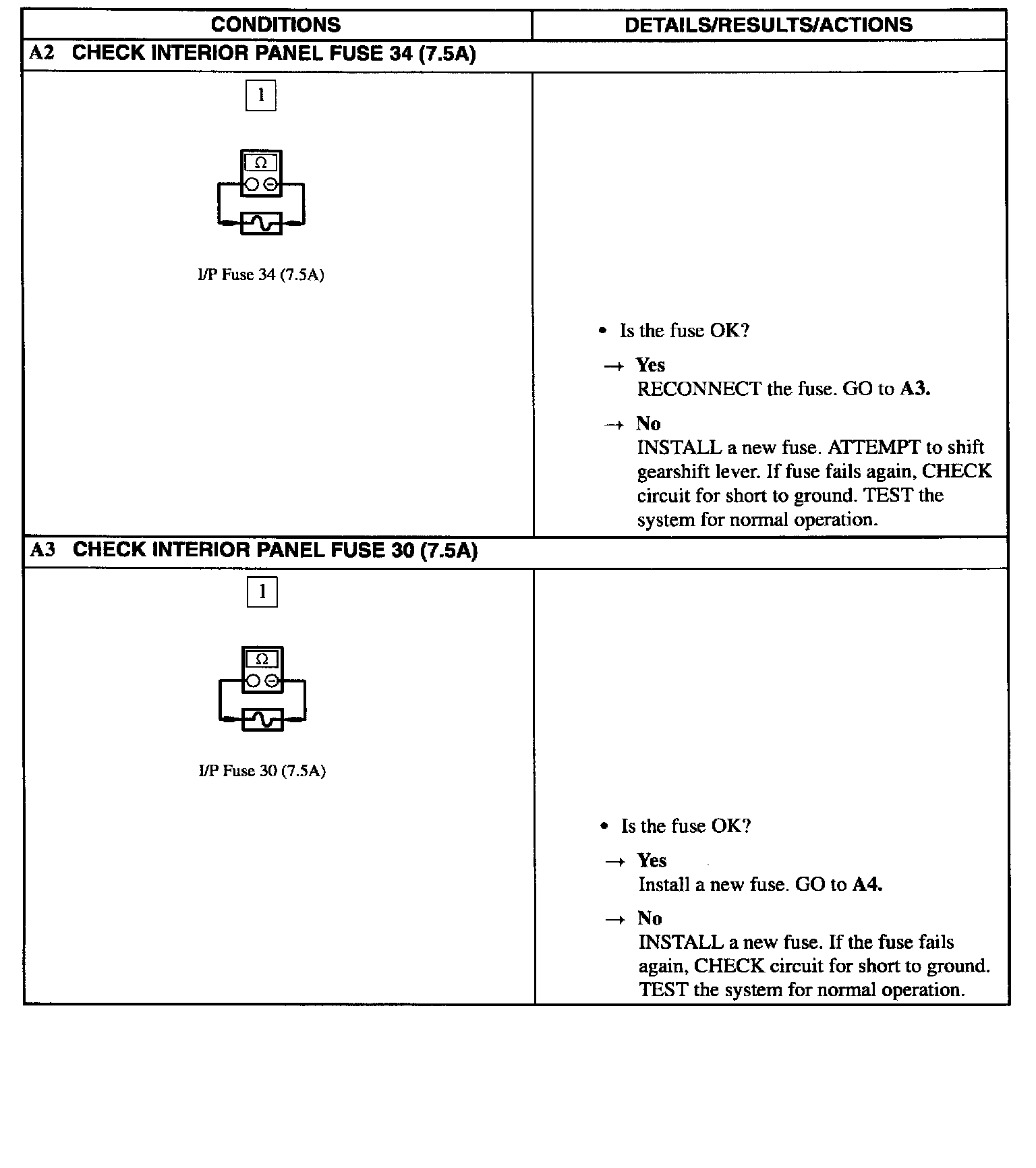

A2 - A3:

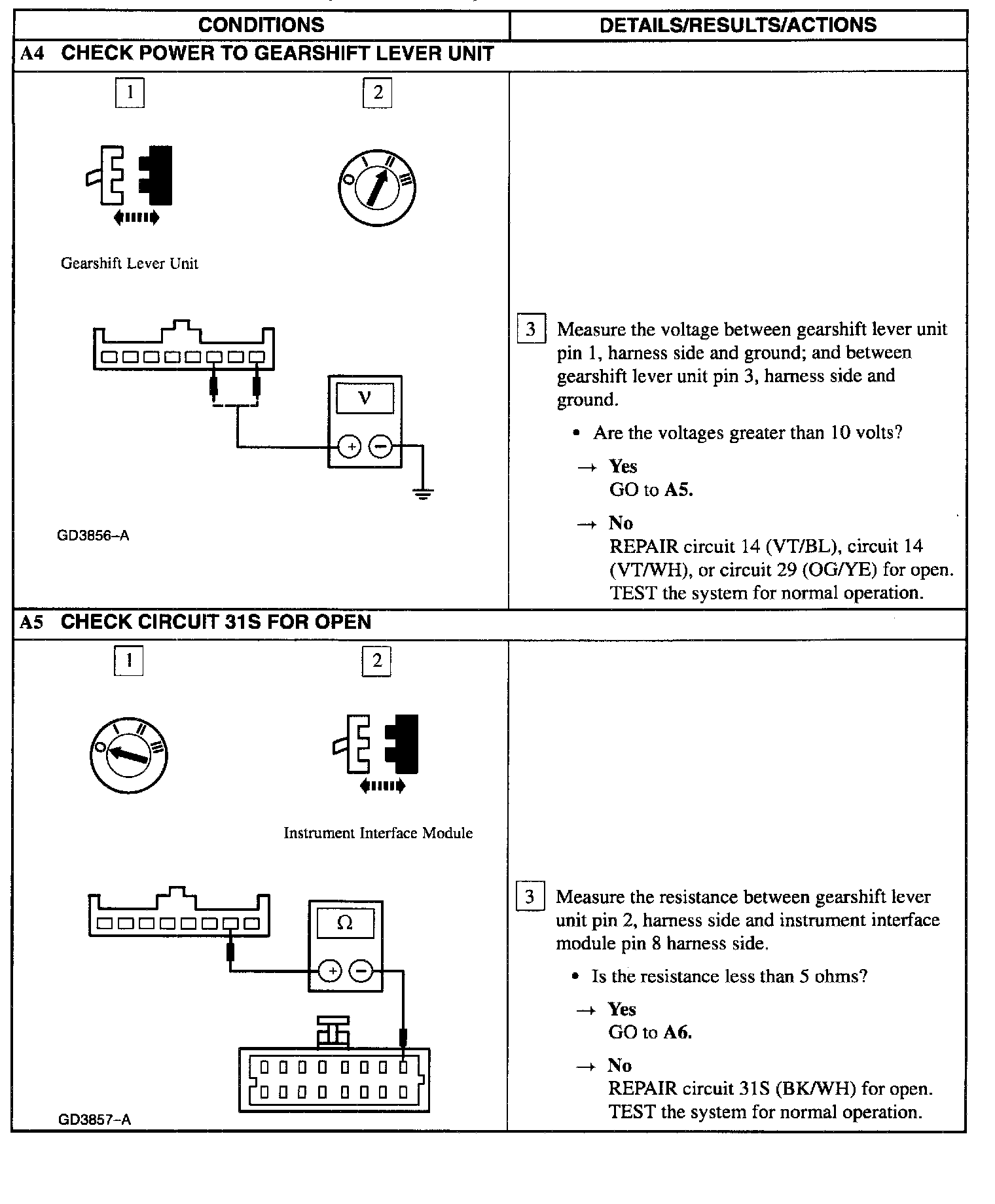

A4 - A5:

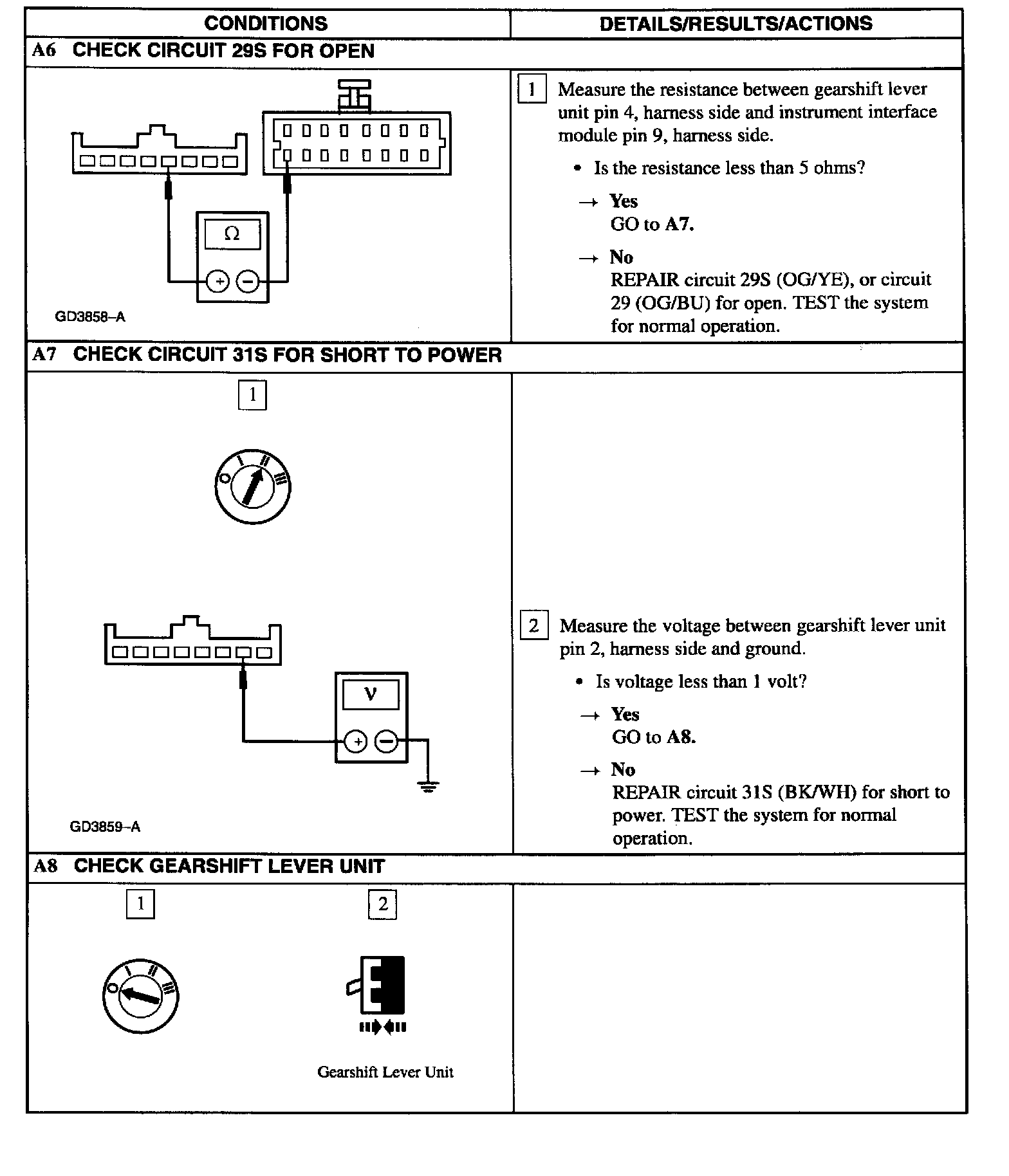

A6 - A8:

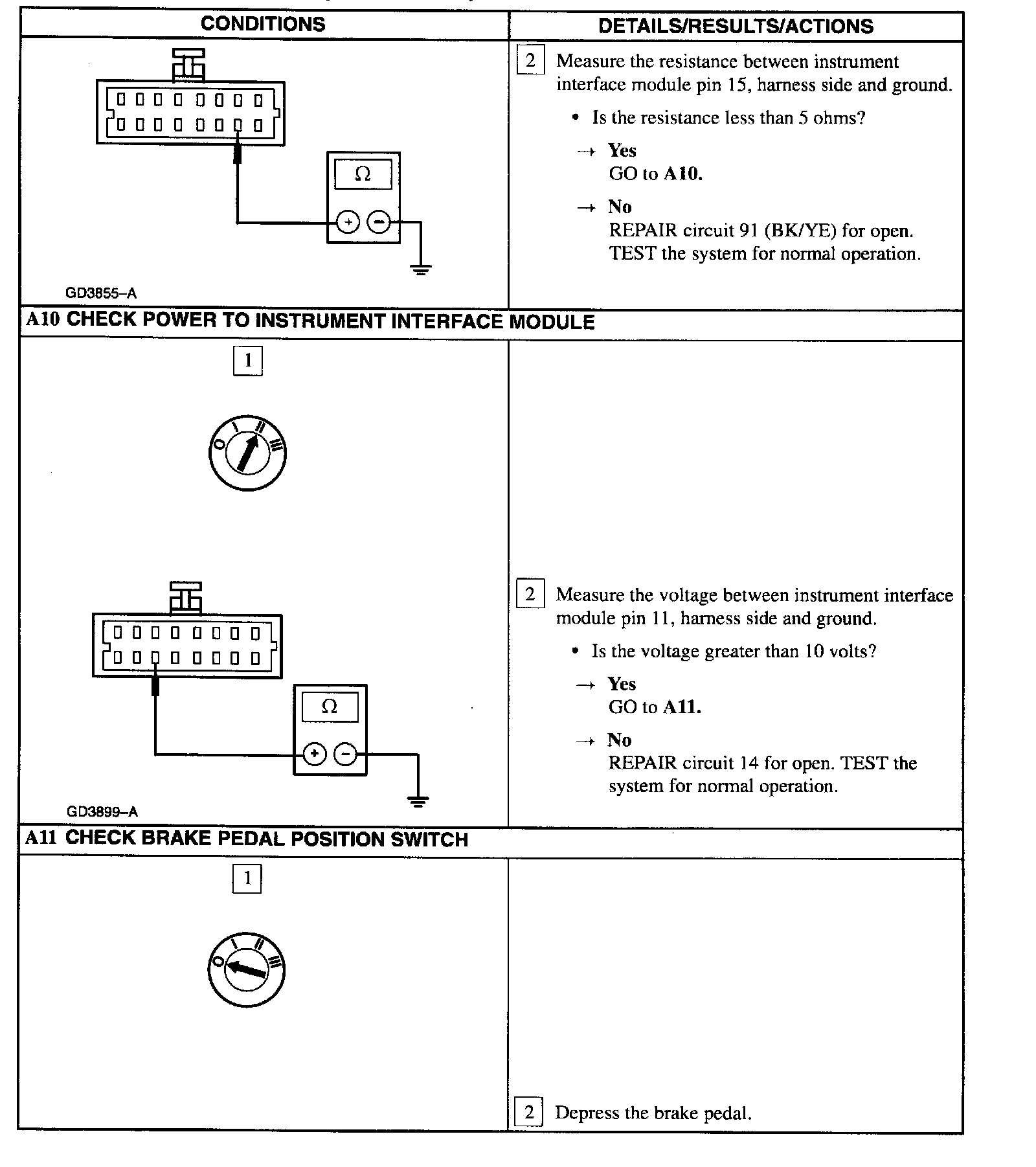

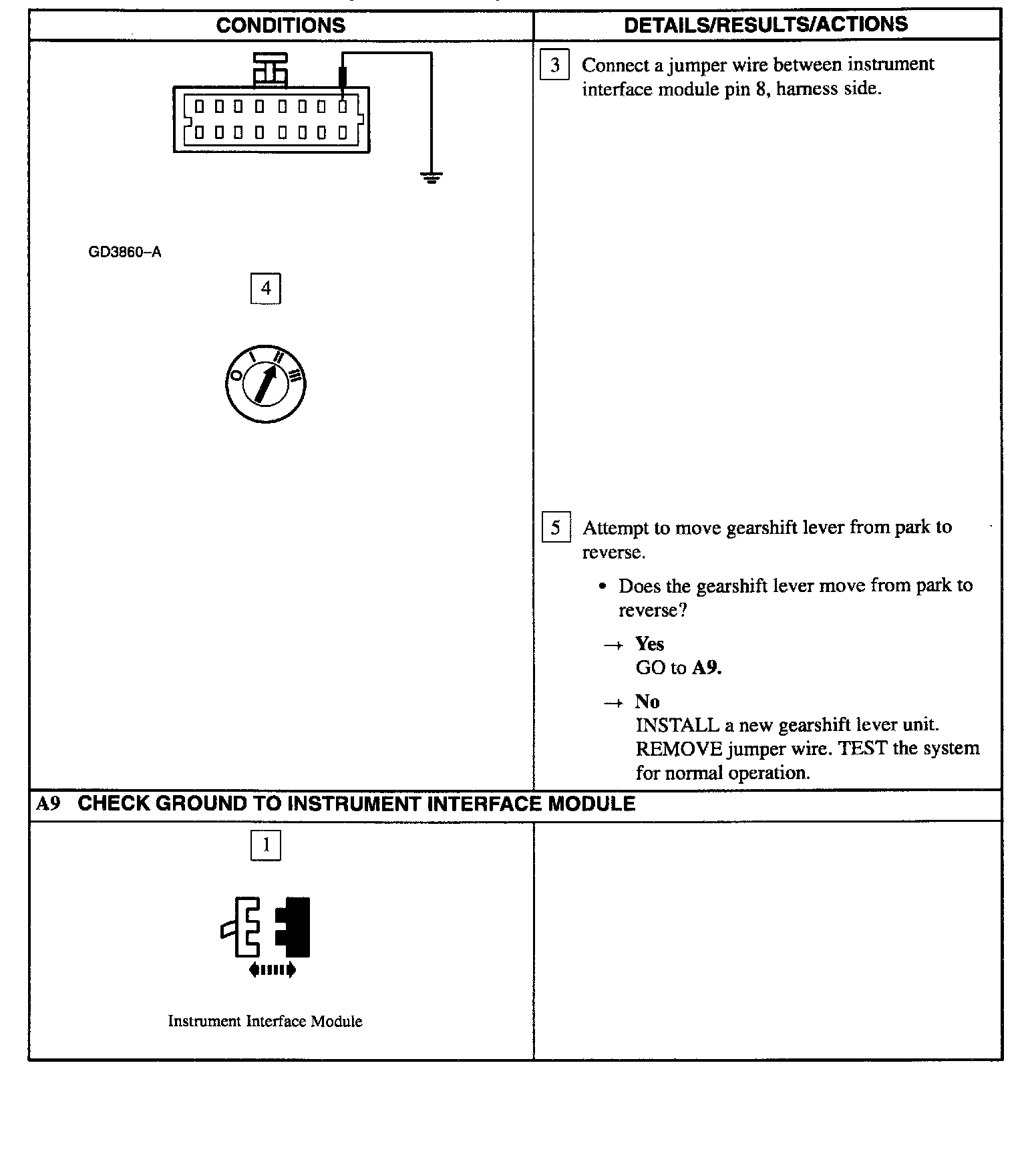

A8 - A9:




A9 - A11:

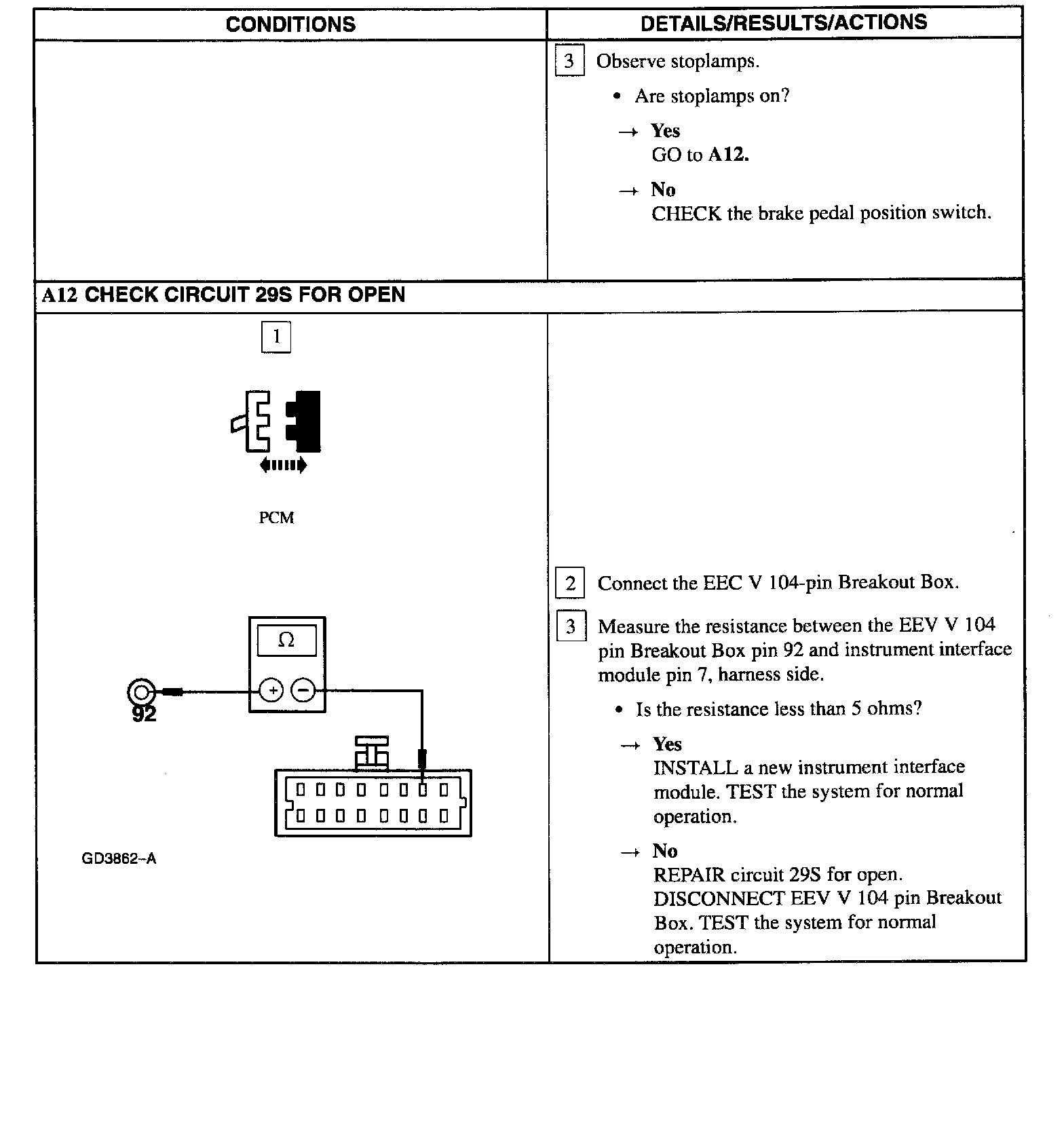

A11 - A12:





PINPOINT TEST A: THE SHIFT INTERLOCK SYSTEM DOES NOT RELEASE/LOCK PROPERLY
